Basic information
| Connection | DIN 11850-1, row 1, DN50 (52,0 mm/1,5 mm) |
| Material | stainless steel 1.4301 (AISI 304) |
| Working pressure | 0–10 bar |
| Working temperature | –10 °C to 100 °C |
| Sanitation temperature | 120 °C |

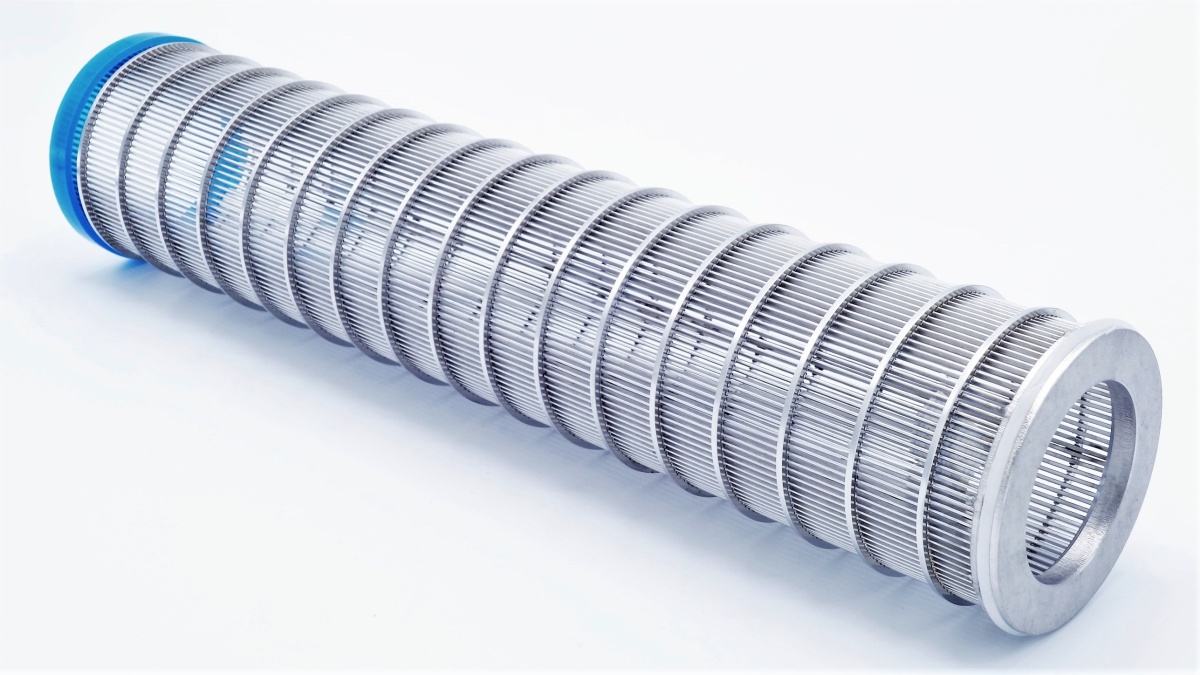

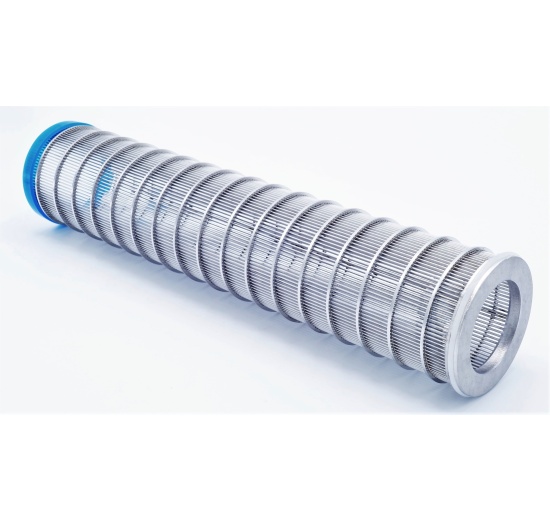

| Filter | slotted sieve, diameter 0,1 mm |
| We recommend buying spare parts for the tubular filter |
https://www.indcom.cz/en/spare-gasket-for-cover-of-tubular-filter-dn50-silicone-vmq
https://www.indcom.cz/en/spare-gasket-for-inner-tubular-filter-dn50-silicone-vmq
https://www.indcom.cz/en/spare-o-ring-for-inner-tubular-filter-dn50-silicone-vmq
Application area
The filter is used for the separation of hop sludge during the cooling of the wort. The filter can be used in the dairy to separate coarse impurities from milk.
