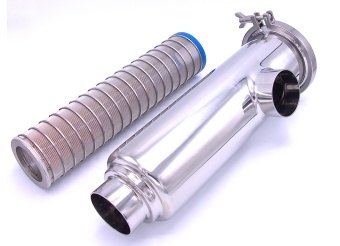

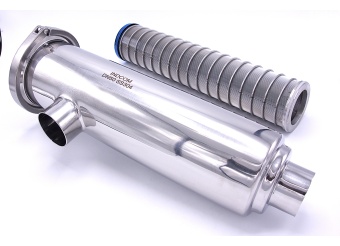

Tubular filter, inlet/outlet connection welded

The connection can be adjusted according to the customer's wishes.

1 body of the tubular filter - 4pcs types of filtration slotted sieve: Spare parts for stainless steel tubular filter DN50

You can buy 1pc of the offered wort filter with a sieve 0.1/0.3/0.55/0.8mm and buy another sieve separately.

connection: DIN 11850-1
material: stainless steel 1.4301 (AISI 304)
working pressure: 0–10 bar
working temperature: –10 °C to 100 °C
sanitation temperature: 120 ° C

The filter is used for the separation of hop sludge during the cooling of the wort. It can also be used in the dairy industry to separate coarse impurities from milk.

THE PRICE OF THE FILTER INCLUDES 1 PC OF STAINLESS STEEL INTERNAL SIEVE - SO YOU CAN ALWAYS CHOOSE A SIEVE ACCORDING TO YOUR NEEDS FOR THE FILTER.

ALL INTERNAL SIEVES FOR A GIVEN TYPE OF FILTER (DN50 OR DN65) ARE THE SAME DIMENSIONS, THE DIFFERENCE IS ONLY IN THE DIAMETER OF THE HOLES.

IF YOU NEED TO ORDER THE INTERNAL SIEVE SEPARATELY, YOU CAN FIND IT IN SPARE PARTS FOR TUBULAR CORNER FILTERS
