Basic information
| Standard | DIN 32676 - clamp ferrule 268 mm, pipe DIN11850 |
| Material | SS stainless steel 1.4301 (AISI 304) |
| Pressure | max.8 bar |
| Connection | welded, DN250 |

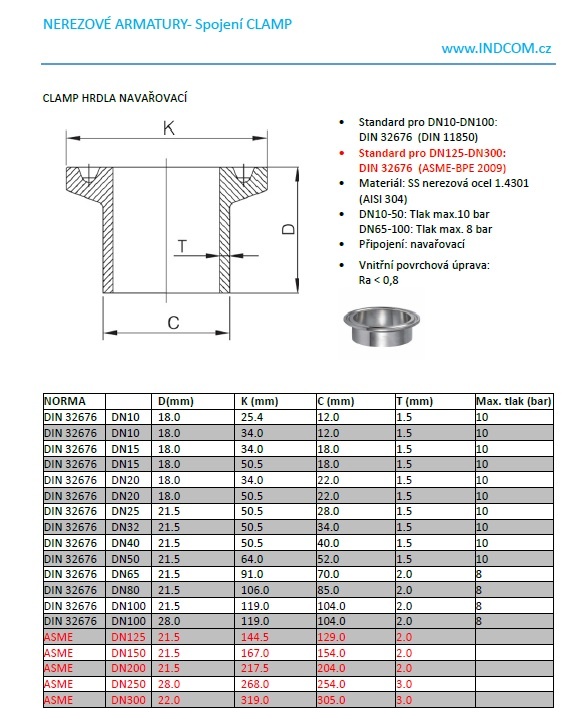

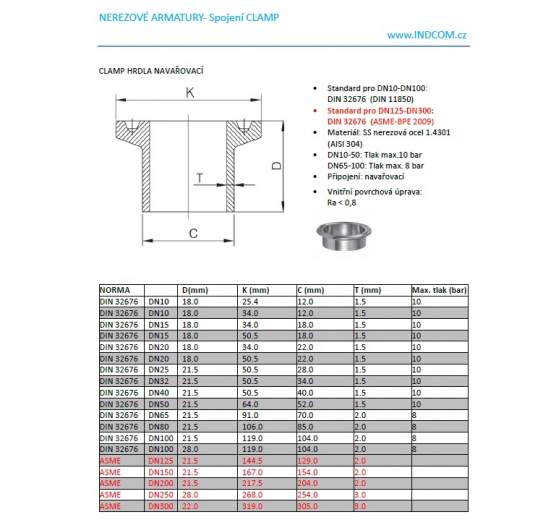

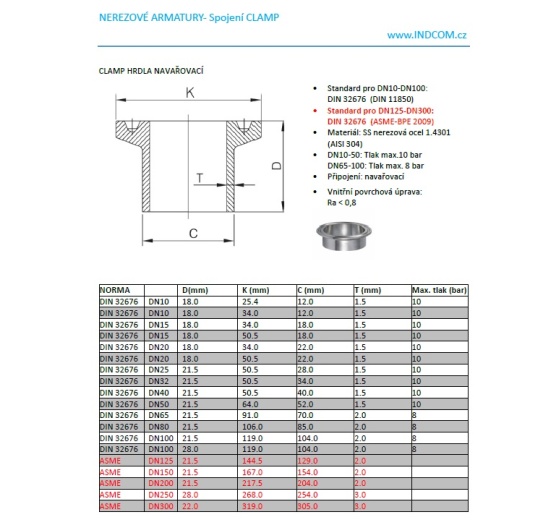

Dimensions
- see data sheet
- ID (mm): 248
- OD (mm): 254
- t (mm): 3
Application areas
Wineries, breweries, the dairy industry, the beverage industry, and food production are widely used in pharmacy, etc.
