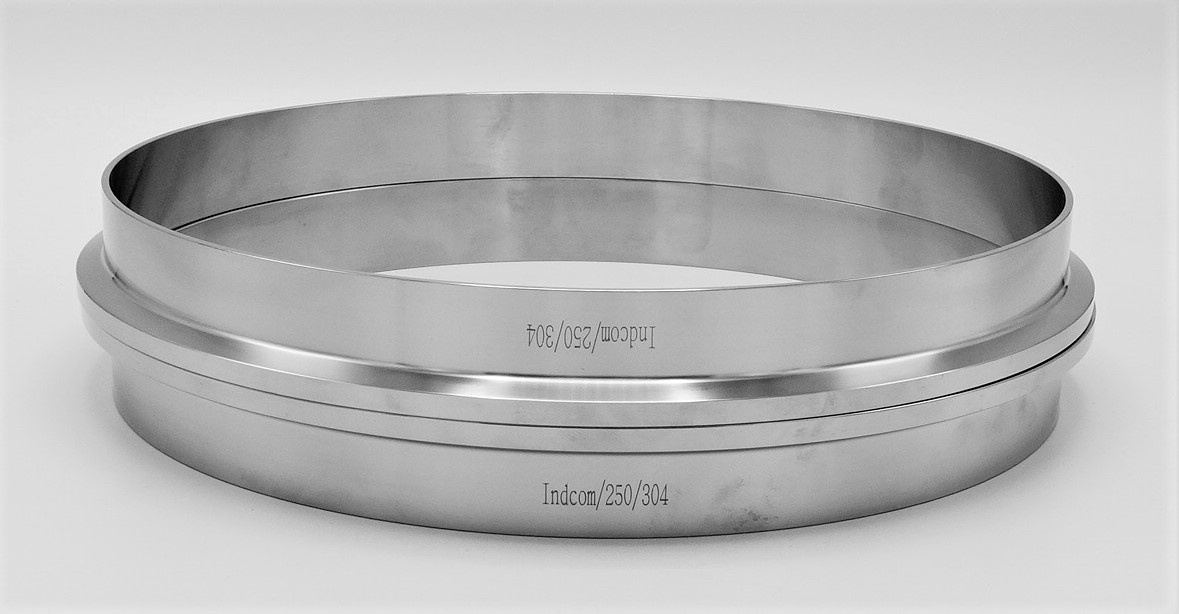

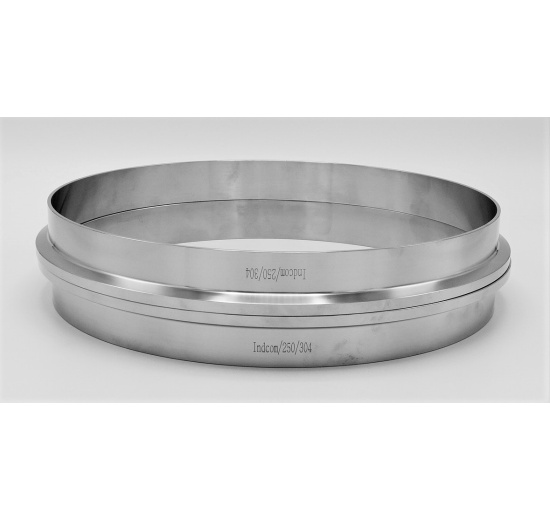

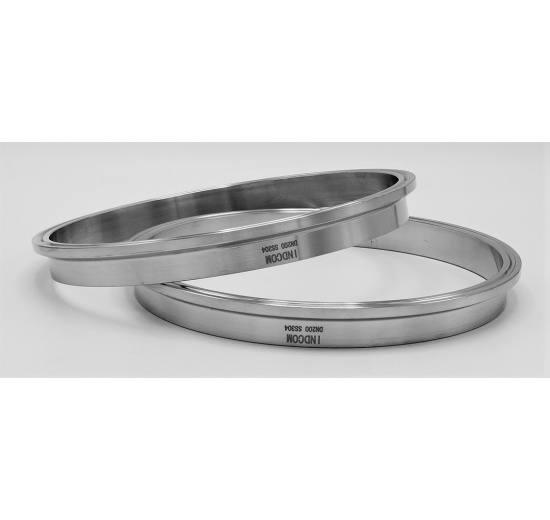

Basic information
- Standard: DIN 32676 - clamp ferrule 268 mm, pipe DIN11850
- Material: SS stainless steel 1.4301 (AISI 304)
- Pressure: max. bar
- Welded part DIN 11850, DN250 (10")

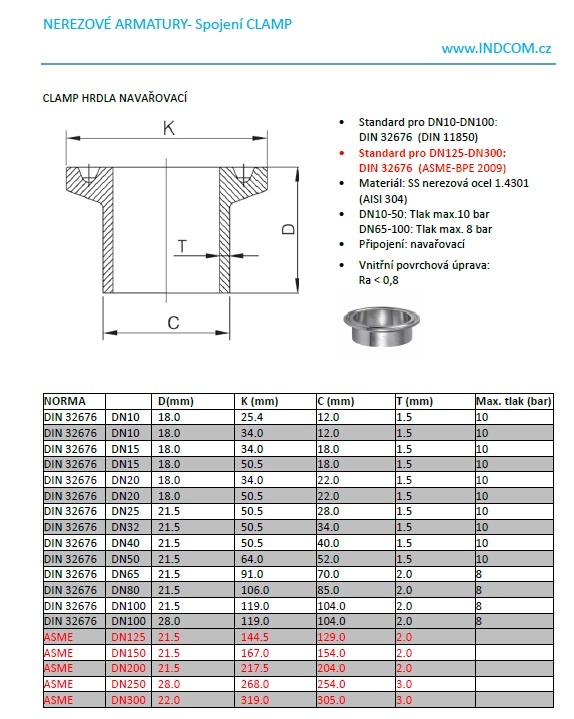

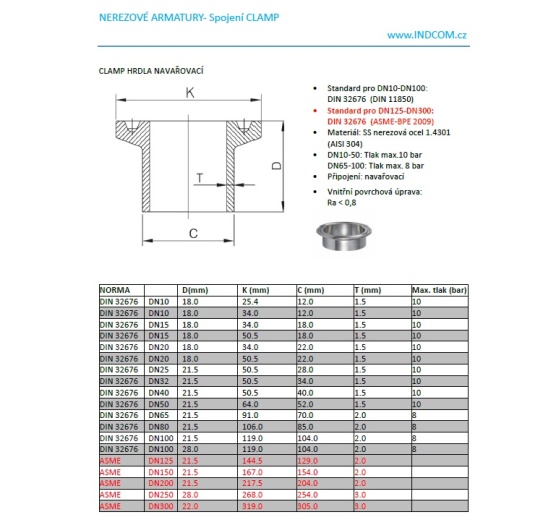

Dimensions
- ID: 248 mm
- OD: 254 mm
- Thickness of side: 3 mm
- Clamp collar 268 mm
- High: 21,5 mm
Application areas
Intended for applications in winemaking, brewing, the food and beverage industry, the dairy industry, refrigeration, water management, the chemical industry, etc.
Material certificate EN 10204 3.1 available upon request.
- CLAMP system (CLAMP connection) enables quick and precise assembly and disassembly,
- easy expansion of the system with new components,
- a major advantage of the CLAMP system is easy sanitation.
- Standard for DN10–DN100: DIN 32676, pipe DIN 11850
- Standard for DN125–DN300: DIN 32676 (ASME-BPE 2009)
Compatible accessories
Heavy Duty CLAMP I. DN250 (K268)
Properties: Standard: DIN 32676 Type: DN250, for CLAMP collar 268 mm Material: SS…
Blinding Cap for CLAMP Joint DN250
Properties: Standard: DIN 32676, DN250 Material: stainless steel 1.4301 (AISI 304)…
