Basic information
| Type | 2/2 without voltage closed (NC) |
| Valve type | indirectly controlled |
| Thread connection | G1/2" |
| Hole (Orifice) | 6 mm |
| Working pressure | 0 to 0.4 MPa (0-4 bar) |
| Max. working pressure | Max.4 MPa(4 bar) |
| Application | Neutral gases, liquids |
| Liquid viscosity | ≤21 mm2/s |
| Medium temperature | –20 ℃~+130 ℃ |

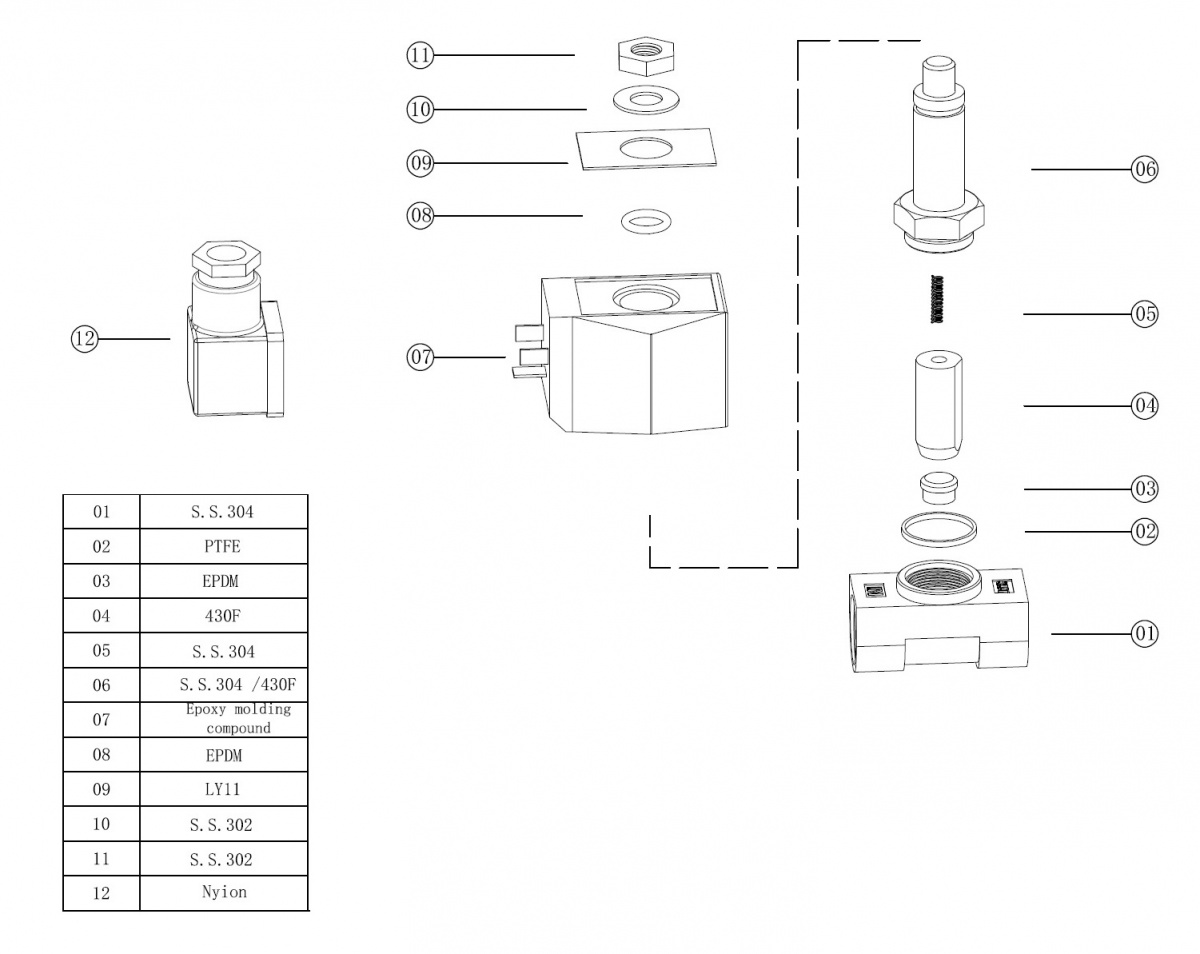

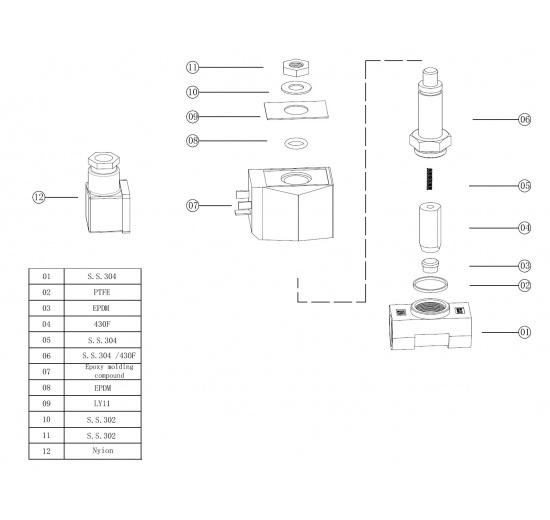

| Valve body material | AISI 304 |
| Gasket material | silicone (VMQ) |
| Voltage | DC24V |
| Ingress Protection | IP65 |

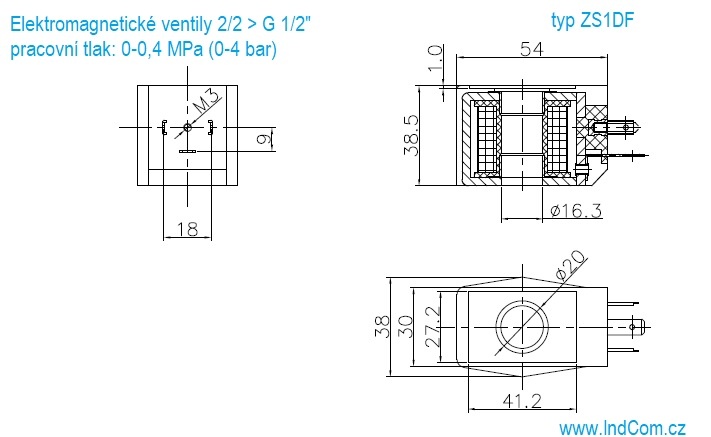

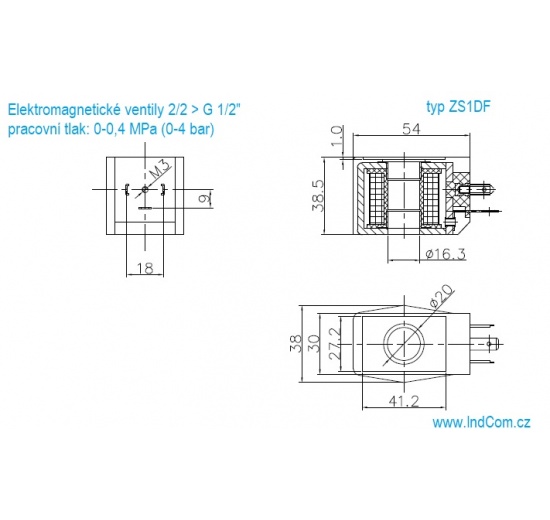

| Size | 53x26x85 mm |
Valves are supplied with coil and connector.
