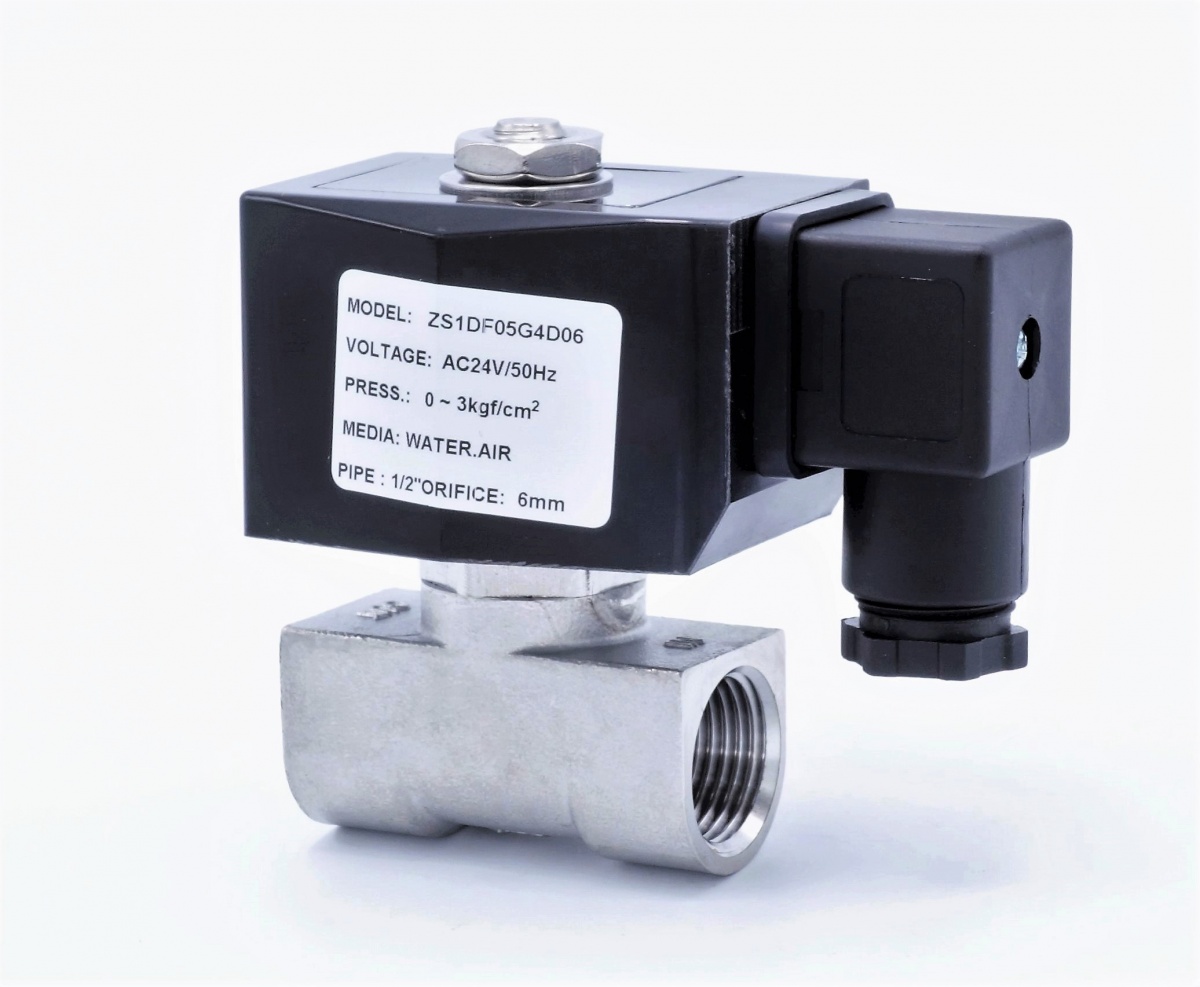

Basic information
| Type | 2/2 without voltage closed (NC) |
| Valve type | indirectly controlled |
| Thread connection | G1/2" |
| Hole (Orifice) | 6 mm |
| Working pressure | 0 to 0.35 MPa (0-3.5 bar) |
| Max. working pressure | Max.0.35 MPa(3.5 bar) |
| Application | Neutral gases, liquids |
| Liquid viscosity | ≤21 mm2/s |
| Medium temperature | –20 ℃~+130 ℃ |

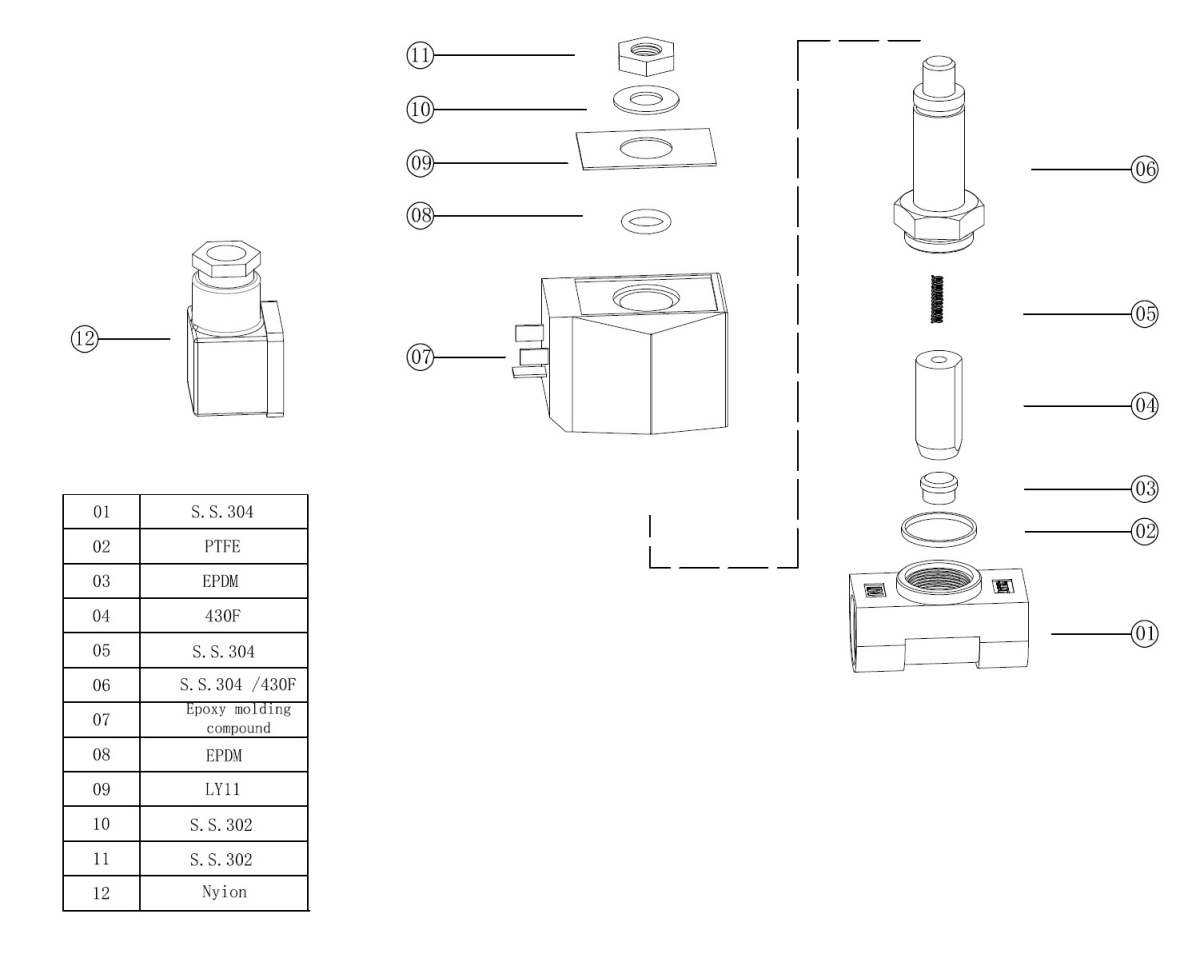

| Valve body material | AISI 304 |
| Seal material | silicone (VMQ) |
| Voltage | AC24V(50/60Hz) |
| Ingress Protection | IP65 |
| Power consumption | 20VA |
| Flow rate | |

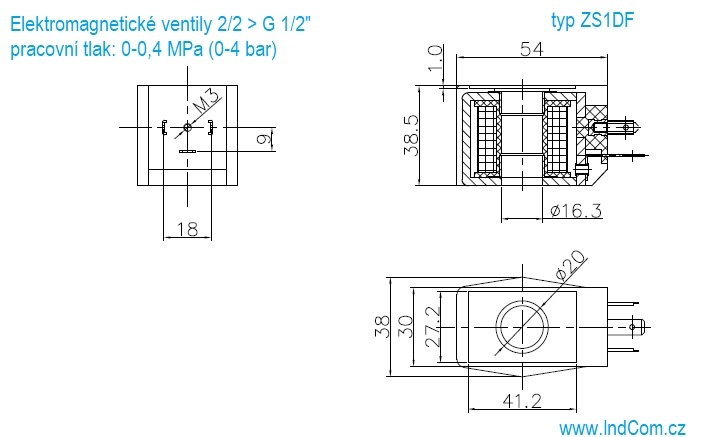

| Size | 53x26x85 mm |
Valves are supplied with coil and connector.
Compatible accessories
Coil for Stainless Steel Solenoid Valve 2/2, G 1…
Application: solenoid valves are used for closing, opening and controlling the flow of…
Price from
13,40 €
More from the category
G 1/2" - working pressure: 0-0,4 MPa (0-4 bar)

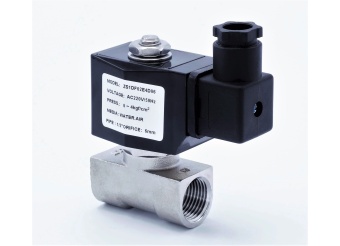

Stainless Steel Solenoid Valve 2/2, G 1/2" AC230V…
Application: solenoid valves are used for closing, opening and controlling the flow of…
Price from
43,49 €

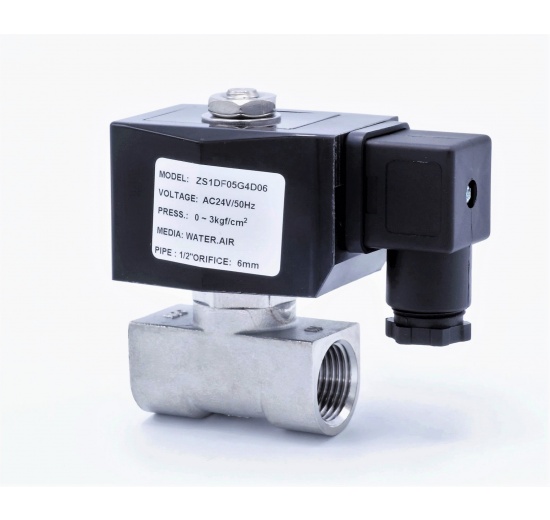

Stainless Steel Solenoid Valve 2/2, G 1/2" AC24V,…
