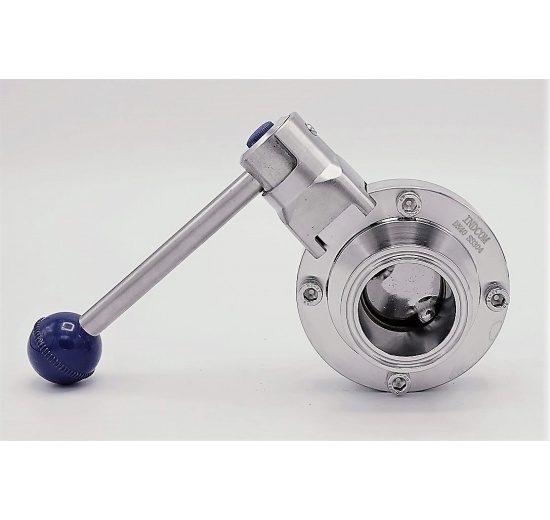

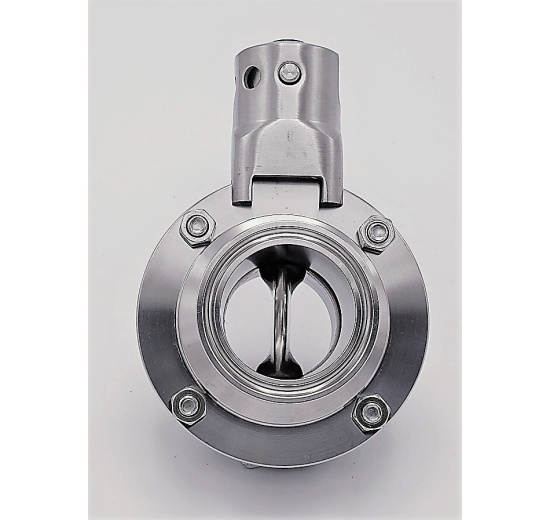

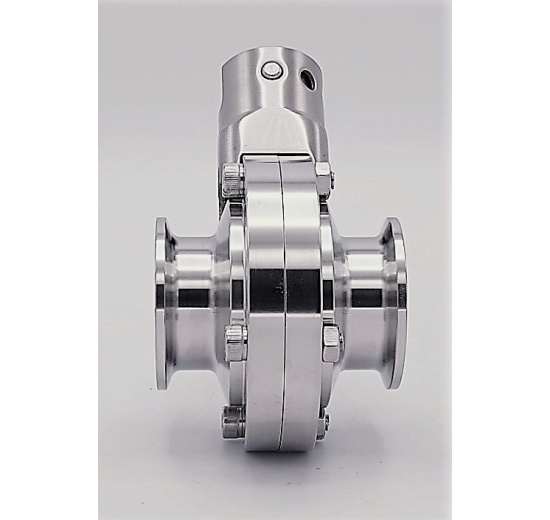

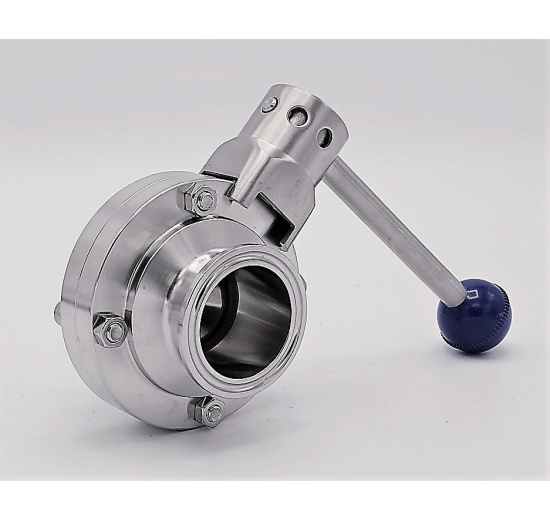

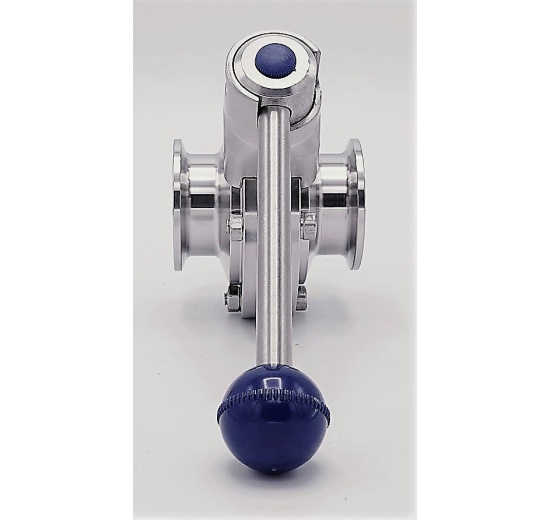

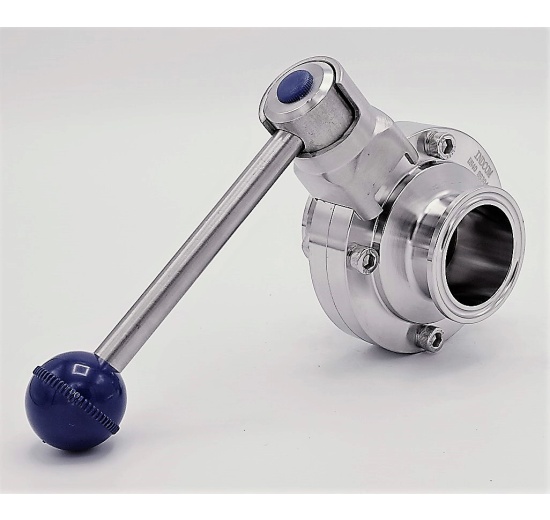

Basic information
| Tri clamp standard | DIN32676 |
| Type | clamp connection, DN40 (CLAMP collar 50.5 mm) |
| Working pressure | max.10 bar |
| Material | stainless steel 1.4301 (AISI 304) |
| Maximal working temperature | –10 °C/100 °C |
| Sterilization temperature | 150 °C (max. 20min) |
| Gasket | silicone |
| Control | manual |

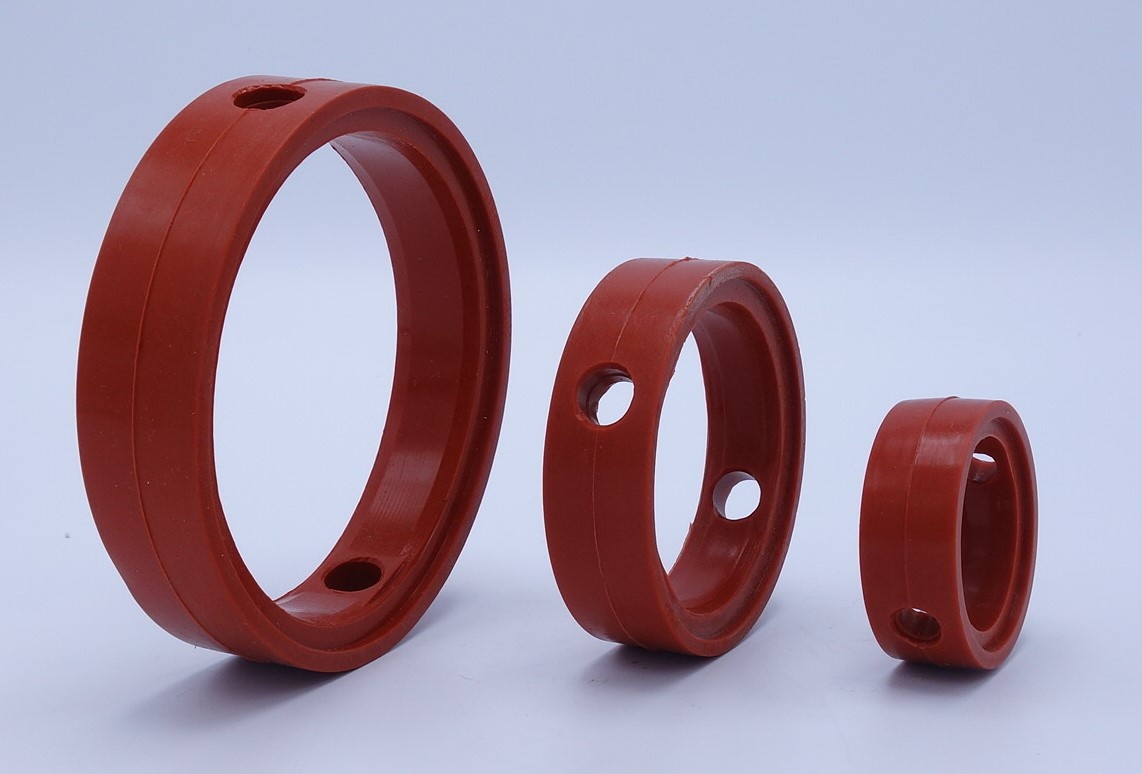

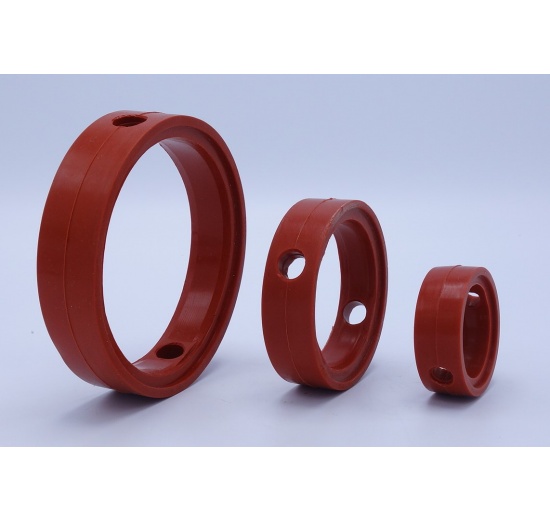

| Spare gasket | Těsnění silikon (VMQ)-nerezová přímá klapka navařovací a závitová DN32, CLAMP DN40 | DN35 |
Dimensions

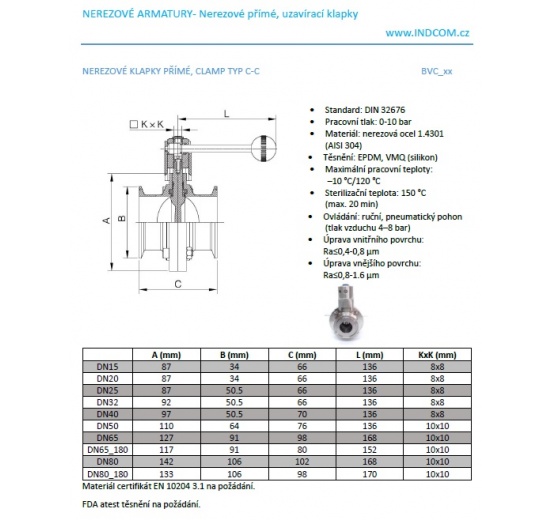

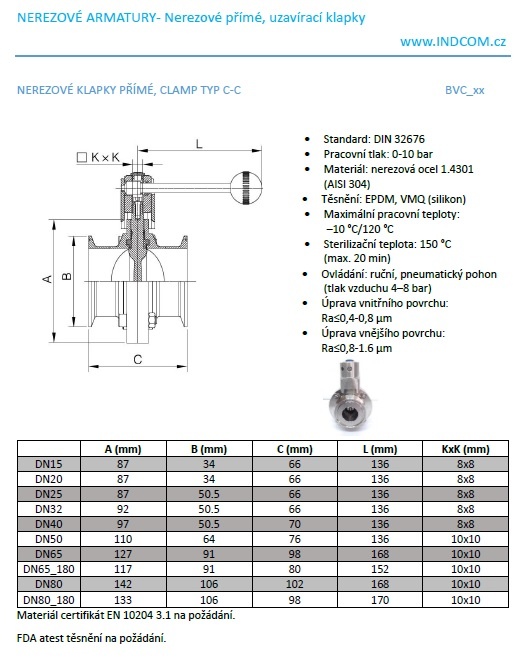

- see the data sheet
- ID (mm): 37
Fields of application
Wineries, breweries, dairy industry, beverage industry, food production, pharmaceuticals etc.
