Basic information
| Standard | DIN32676 |
| Working pressure | max.10 bar |
| Type | clamp connection C-C, DN20 (CLAMP collar 34 mm) |
| Material | stainless steel 1.4301 (AISI 304) |
| Maximal working temperature | –10 °C/100 °C |
| Sterilization temperature | 150 °C (max. 20min) |
| Gasket | silicone |
| Control | manual |

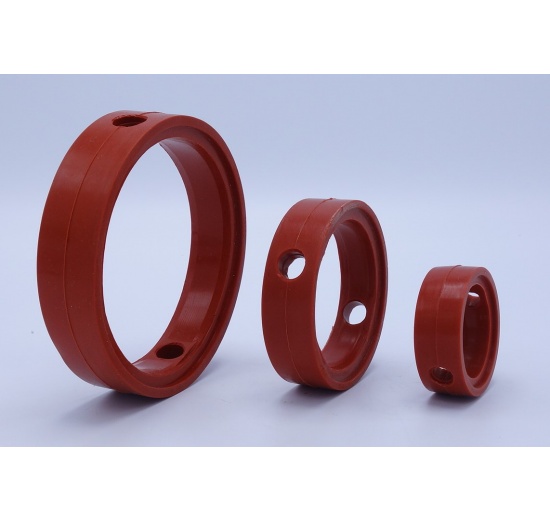

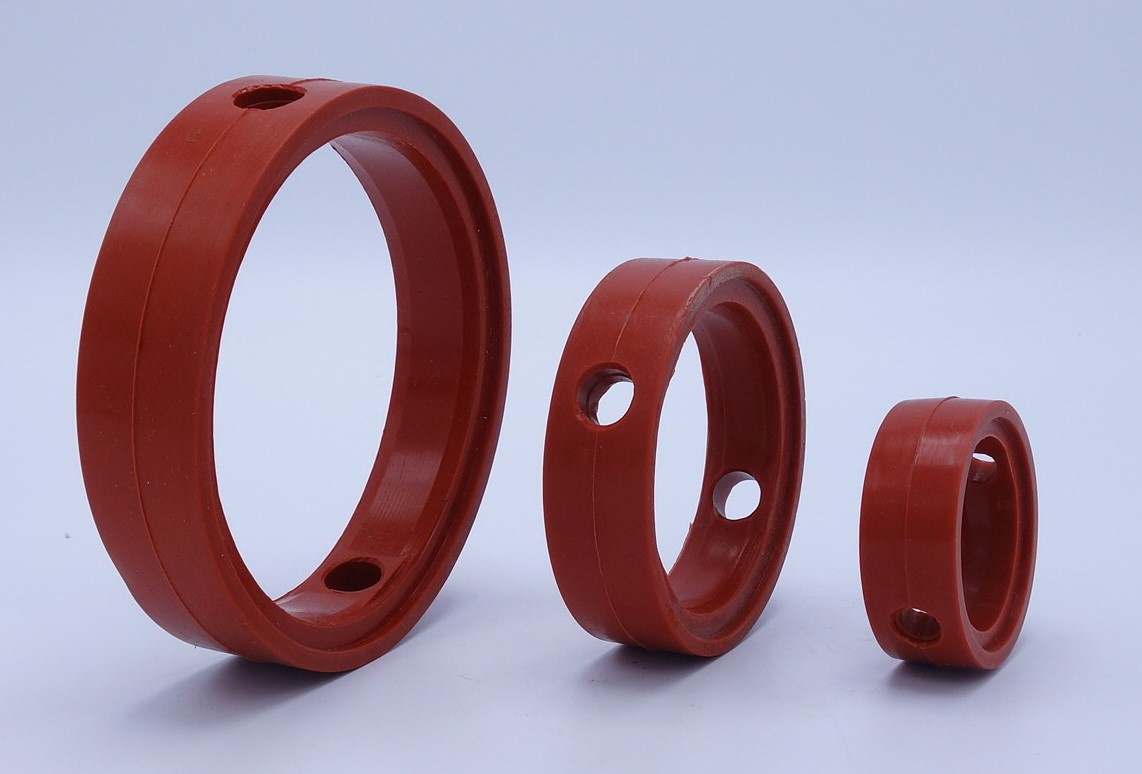

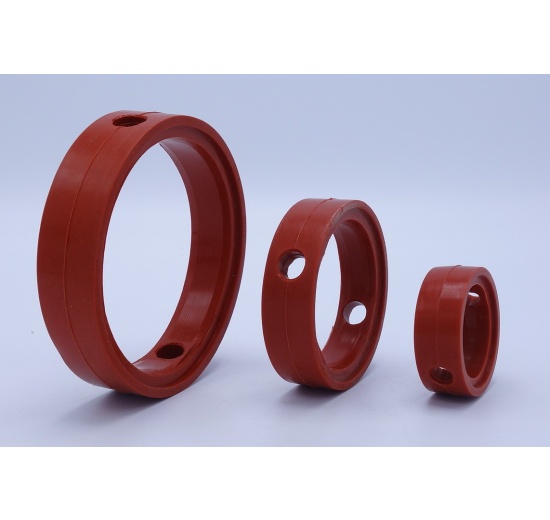

Spare gasket: Těsnění silikon VMQ - nerezová přímá klapka CLAMP DN15 a DN20, závitová, navařovací DN15 | DN19
Dimensions

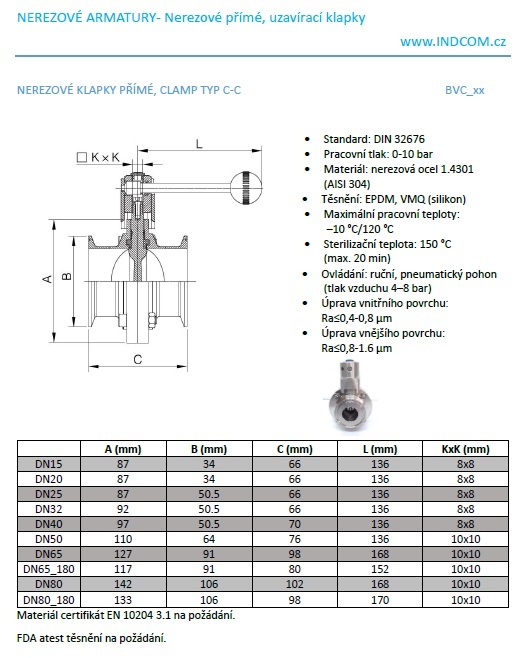

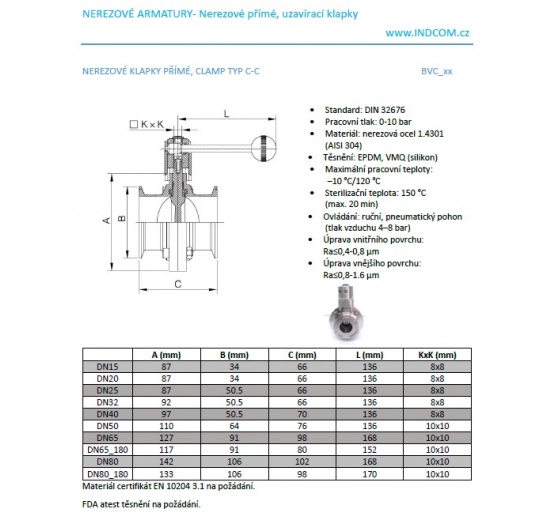

- see the data sheet
- Inner diameter: 25 mm
Fields of application
Wineries, breweries, dairy industry, beverage industry, food production, pharmaceuticals etc.
