Pneumatically operated valve with slant seat- 45°

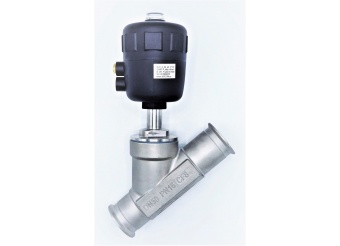

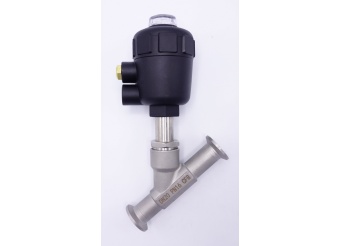

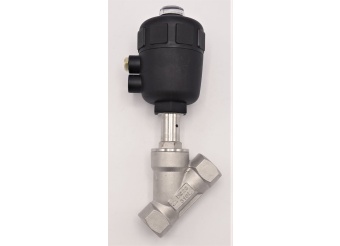

Pneumatically Operated Valve With A Slant Seat-45°, CLAMP Pneumatically Controled Valve With A Slant Seat-45°, G-thread

Pneumatic actuators are supplied without air exhaust and plastic plug-in fitting-section Pneumatic components

Properties:

• Type of valve: simple-action, in a quiet state, closed
• Connection: see individual valves (weld, CLAMP)
• Size of hole: see individual valves
• The pressure of medium: 0~1.6 Mpa (to 16 bar)
• The pressure of operating air: 0.3~1Mpa (3–10 bar)
• Material of the body of valve: see individual valves (SS -stainless steel AISI 304, CF8M)
• Material of actuator: Polyamid
• Gasket of seat: PTFE
• Gasket of coil: PTFE
• Gasket of piston: FKM (fluoroelastomer)
• temperature of medium: –10 °C~+180 °C
• temperature of environment:–10 °C~+60 °C
• Operating pressure of valve: see individual valves
• Designed for: water, liquid, water steam

SINGLE VALVE FUNCTIONING PRINCIPLE:

This type of valve is widely used in operations requiring a restart in a short period of time, with the advantage of its rapid and accurate response. The valve is opened by compressed air.

Areas of application of angled seat valve:

• Applications in the dairy, brewing, food, beverage and chemical industries
• Filling equipment for beer and other beverages.
• Printing and dyeing of textiles. Foaming equipment.
• For sewage treatment plant applications.
• Suitable for machine tools for refrigerant control.
• For laundries and dry cleaners (dosing detergent, water).

Note: A pilot valve must be purchased to operate the seat valve. You can find a suitable type in the section Pneumatic components
