Pneumatically Controled Valve With A Slant Seat-45°, G-thread

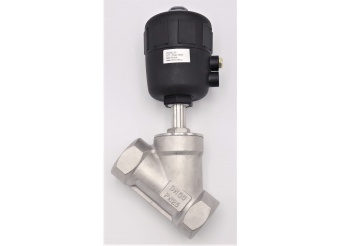

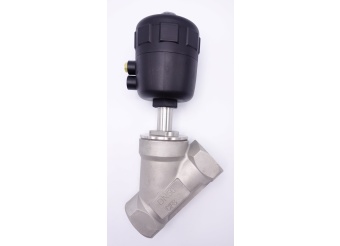

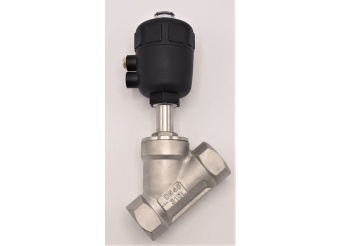

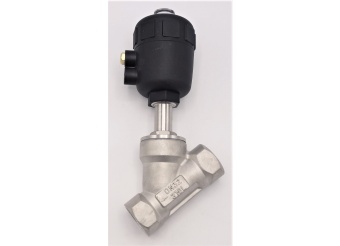

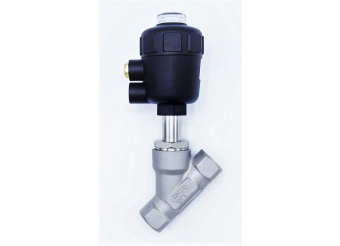

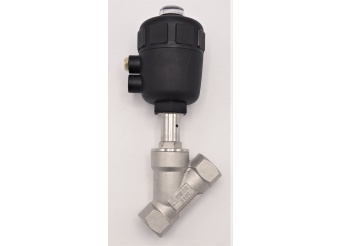

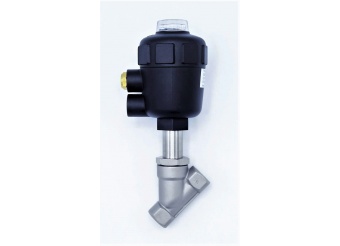

Pneumatically-operated Valves, Angle Seat - 45°, G-thread, Seal PTFE Pneumatically-operated Valves, Angle Seat - 45°°, G-thread, Seal PPL

A pilot valve must be purchased to operate the seat valve. Pneumatic actuators are supplied without air exhaust and plastic plug-in fitting - section Pneumatic components

Properities:

• Type of valve: simple-acting, in a quiet state, closed
• Connection: see individual valves
• Size of hole: see individual valves
• The pressure of medium: 0~1.6 Mpa (to 16 bar)
• The pressure of control air: 0.3~1Mpa (3-10 bar)
• Material of the body of valve: SS - stainless steel CF8M (responsible AISI316)
• Material of actuator: Polyamid
• Gasket of seat: PTFE
• Gasket of coil: PTFE
• Gasket of piston: FKM (fluoroelastomer)
• Temperature of medium: –10~+180 °C
• Temperature of environment: –10~+60 °C
• Viscosity: max 600 mm2/s
• Designed for water, liquid, water steam

SINGLE VALVE FUNCTIONING PRINCIPLE:

This type of valve is widely used in operations requiring a restart in a short period of time, with the advantage of its rapid and accurate response. The valve is opened by compressed air.

Application areas of Pneumatically controlled valve:

Wineries, breweries, dairy industry, beverage industry, food production, is widely used in pharmacy etc.
