Basic information
| Type | threaded G 1"- BSP |
| Pressure | 1.5 to 2.5 bar |
| Max. working temperature | 95 °C |
| Max. ambient temperature | 140 °C |
| Hole size | 1.3 mm |
| Pressure 1 bar-> Flow: 7.8 m3/h -> cleaning radius | 2.7 m |
| Cleaning angle | 360° |
| Material | stainless steel 1.4301 (AISI 304) |
| Ball diameter | 63 mm |
| Overall height | 86 mm |

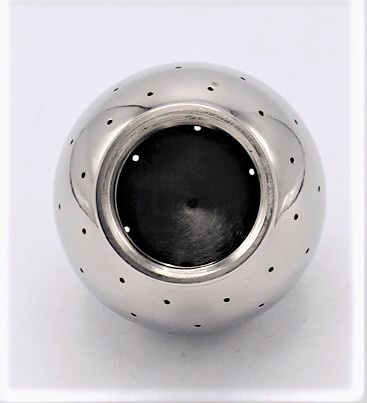

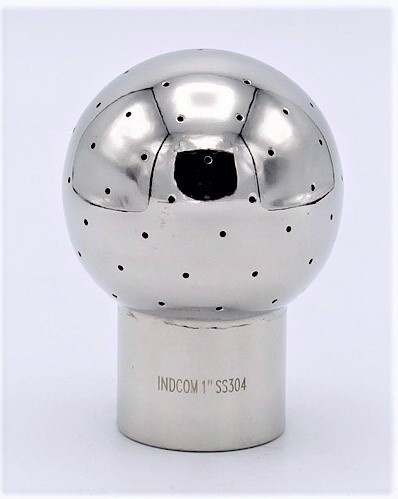

A fixed cleaning ball is suitable for applications with lower cleaning requirements. Tanks, containers, barrels, vats, molds, and pans.
More from the category
Fixed cleaning ball, threaded

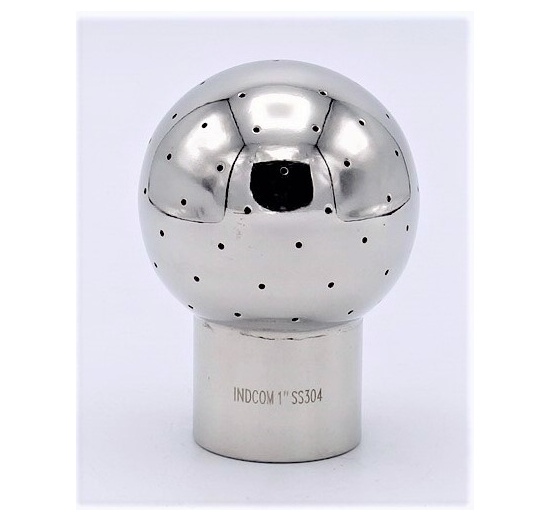

Fixed Cleaning Ball, Threaded 1”, cleaning radius…
Fixed Cleaning Ball, Threaded | 1”, cleaning radius: 2.7 m Type: threaded G 1"- BSP…
Price from
21,05 €

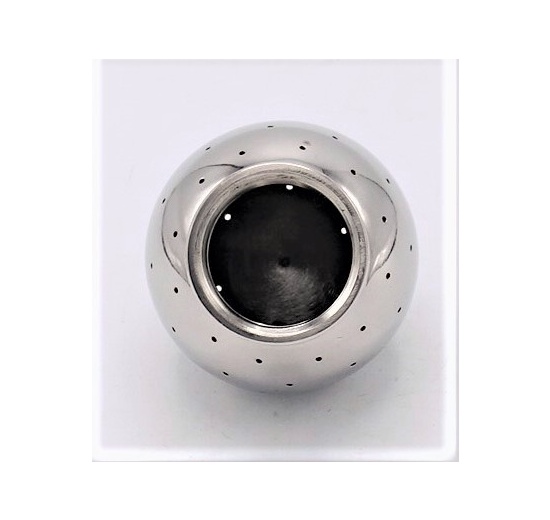

Fixed Cleaning Ball, threaded 1”
Properties: Type: threaded G 1"- BSP Pressure: 1.5 to 2.5 bar Maximal working…
Price from
21,05 €
Fixed cleaning ball, threaded 1/2”
Properties: Type: threaded BSP G 1/2" Pressure: 1.5 to 2.5 bar Maximal surrounding…
Price from
18,26 €

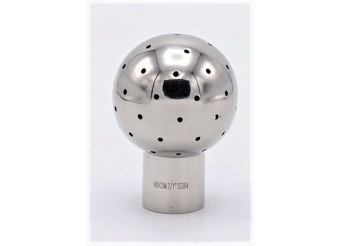

Fixed Cleaning Ball, Threaded 1/2”, cleaning…
