Basic information

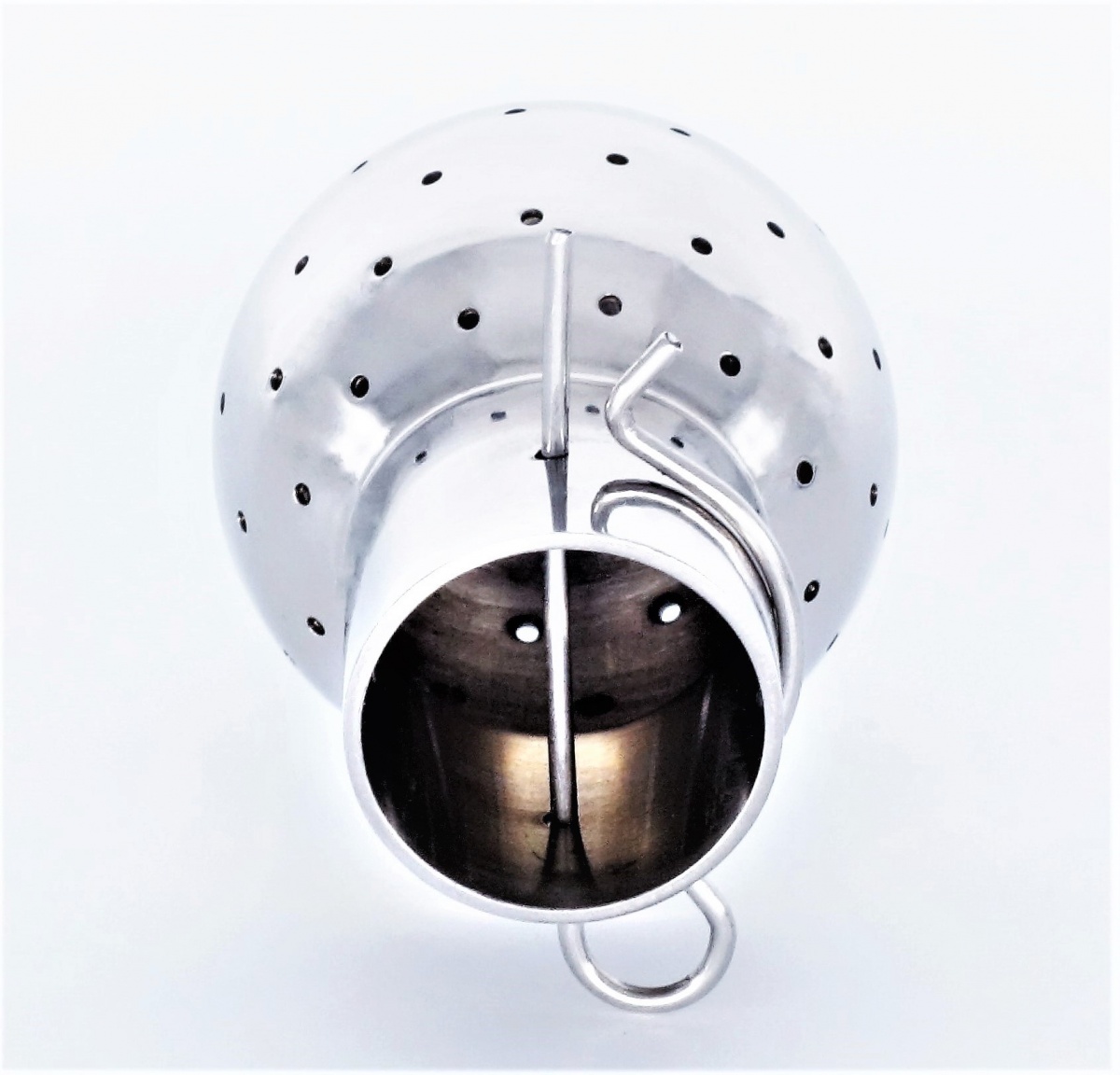

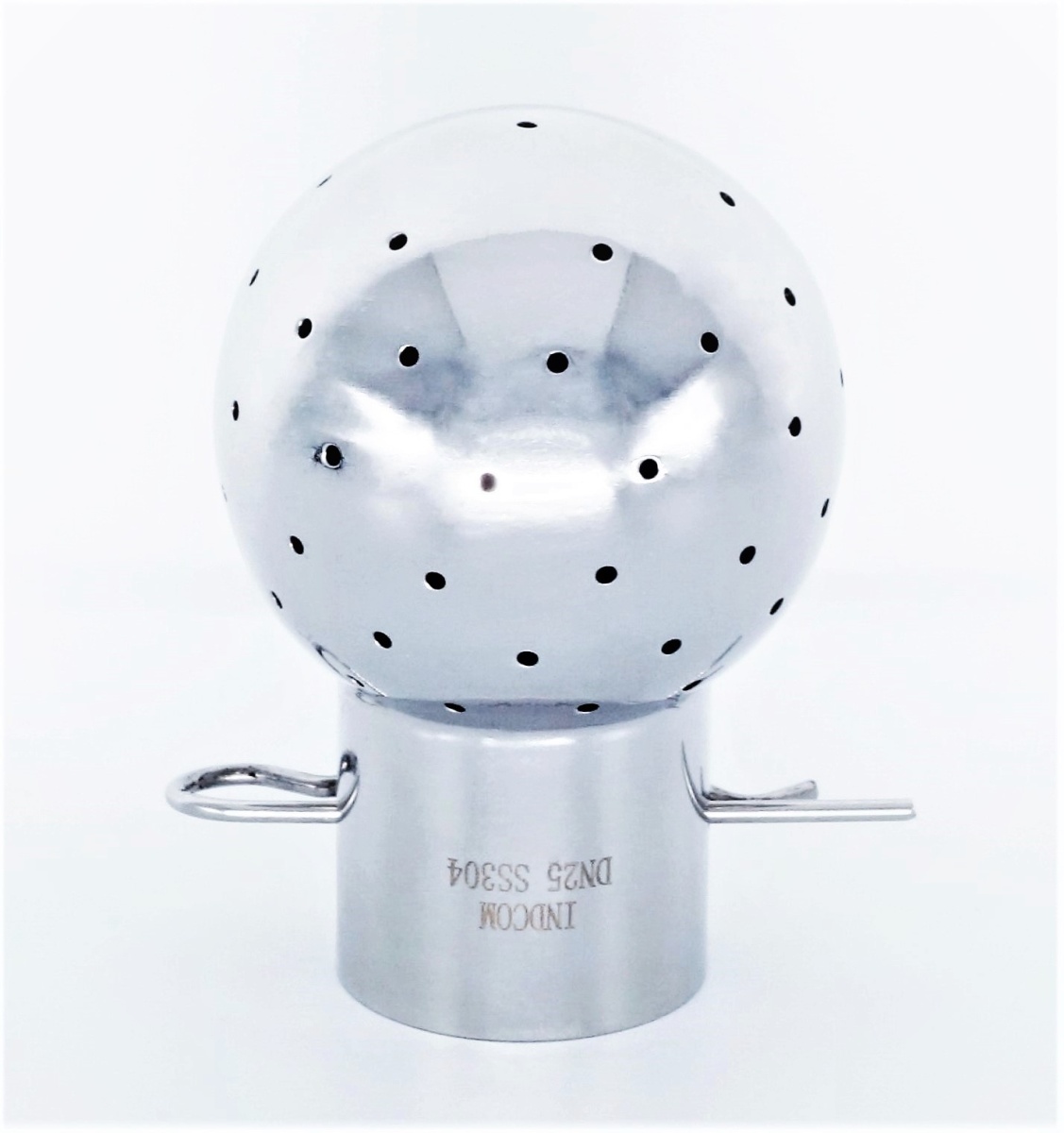

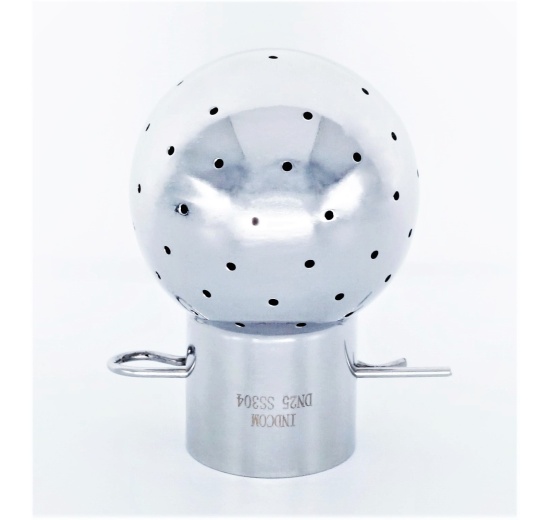

Fixed Cleaning Ball, on Split Pin, Ball Diameter 53 mm | 28.2/32 mm, hole 1,6 mm
| Connection | inner/outer tube diameter 28.2/32 mm, on split pin |
| Max. working temperature | 95 °C |
| Max. ambient temperature | 140 °C |
| Cleaning radius (at a pressure of 1 bar) | 4.2 m (7.1 m3 / h) |
| Hole size | 1,6 mm |
| Cleaning angle | 360° |
| Material | stainless steel 1.4301 (AISI 304) |
| Ball diameter | 53 mm |
| Overall height | 76 mm |
Cleaning ball connection diameters
| Inner diameter (mm) | 28.2 |
| Outer diameter (mm) | 32 |
| Wall thickness (mm) | 1.75 |
The fixed washing head is suitable for applications with a lower cleaning requirement. Tanks, containers, barrels, vats, molds and pans.
More from the category

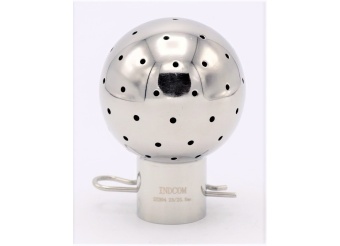

Fixed Cleaning Ball, on Split Pin, Ball Diameter 53 mm
