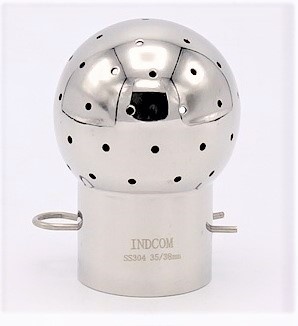

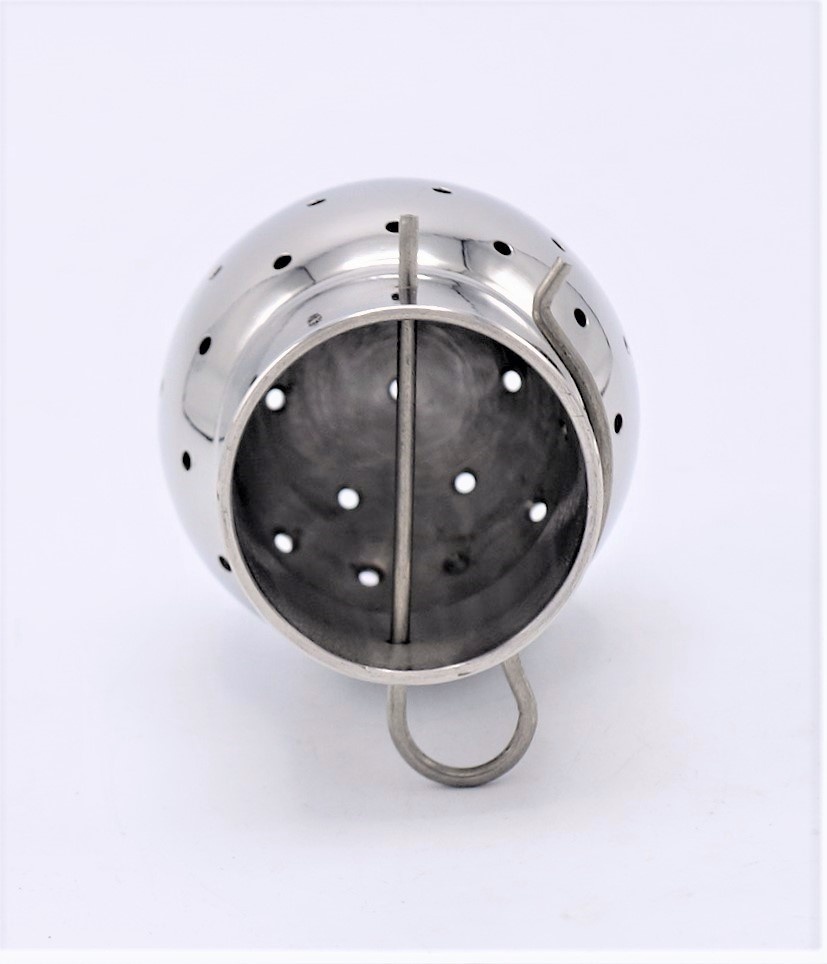

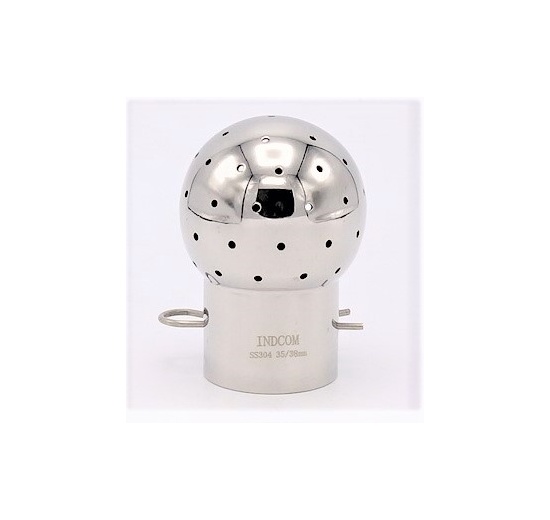

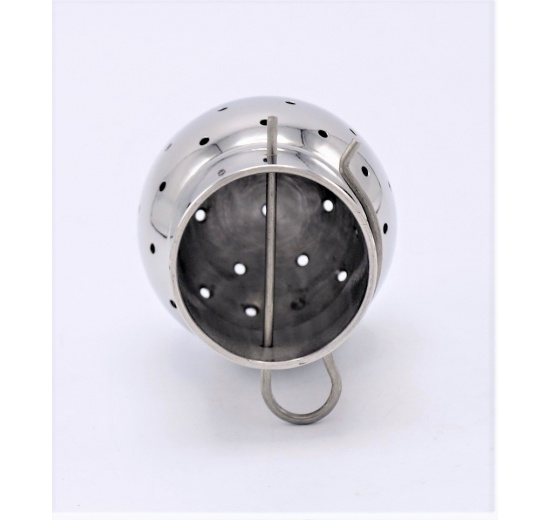

Basic information
| Connection | inner / outer pipe diameter 35/38 mm, on split pin |
| Max. working temperature | 95 °C |
| Max. ambient temperature | 140 °C |
| Cleaning radius | 2,3 m (at a pressure of 1 bar 6.3 m3 / h) |
| Cleaning angle | 360° |
| Hole size | 1.6 mm |
| Flow at 1 bar pressure | 6.3 m3 / h |
| Material | stainless steel 1.4301 (AISI 304) |
| The ball diameter | 53 mm |
| Overall height | 75 mm |
Diameters of the fixed cleaning ball
| Inner diameter (mm) | 35 |
| Outer diameter (mm) | 38 |
| Wall thickness (mm) | 1.5 |
The fixed washing head is suitable for applications with a lower cleaning requirement. Tanks, containers, barrels, vats, molds and pans.
