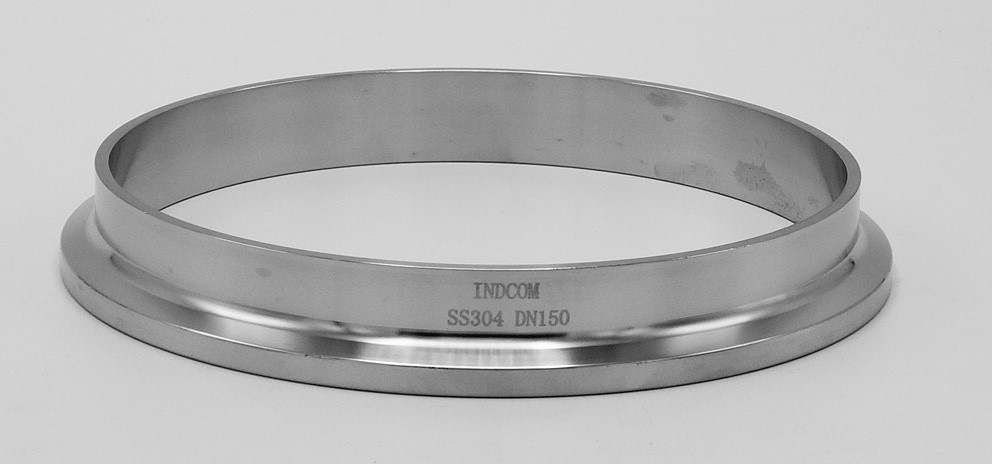

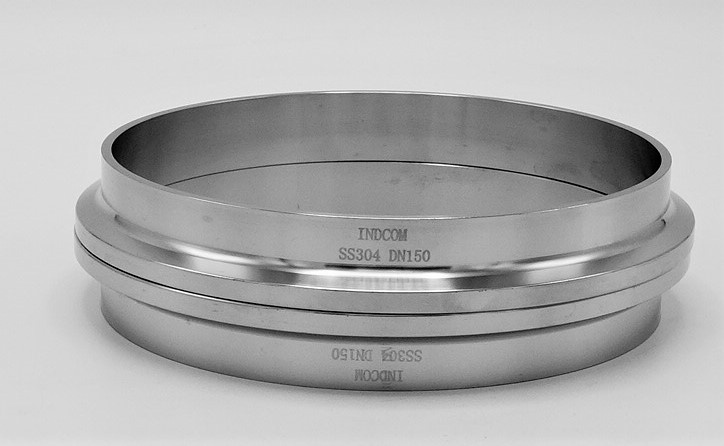

Basic information
| Standard | ASME- clamp ferrule 167 mm, pipe DIN11850 |
| Material | SS stainless steel 1.4301 (AISI 304) |
| Pressure | max. bar |
| Connection | welded, DN150 |
Dimensions

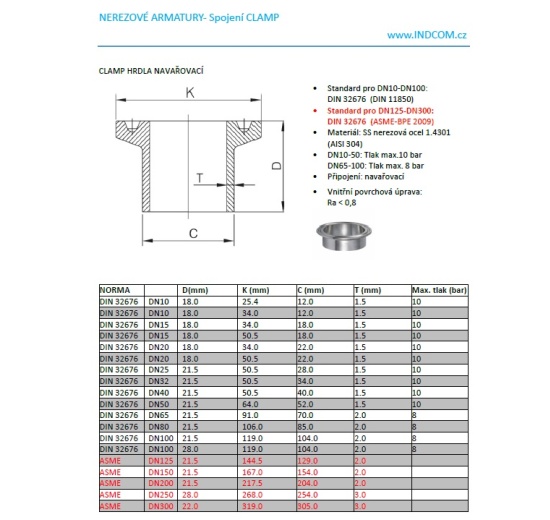

- see datasheet
- ID: 149 mm
- OD: 154 mm
- The thickness of side: 3 mm
- clamp ferrule 167 mm
Application areas
Intended for applications in winemaking, brewing, the food and beverage industry, the dairy industry, refrigeration, water management, the chemical industry, etc.
Material certificate EN 10204 3.1 available upon request.
- CLAMP system (CLAMP connection) enables quick and precise assembly and disassembly,
- easy expansion of the system with new components,
- a major advantage of the CLAMP system is easy sanitation.
- Standard for DN10–DN100: DIN 32676, pipe DIN 11850
- Standard for DN125–DN300: DIN 32676 (ASME-BPE 2009)
Compatible accessories
Heavy Duty CLAMP I. ASME DN150 (K167)
Properties: Standard: DIN 32676 ASME Type: DN150, for CLAMP collar 167 mm Material: SS…

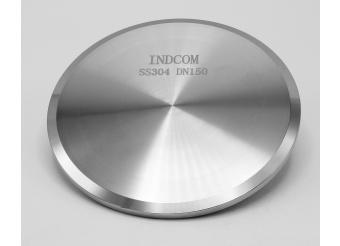

Blinding Cap for CLAMP Joint DN150
