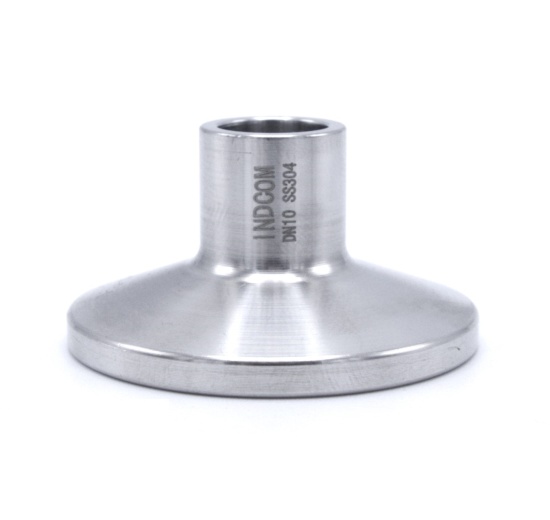

Basic information
| Standard | DIN 32676-clamp ferrule 34 mm, tube DIN11850 |
| Connection | welded, DN10 |
| Material | stainless steel - 1.4301 (AISI 304) |
| Working pressure | max.10 bar |
Dimensions

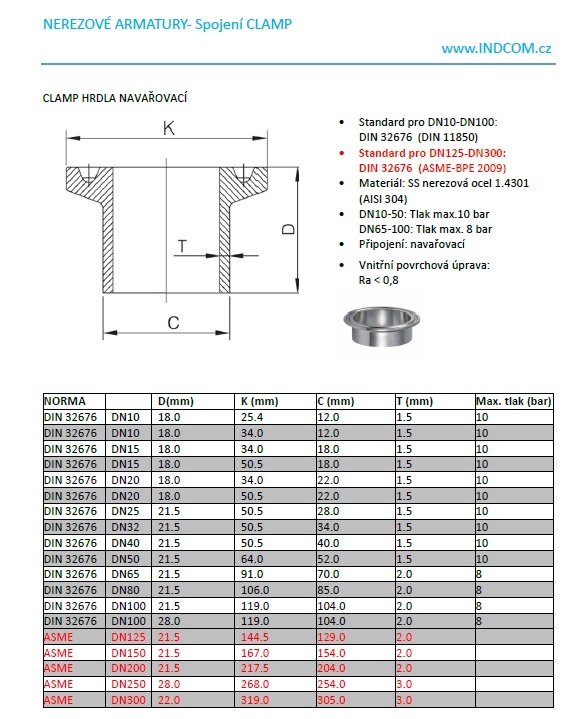

- refer to. the table in Annex
- diameter of clamp 34 mm
- inner diameter (mm): 9
- outer diameter (mm): 12
- wall thickness (mm): 1.5
Application area
Intended for applications in winemaking, brewing, the food and beverage industry, the dairy industry, refrigeration, water management, the chemical industry, etc.
Material certificate EN 10204 3.1 available upon request.

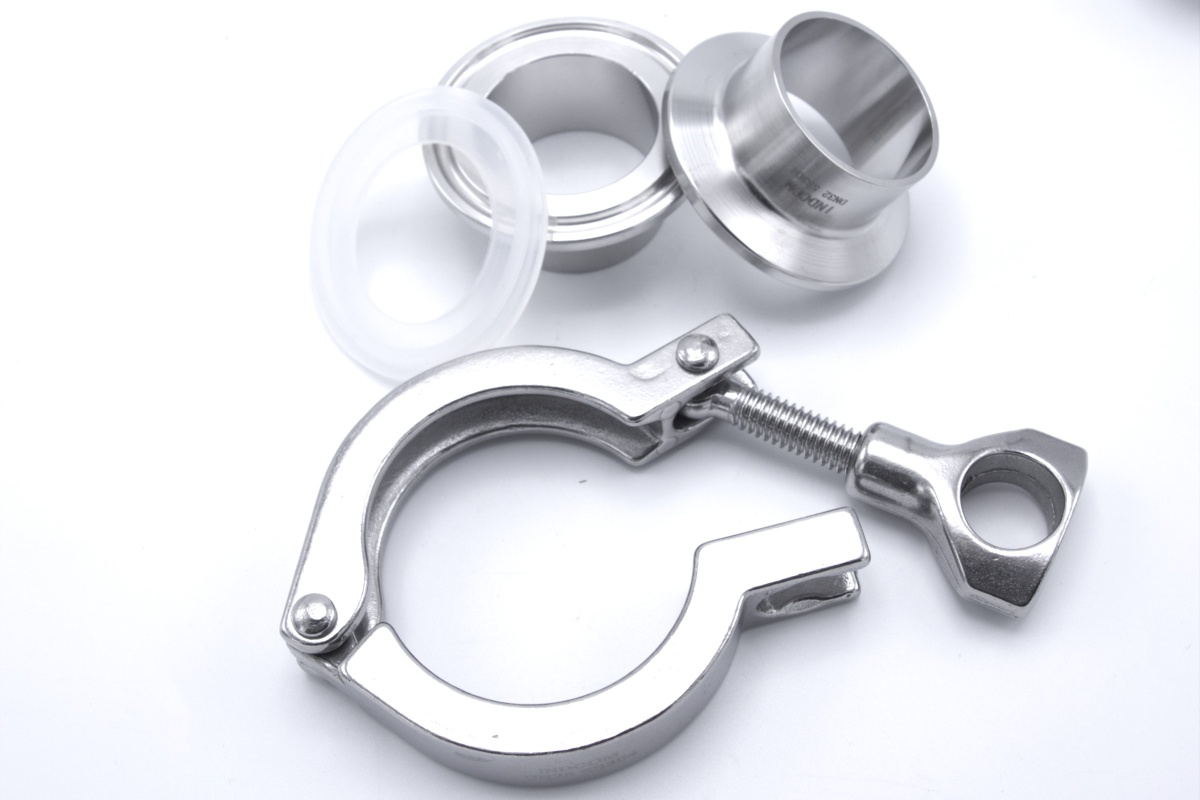

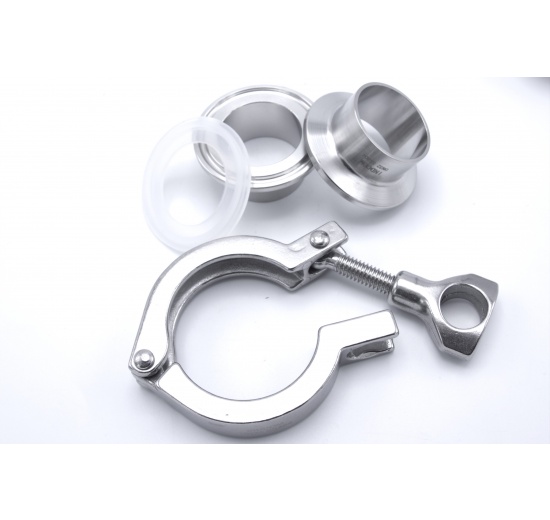

- CLAMP system (CLAMP connection) enables quick and precise assembly and disassembly,
- easy expansion of the system with new components,
- a major advantage of the CLAMP system is easy sanitation.
- Standard for DN10–DN100: DIN 32676, pipe DIN 11850
- Standard for DN125–DN300: DIN 32676 (ASME-BPE 2009)
Compatible accessories
Blinding Cap for CLAMP Joint DN10/15/20
Properties: Standard: DIN, pro clamp collar 34 mm Material: SS - stainless steel 1.4301 …
CLAMP Gasket - Silicone DN10 (K34)
Properties: Standard: DIN 32676 Material: silicone Preformance: without collar DN10 …
CLAMP Gasket EPDM DN15
Properties: Type: DN15, clamp ferrule 34 mm DIN 32676 Material: ethylen-propylen (EPDM)…

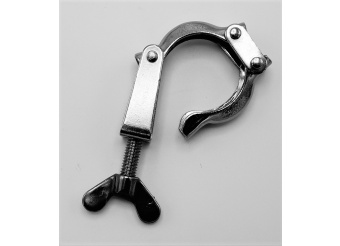

Light CLAMP II. DN10/15/20
