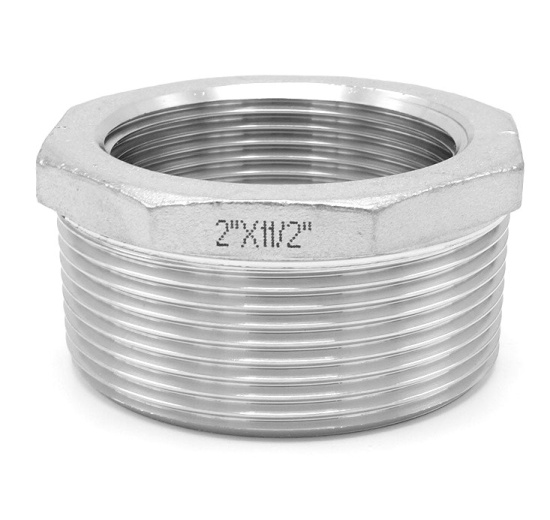

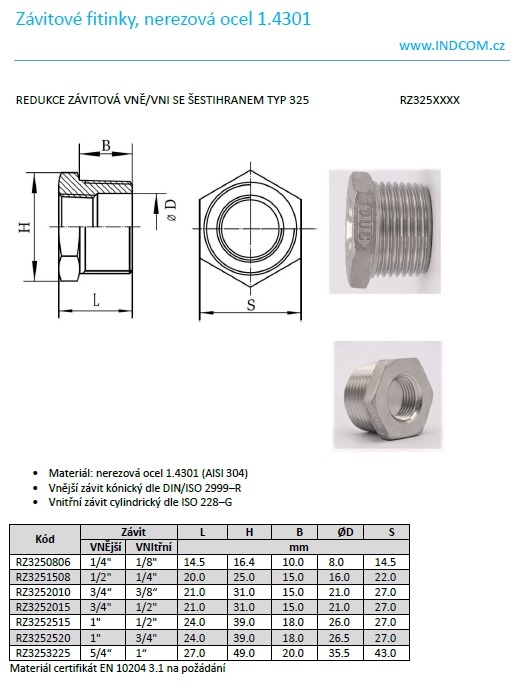

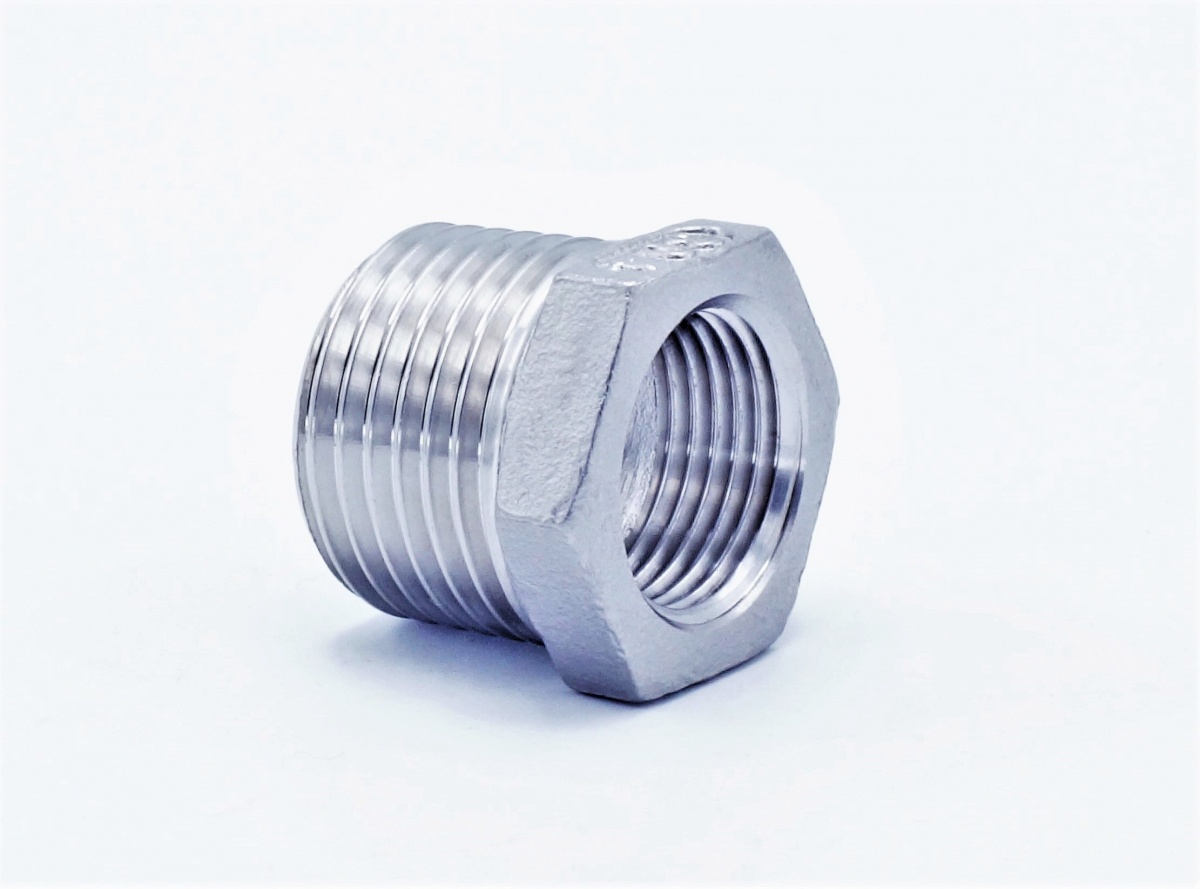

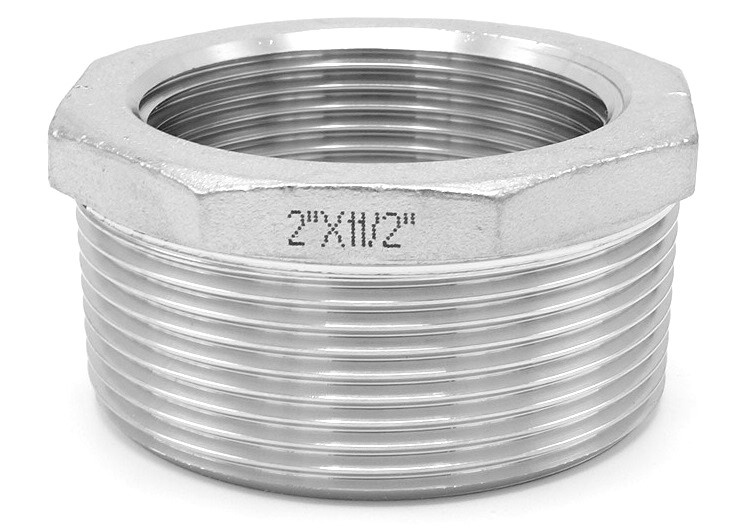

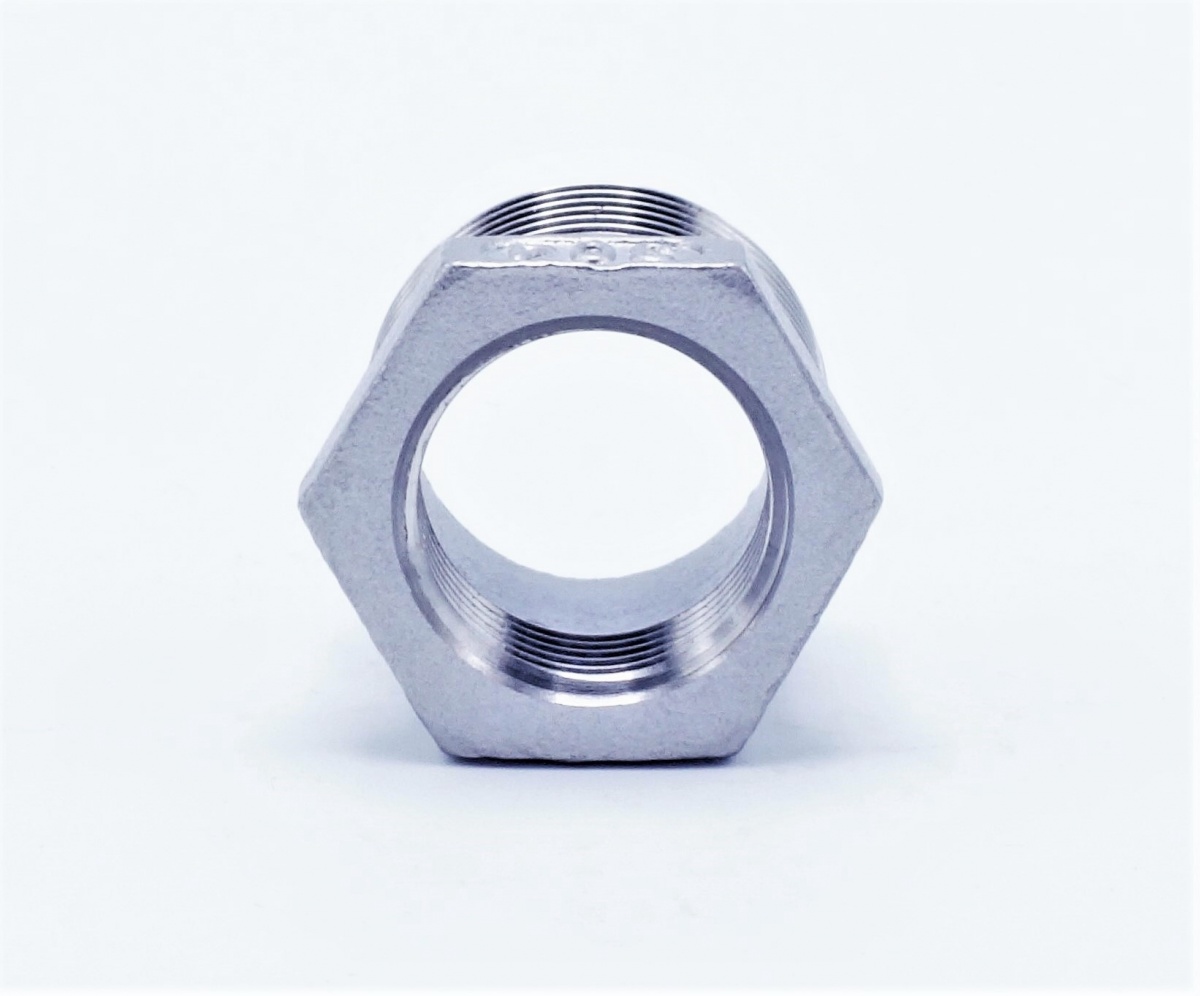

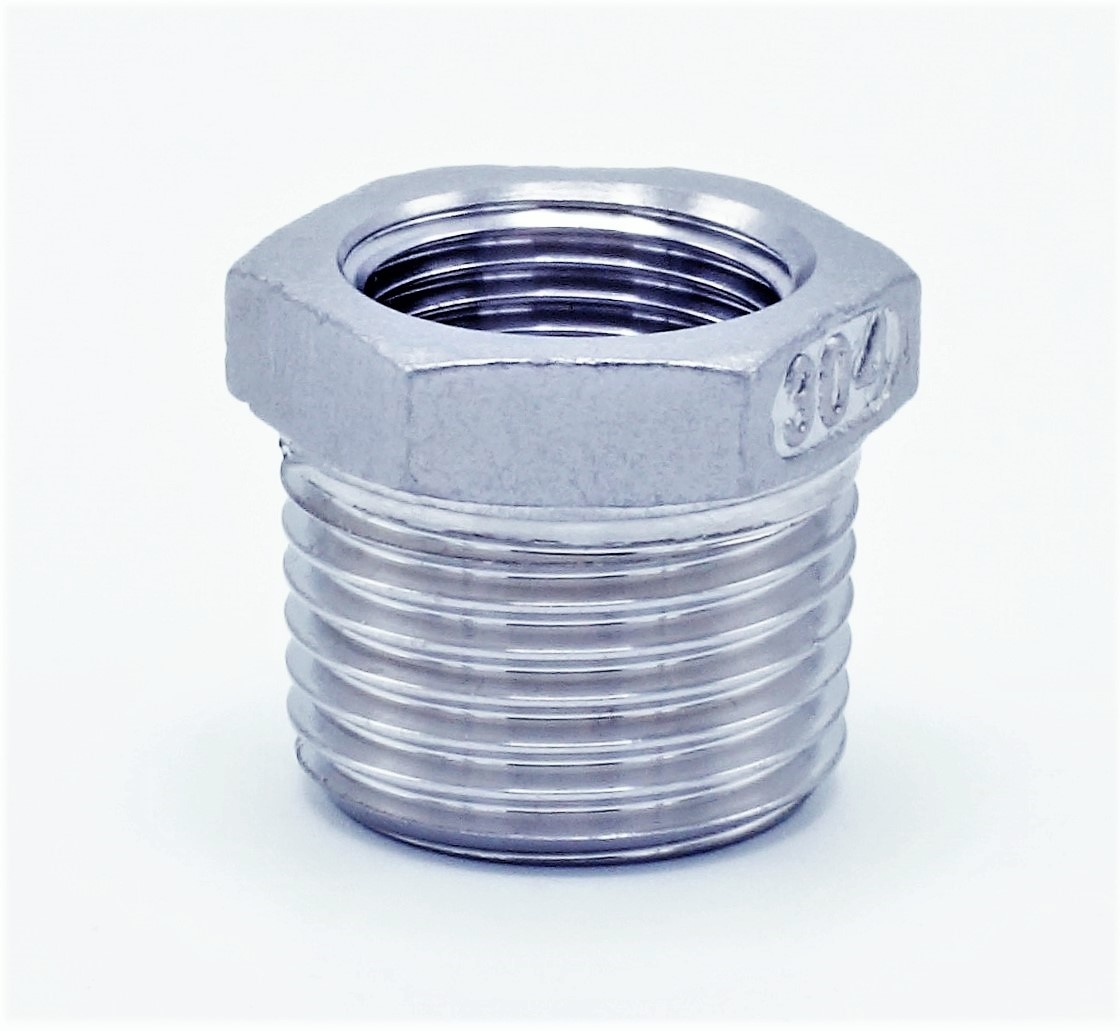

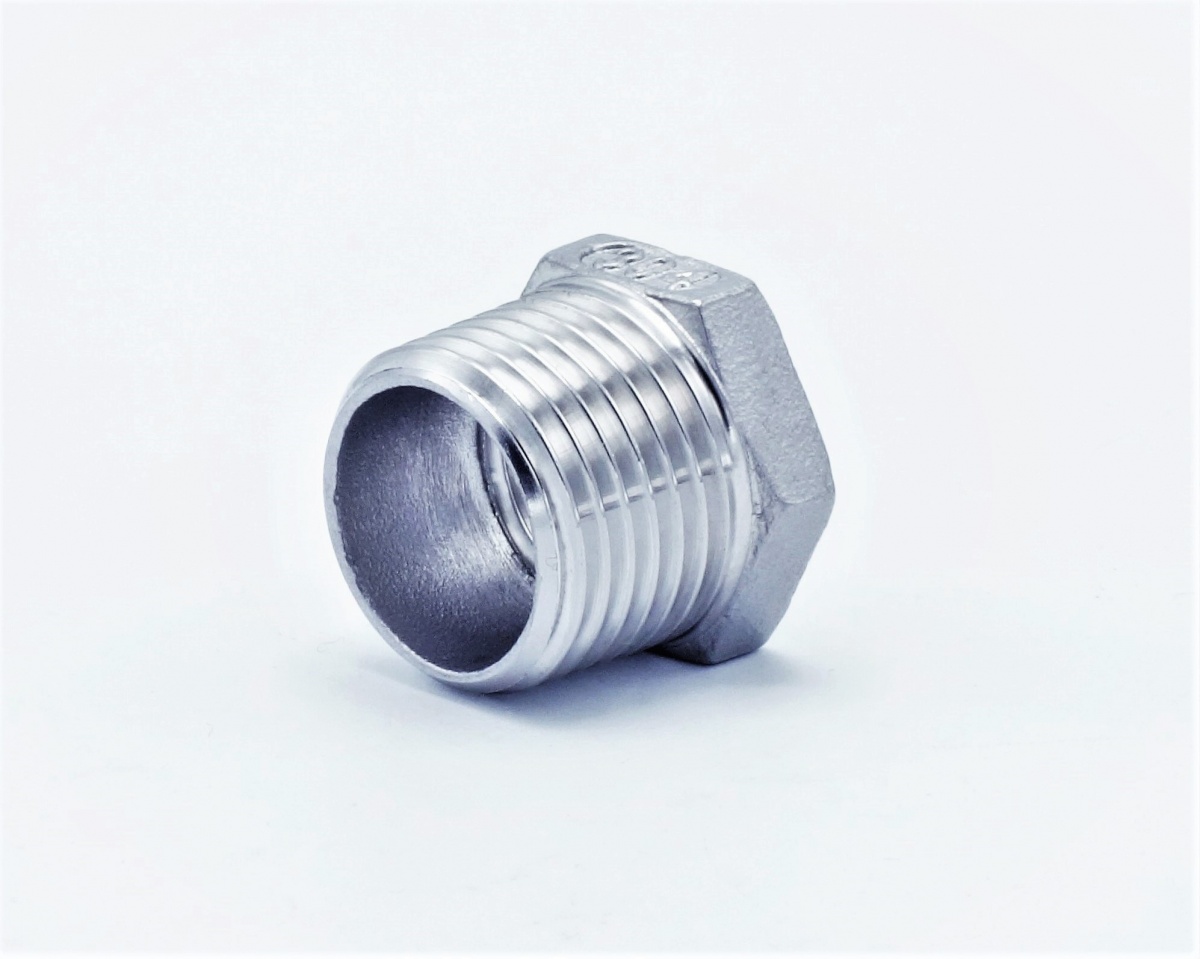

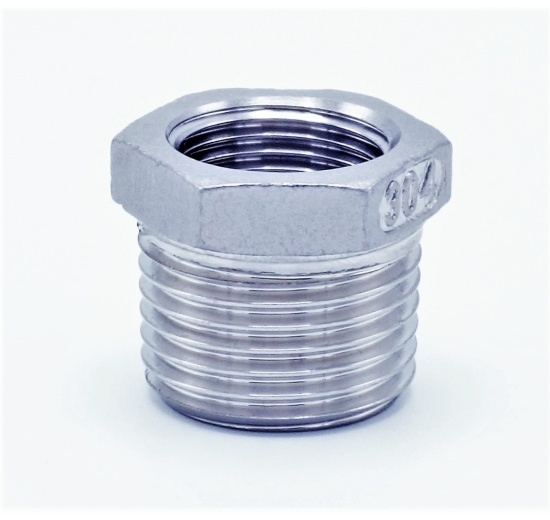

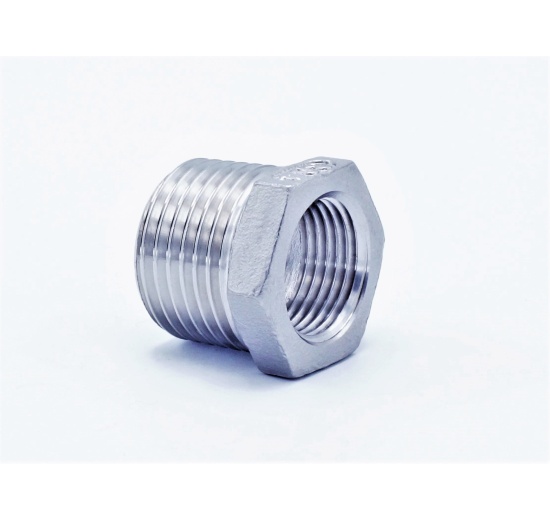

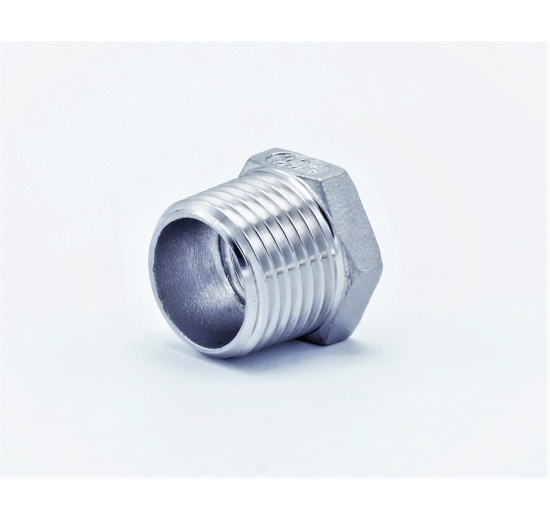

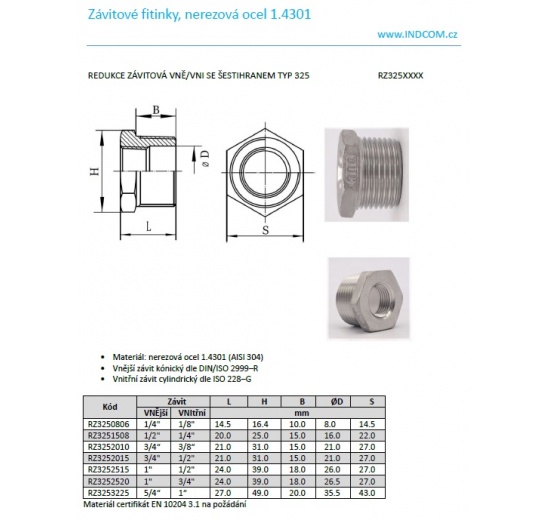

Basic information
- dimensions see technical data sheets
- conical outer thread according to DIN / ISO 2999 - R
- internal thread: cylindrical according to ISO 228 - G
Code | Thread | L | H | B | ØD | S | |
Male | Female | mm | |||||
RZ3250806 | 1/4" | 1/8" | 14.5 | 16.4 | 10.0 | 8.0 | 14.5 |
RZ3251508 | 1/2" | 1/4" | 20.0 | 25.0 | 15.0 | 16.0 | 22.0 |
RZ3252010 | 3/4“ | 3/8“ | 21.0 | 31.0 | 15.0 | 21.0 | 27.0 |
RZ3252015 | 3/4" | 1/2" | 21.0 | 31.0 | 15.0 | 21.0 | 27.0 |
RZ3252515 | 1" | 1/2" | 24.0 | 39.0 | 18.0 | 26.0 | 27.0 |
RZ3252520 | 1" | 3/4" | 24.0 | 39.0 | 18.0 | 26.5 | 27.0 |
RZ3253225 | 5/4“ | 1“ | 27.0 | 49.0 | 20.0 | 35.5 | 43.0 |
