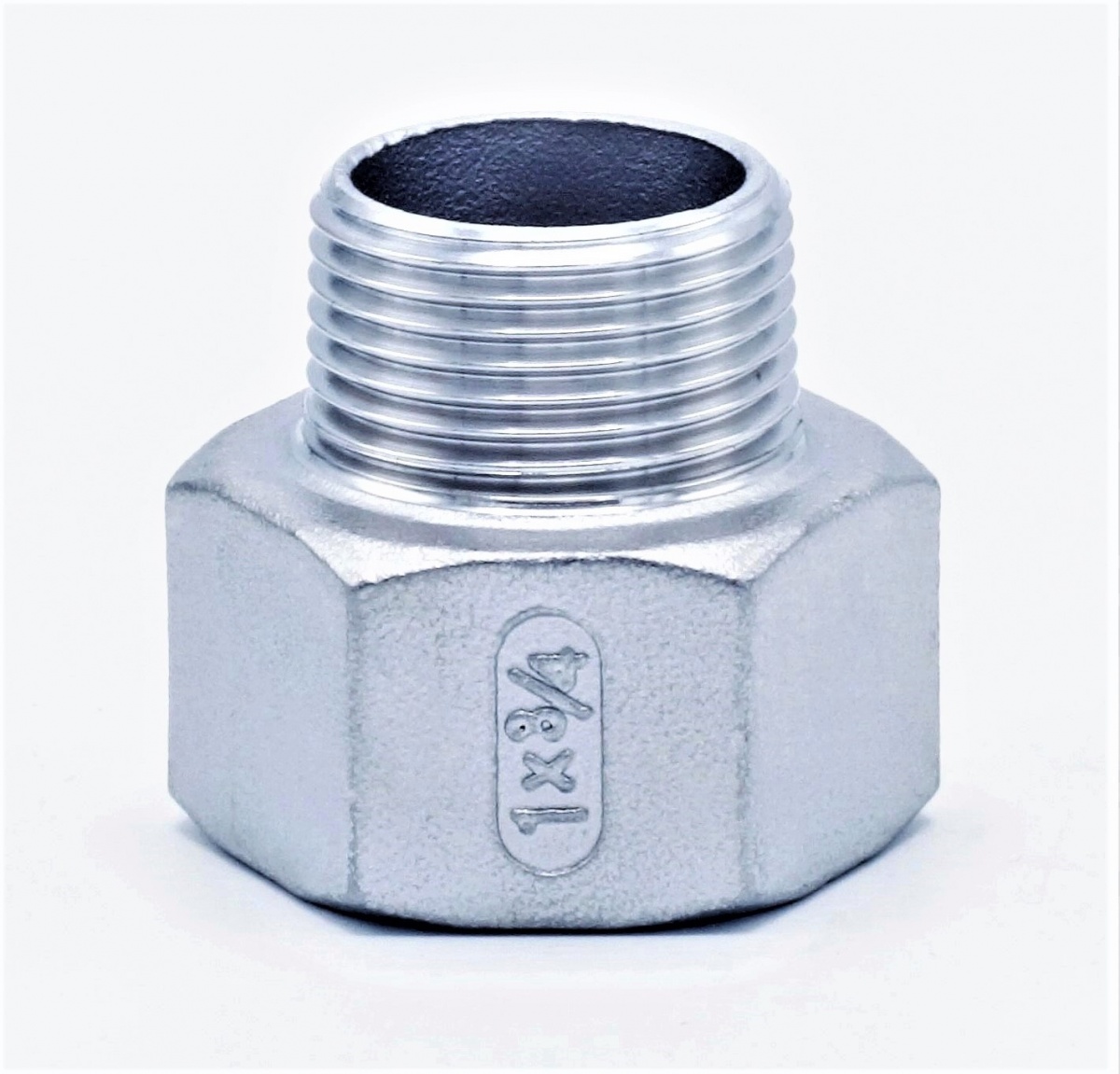

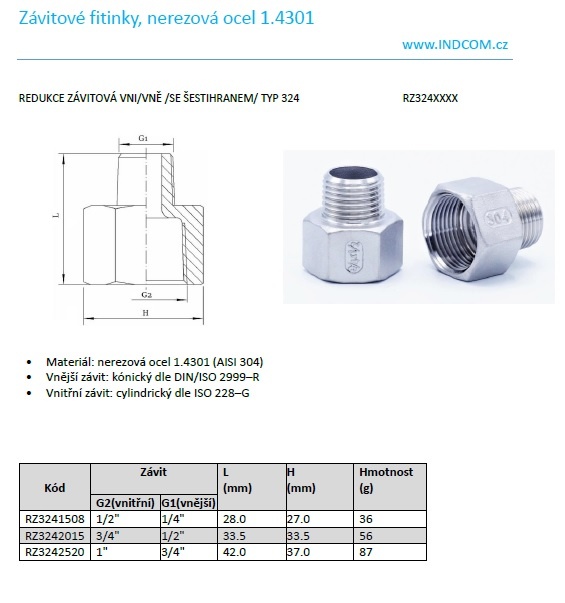

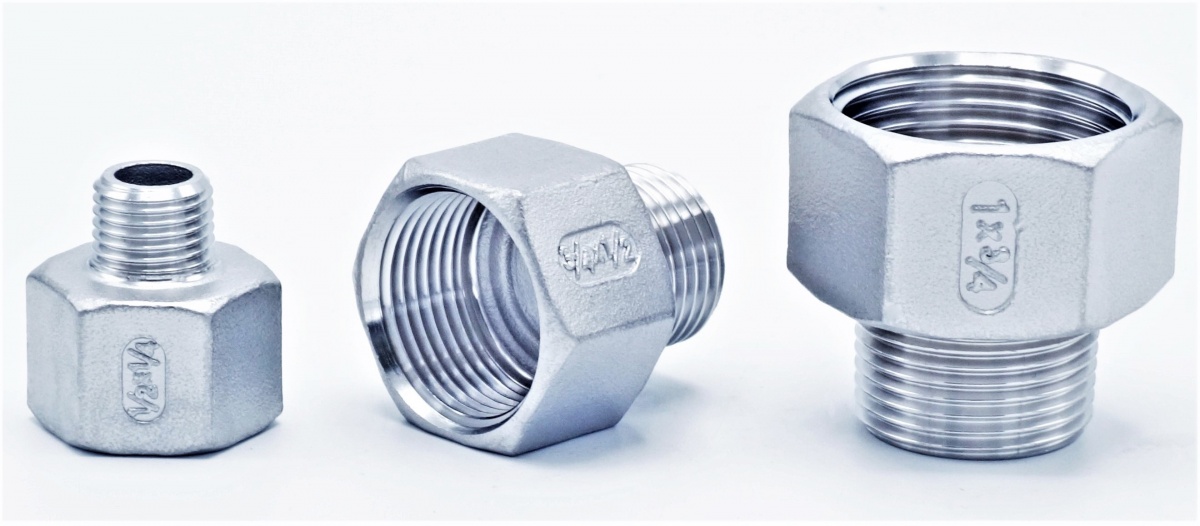

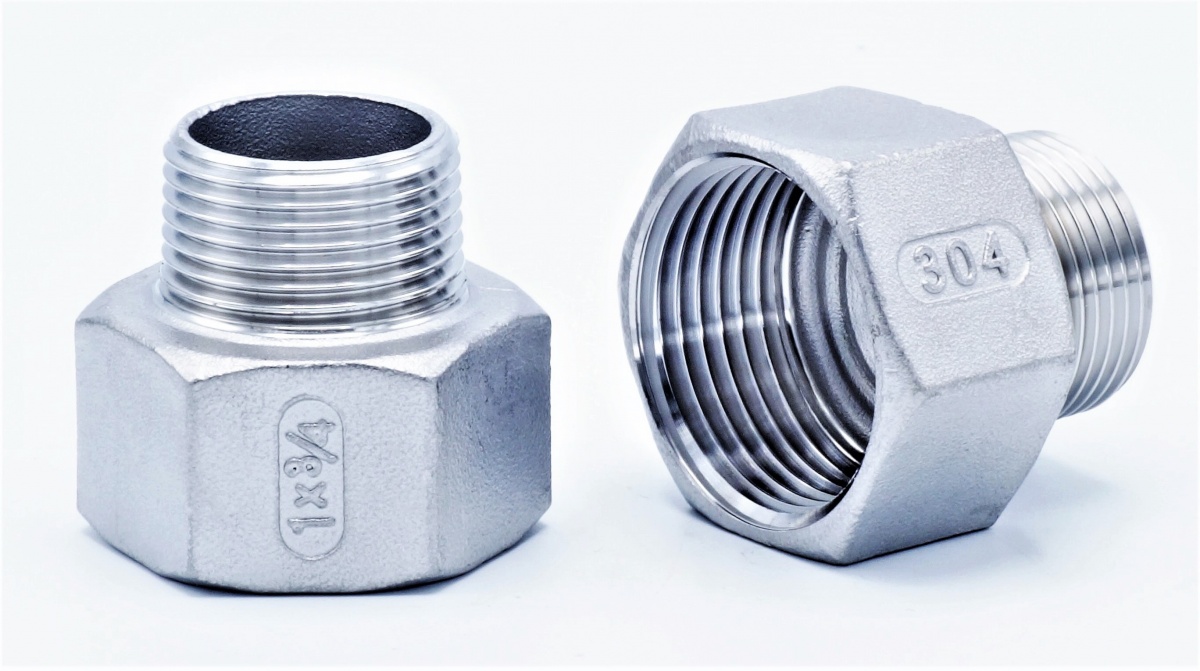

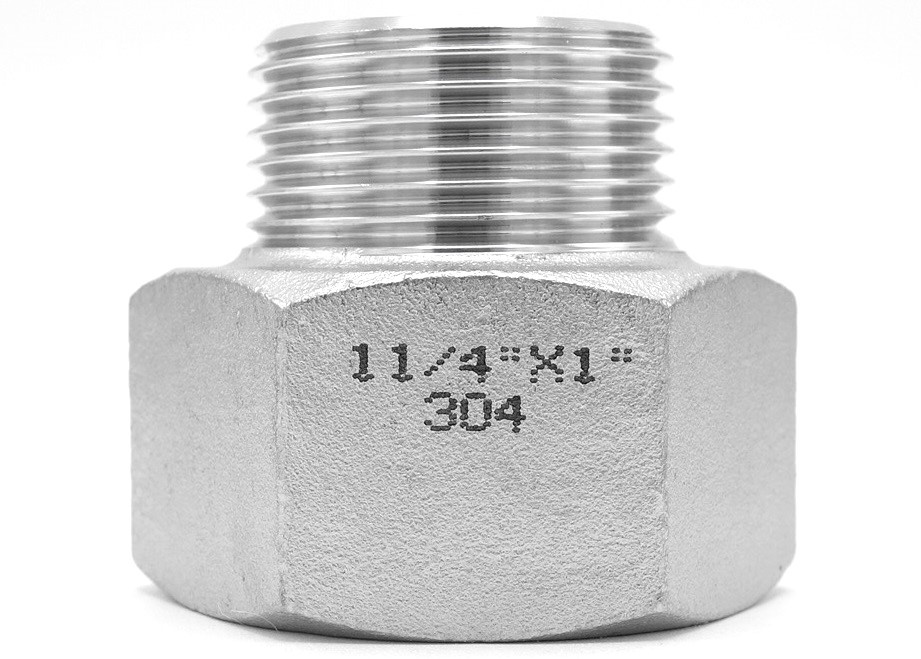

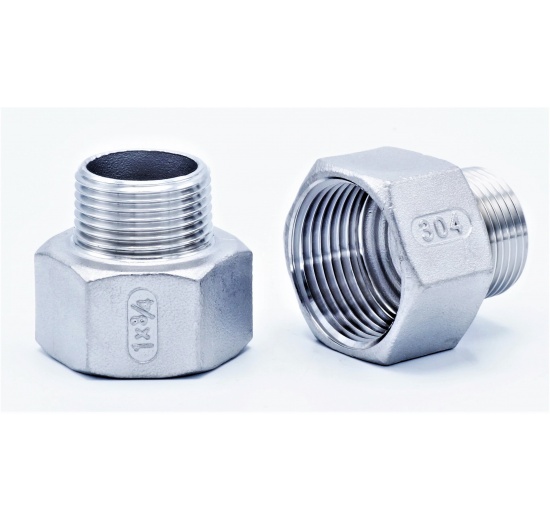

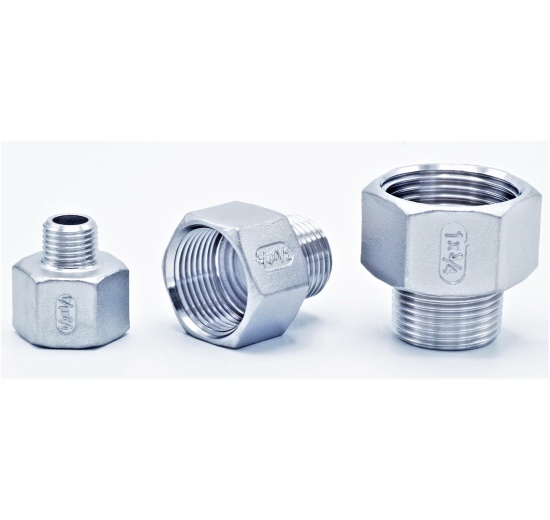

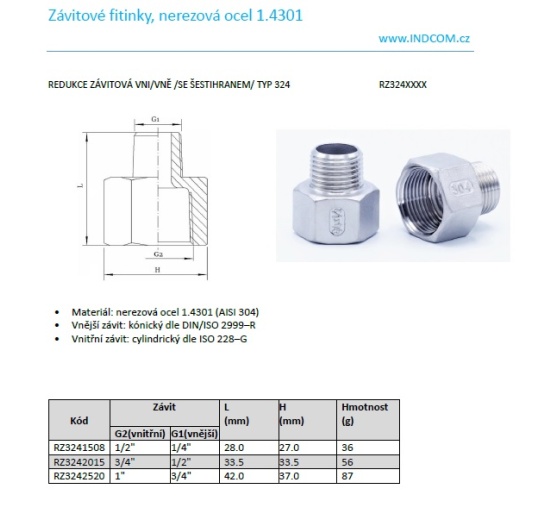

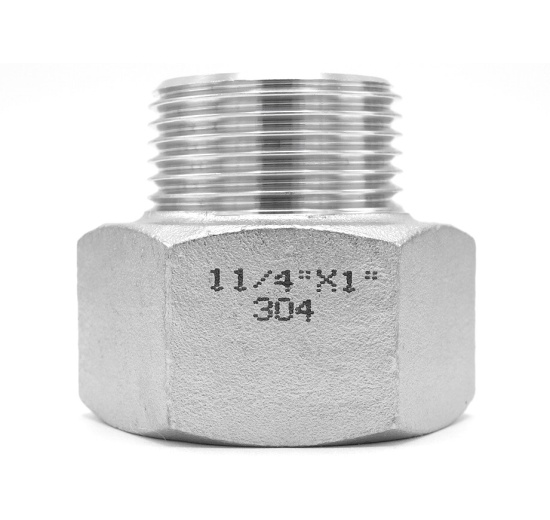

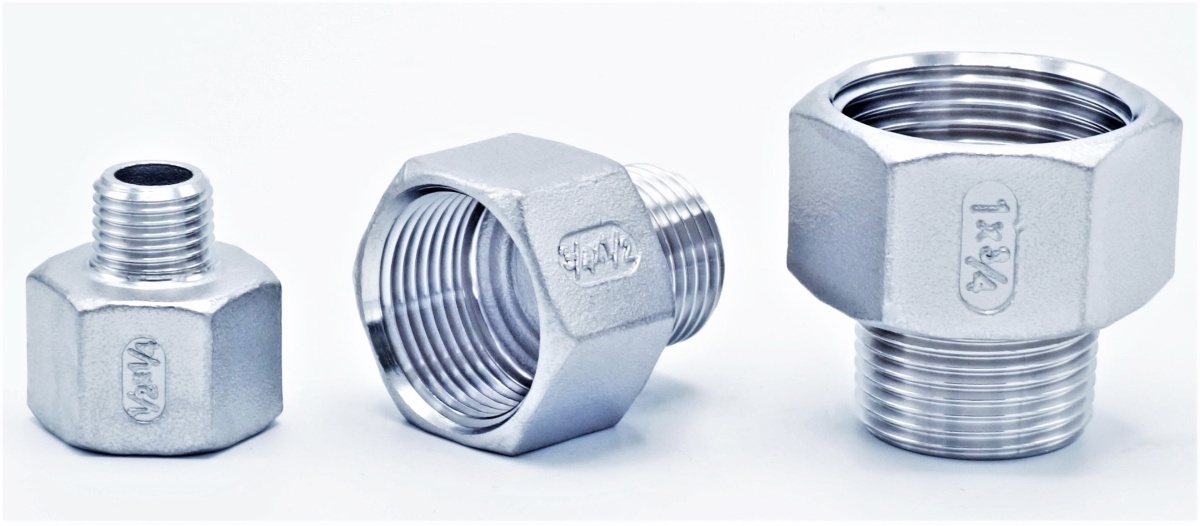

Threaded Reducer F/M / With Hexagon / type 324
Threaded fittings – stainless steel 1.4301 (AISI 304).
Prices are stated without VAT
Basic information
Conical male thread DIN/ISO 2999 – R (EN 10226–1). Cylindrical female thread according to ISO 228 – G.
Maximum pressure: 10 bar (150psi)
Code | Thread | L | H | Weight | |
G2(male) | G1(female) | mm | g | ||
RZ3241508 | 1/2" | 1/4" | 28.0 | 27.0 | 36 |
RZ3242015 | 3/4" | 1/2" | 33.5 | 33.5 | 56 |
RZ3242520 | 1" | 3/4" | 42.0 | 37.0 | 87 |
