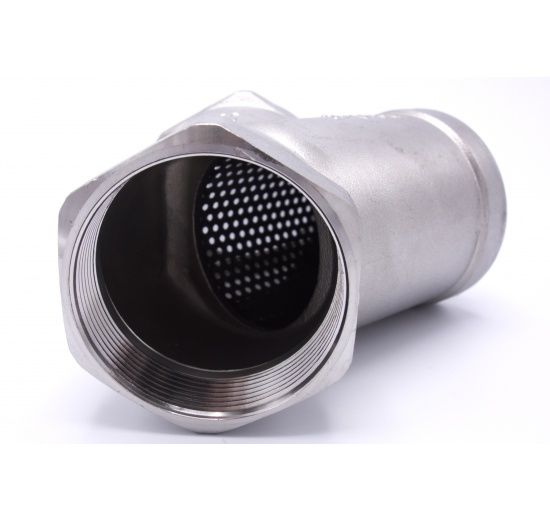

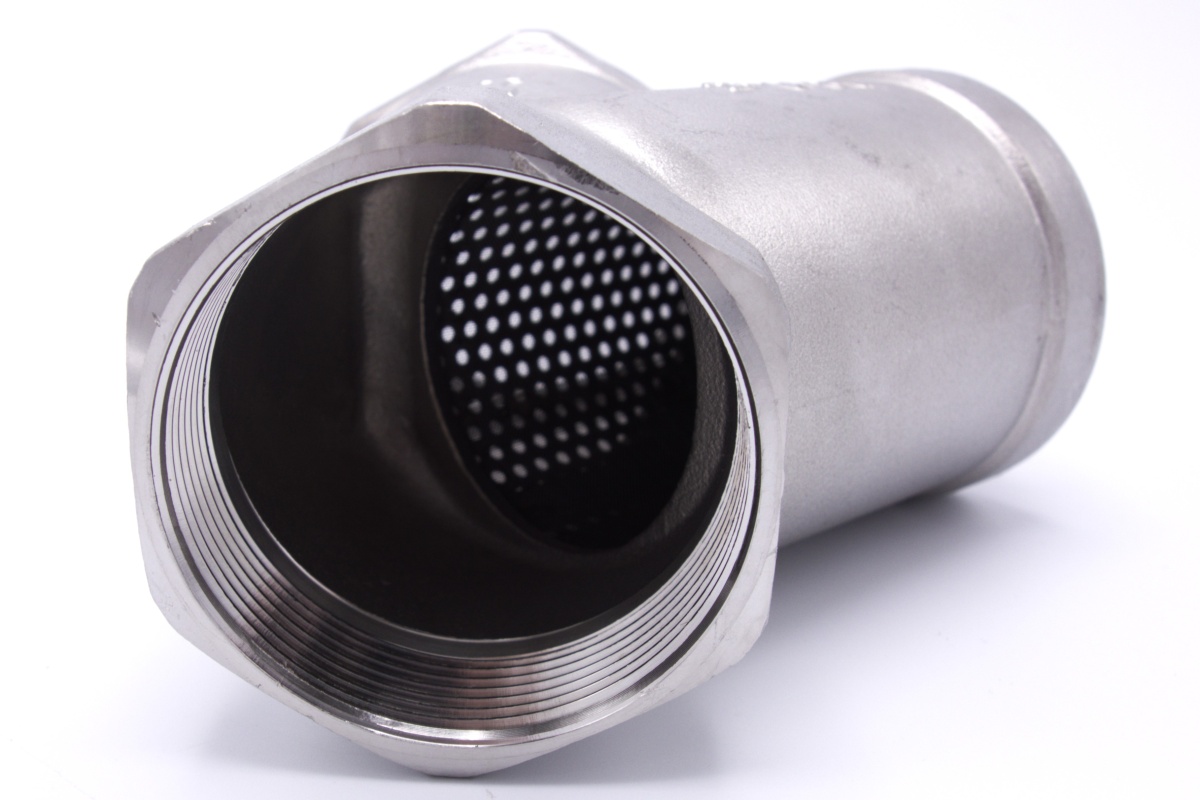

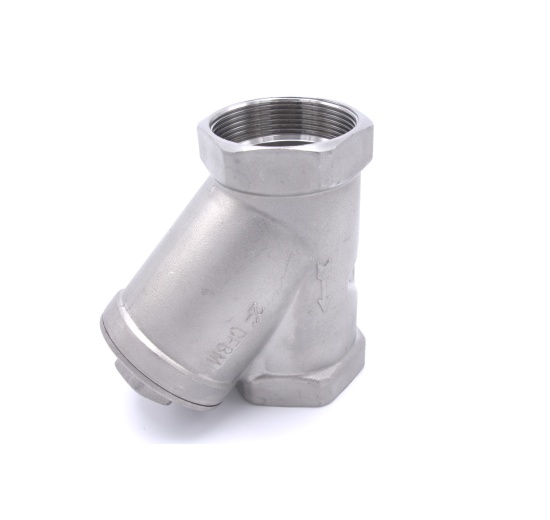

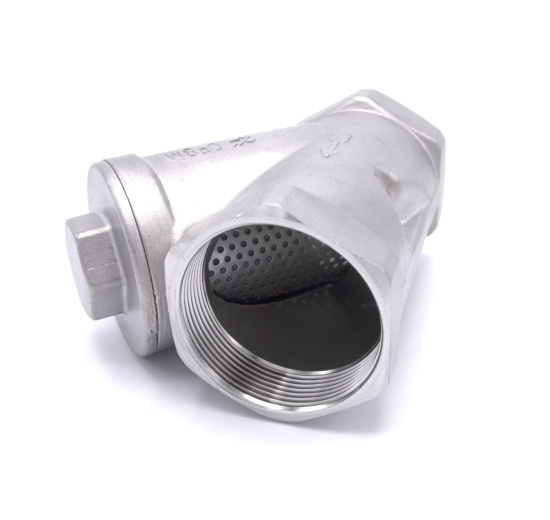

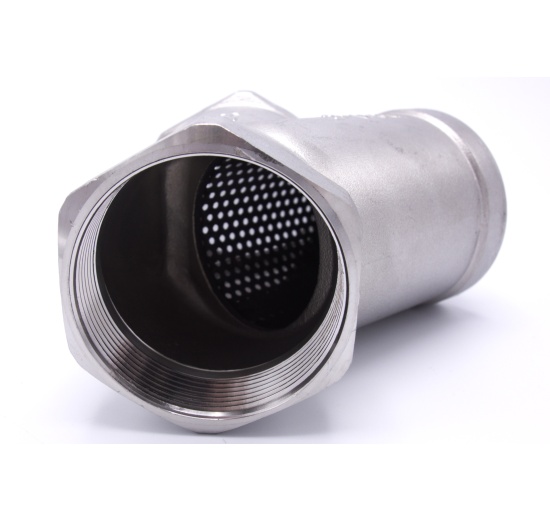

Stainless steel Y filter slant with stainless sifter, threaded
Prices are stated without VAT
Basic information
- Connection: threaded BSP-G
- Maximal working pressure: 55 bar(800PSI) PN55
- The material of the body: stainless steel 1.4308 (DIN G-X6 CrNi 18 9)(ASTM CF8)

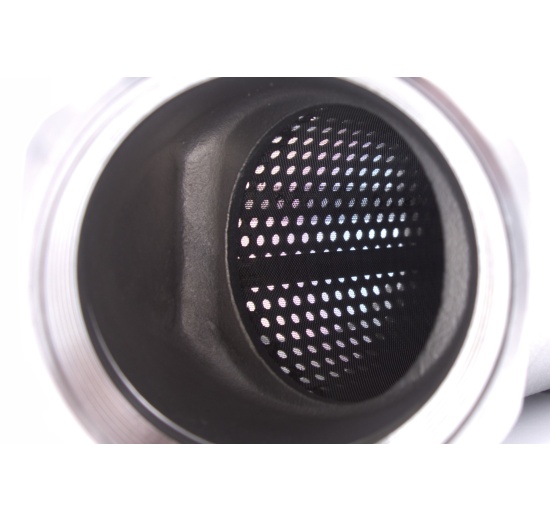

- The material of the filter: stainless steel 1.4301 (AISI 304), perforated metal, the diameter of holes 1.5 mm, the distance between holes 1.5 mm
- The filter is complemented by a fine sieve 180 µm (0.18 mm)
- Gasket: PTFE
- Working temperature: 0–180 °C
Kód | Závit | d | L | C | D | H |
mm | ||||||
MS1010_3/8 | ⅜“ | 11.0 | 56.0 | 11.0 | 14.0 | 37.8 |
MS1010_1/2 | ½“ | 15.0 | 65.0 | 14.0 | 17.0 | 44.7 |
MS1010_3/4 | ¾“ | 20.0 | 80.0 | 14.0 | 23.0 | 52.1 |
MS1010_1 | 1“ | 25.0 | 84.0 | 18.0 | 30.0 | 65.7 |
MS1010_1 1/4 | 1 ¼“ | 32.0 | 104.0 | 19.0 | 38.0 | 70.0 |
MS1010_1 1/2 | 1 ½“ | 38.0 | 108.0 | 20.0 | 43.5 | 79.5 |
MS1010_2 | 2“ | 18.0 | 126.0 | 21.0 | 55.0 | 90.0 |
