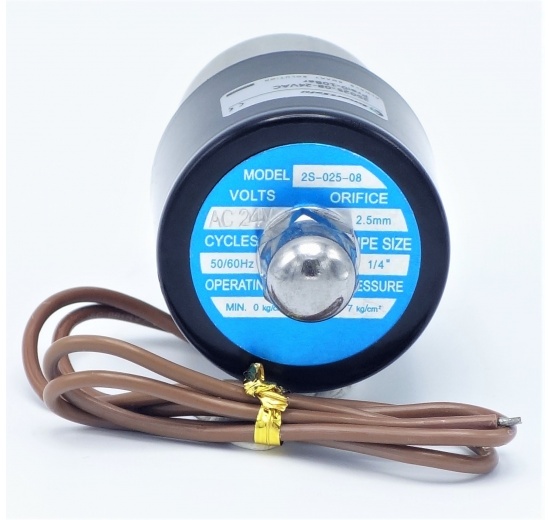

Basic information
- solenoid valves from our range are used to close, open and control the flow of liquid media

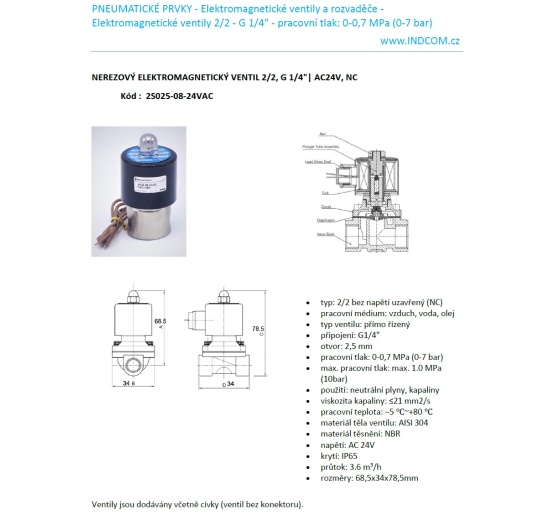

| Type | 2/2 without voltage closed (NC) |
| Working medium | air, water, oil |
| Valve type | directly controlled |
| Thread connection | G1/4" |
| Hole | 2,5 mm |
| Working pressure | 0-0,7 MPa (0-7 bar) |
| Max. working pressure | 1.0 MPa (10bar) |
| Application | neutral gases, liquids |
| Liquid viscosity | ≤21 mm2/s |
| Working temperature | –5 ℃~+80 ℃ |
| Valve body material | AISI 304 |
| Seal material | NBR |
| Voltage | AC 24V |
| Ingress Protection | IP65 |
| Flow rate | 3.6 m³/h |

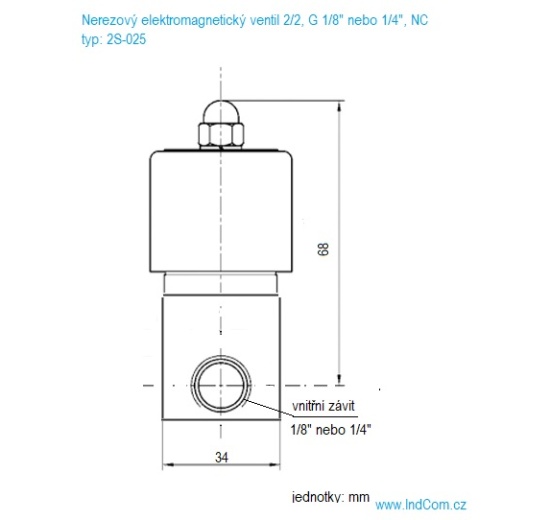

| Size | 68,5x34x78,5mm |

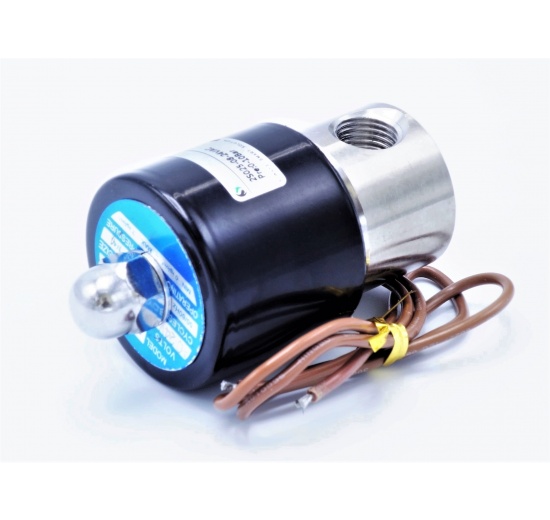

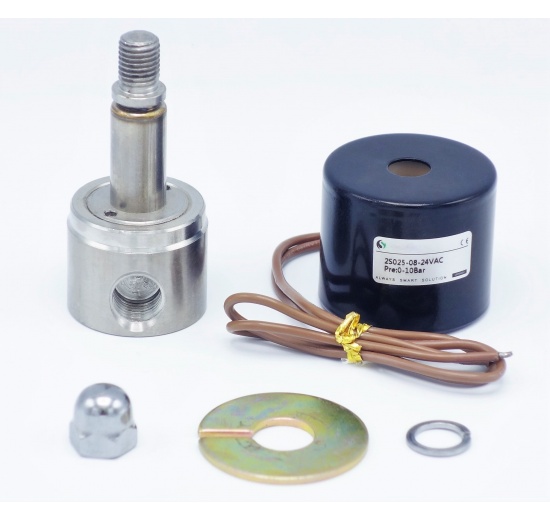

The valves are supplied with a coil (valve without a connector).
More from the category
G 1/4" - working pressure: 0-0,7 MPa (0-7 bar)
Spare coil for stainless steel solenoid valve 2/2…
Use: - solenoid valves from our offer are used for closing, opening and…
Price from
156,00 Kč

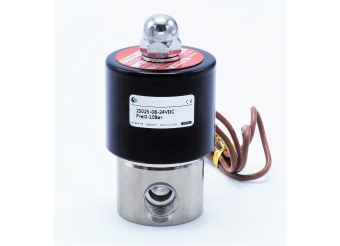

Stainless steel solenoid valve 2/2, G 1/4" DC24V,…
