Basic information

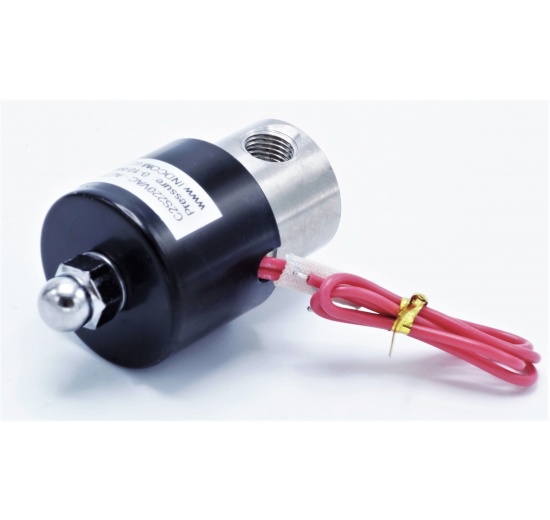

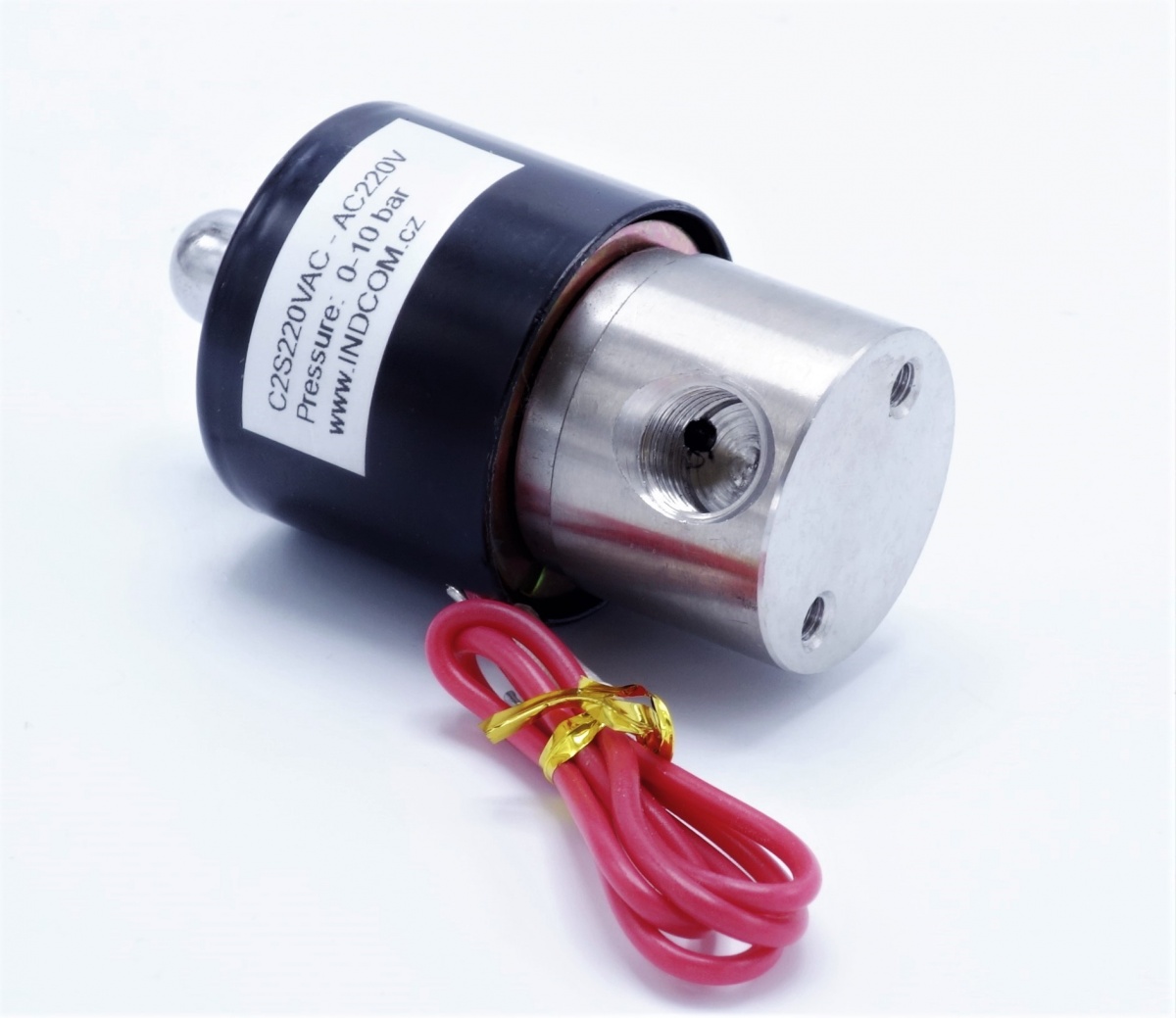

Solenoid valves from our offer are used for closing, opening and controlling the flow of liquid media
| Type | 2/2 mornally closed (NC) |
| Working medium | air, water, oil |
| Valve type | directly controlled |
| Connection | G1/4" |
| Hole (orifice) | 2,5 mm |
| Working pressure | 0-0,7 MPa (0-7 bar) |
| Maximal working pressure | 1.0 MPa (10 bar) |
| Use | neutral gases, liquids |
| Liquid viscosity | ≤21 mm2 / s |
| Working temperature | –5 ℃~+80 ℃ |
| Valve body material | AISI 304 |
| Seal material | NBR |
| Voltage | AC 220V |
| Protection | IP65 |
| Flow rate | 3.6 m³ / h |

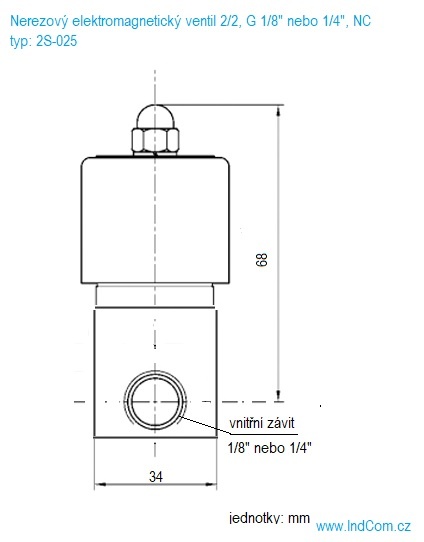

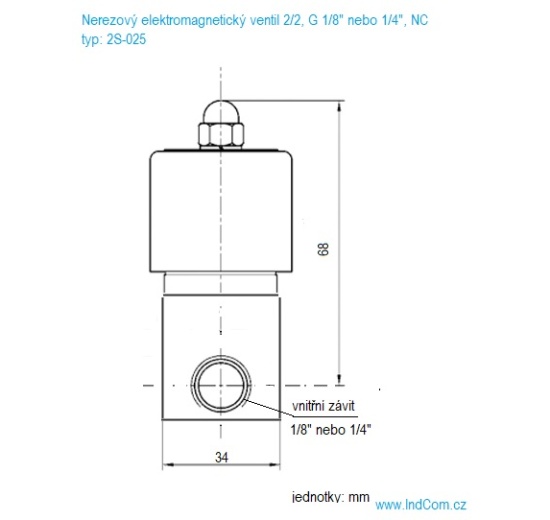

| Dimensions | 68.5 x 34 x 78.5 mm |

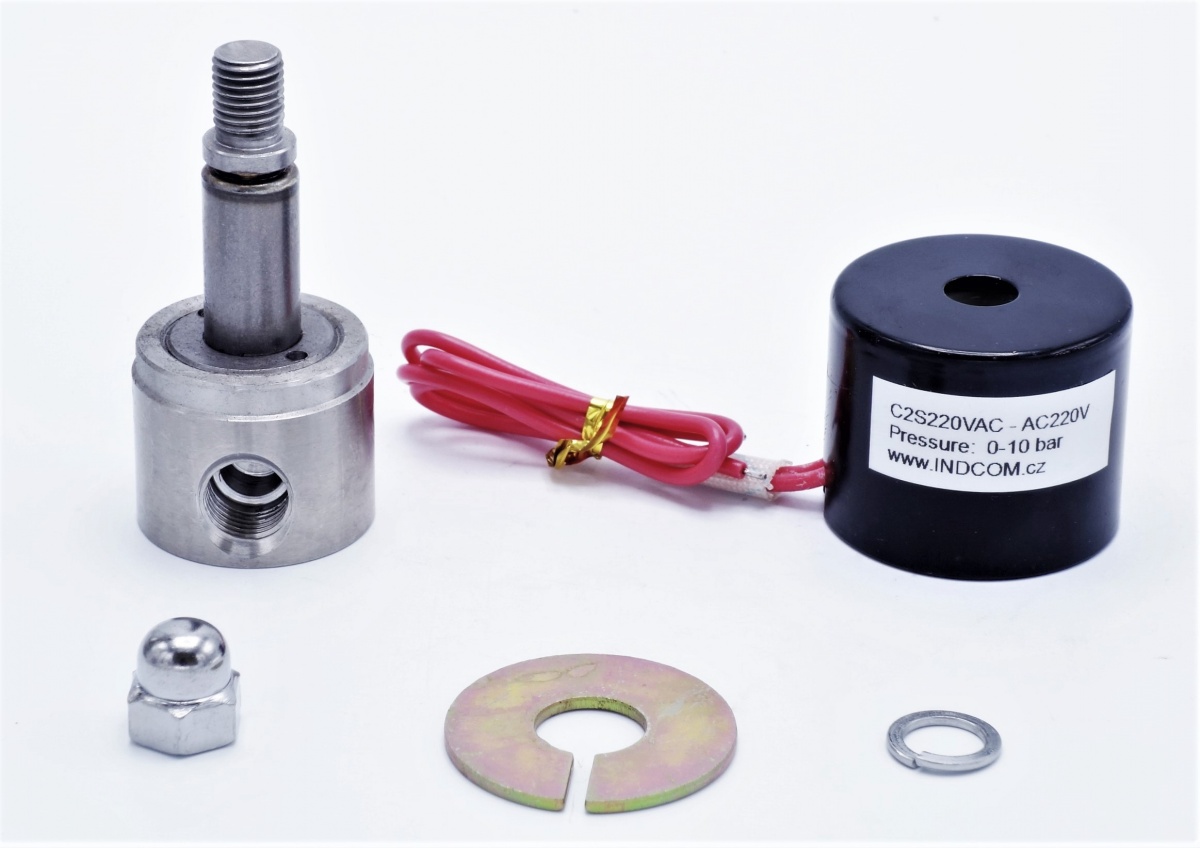

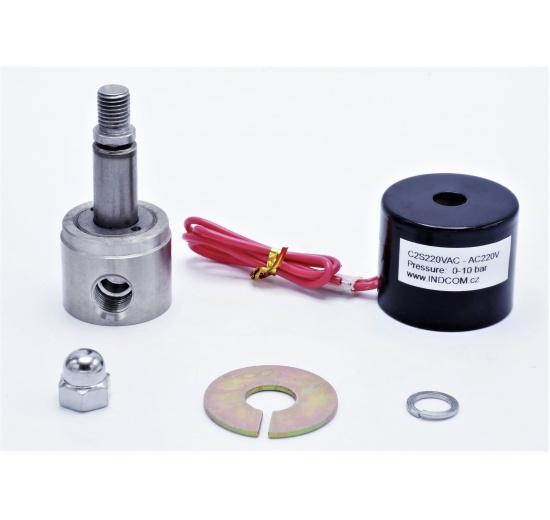

The valves are supplied with a coil (valve without connector).
