Basic information
| Type | 2/2 without voltage closed (NC) |
| Valve type | directly controlled |
| Thread connection | G1/2" |
| Hole (Orifice) | 14 mm |
| Working pressure | 0-1,0 MPa (0-10 bar) |
| Max. working pressure | Max.1.0 MPa(10bar) |
| Application | Neutral gases, liquids |
| Liquid viscosity | ≤21 mm2/s |
| Medium temperature | –20 ℃~+130 ℃ |
| Working pressure | 0 až 1.0 MPa |
| Valve body material | AISI 304 |
| Seal material | EPDM |
| Voltage: DC | 24V |
| Ingress protection | IP65 |
| Flow rate | 3.6 m³/h |

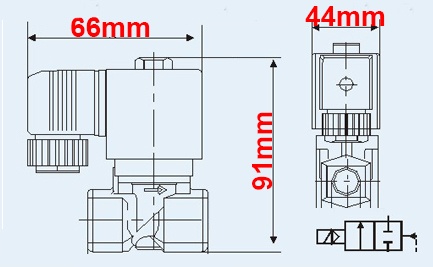

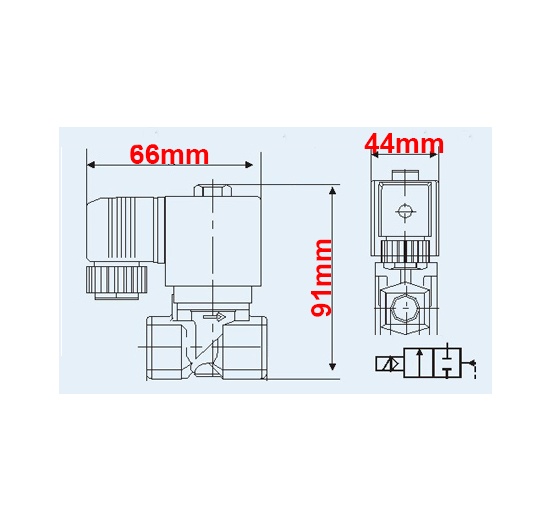

| Size | 66x44x91mm |
Valves are supplied with coil and connector.
