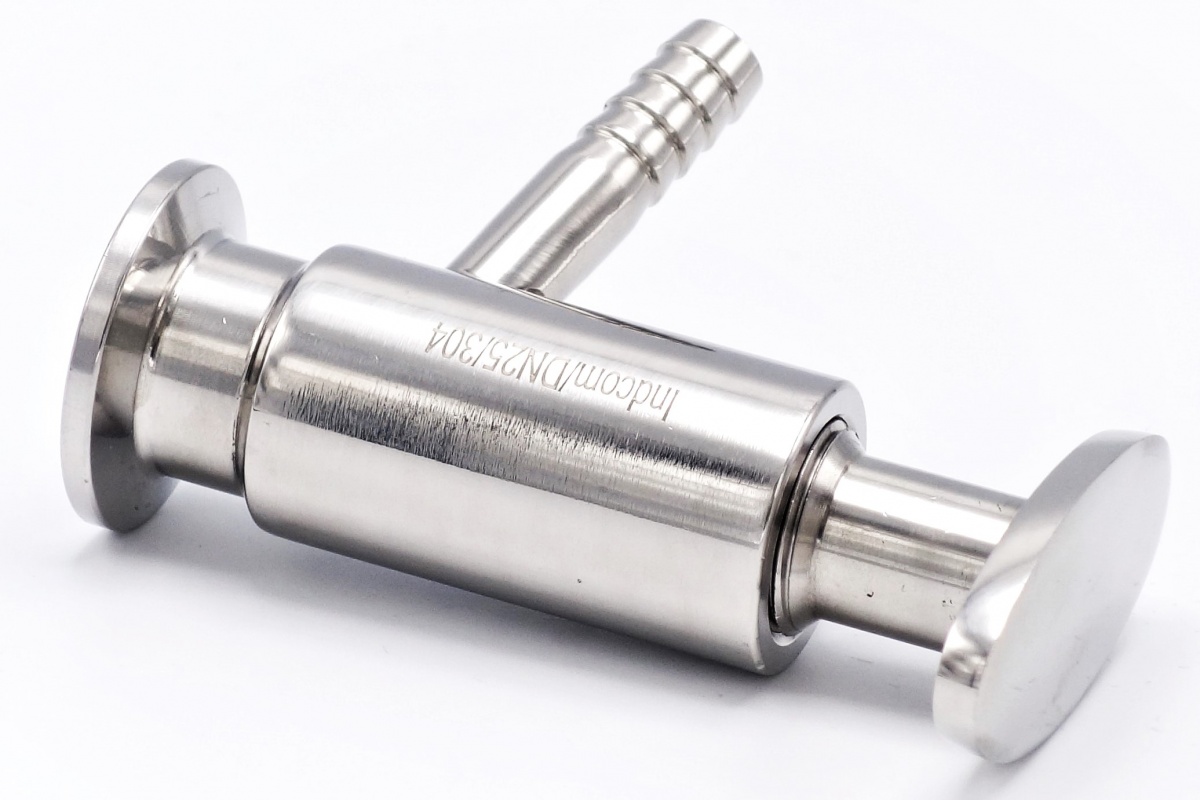

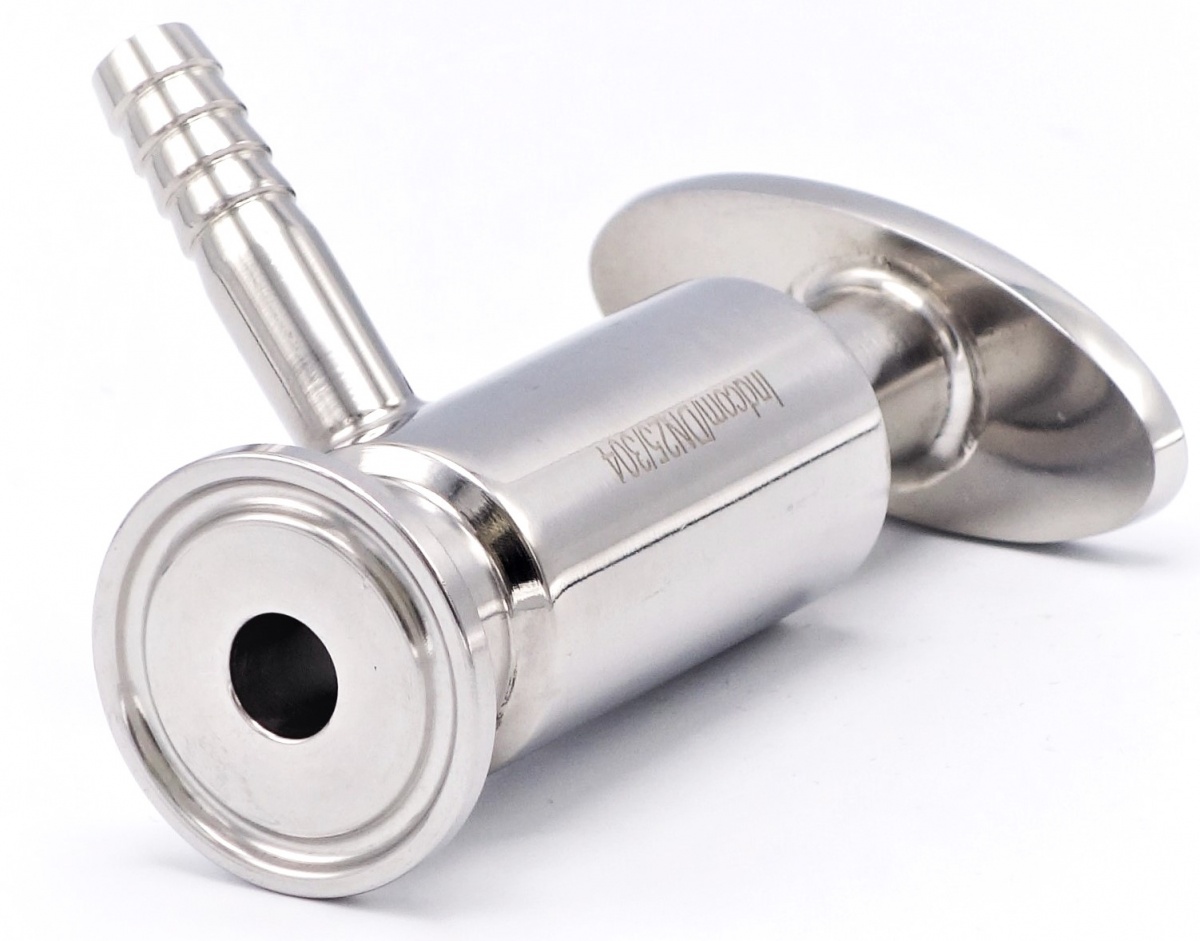

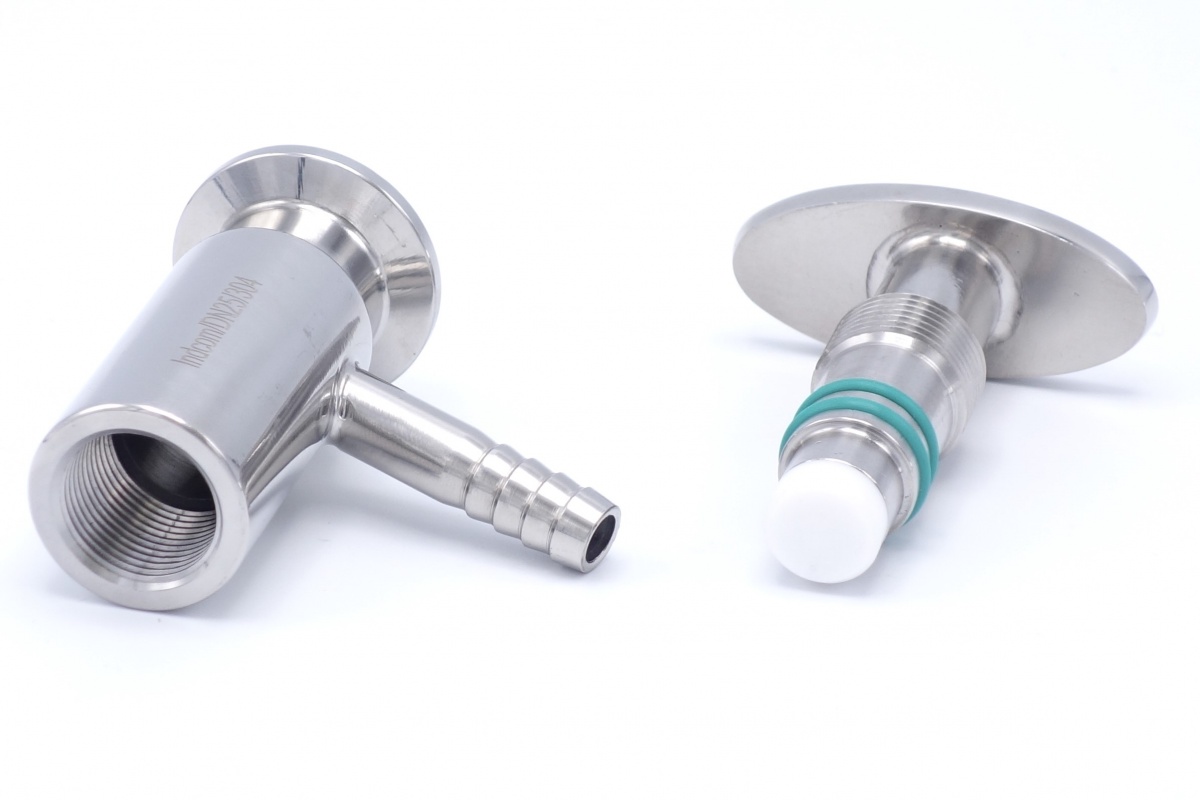

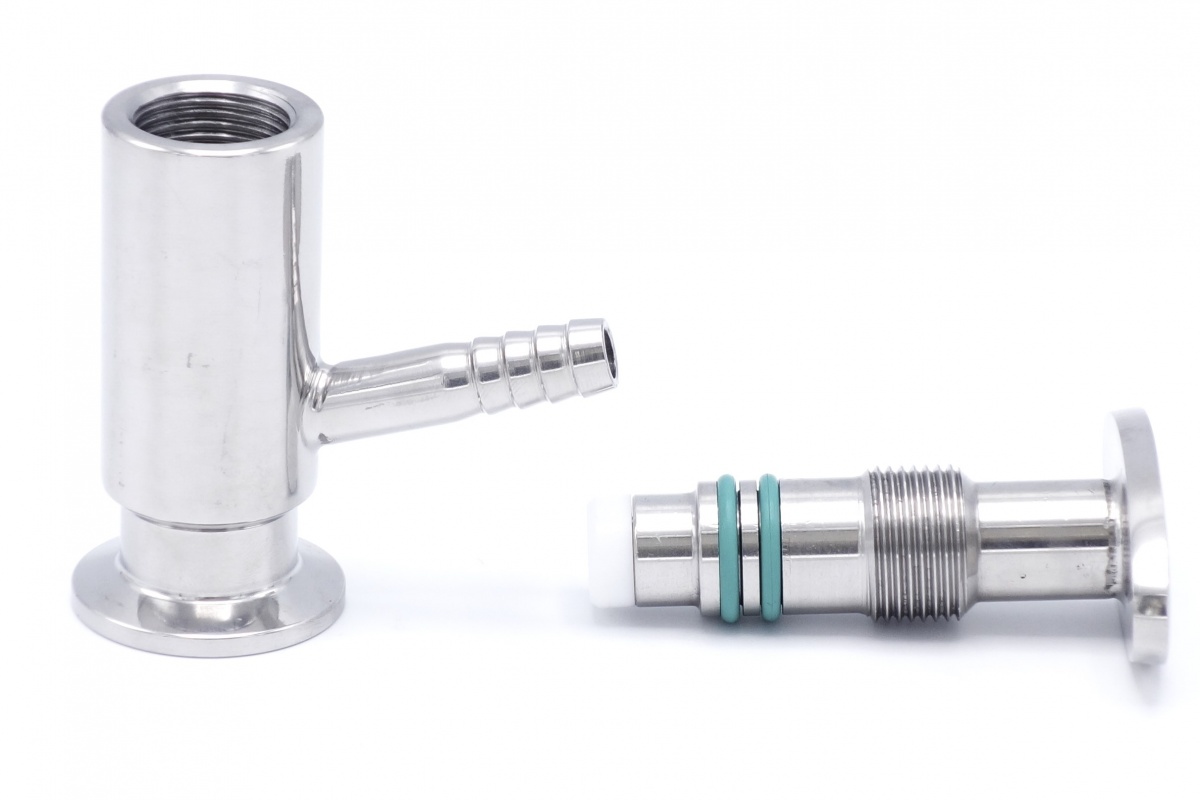

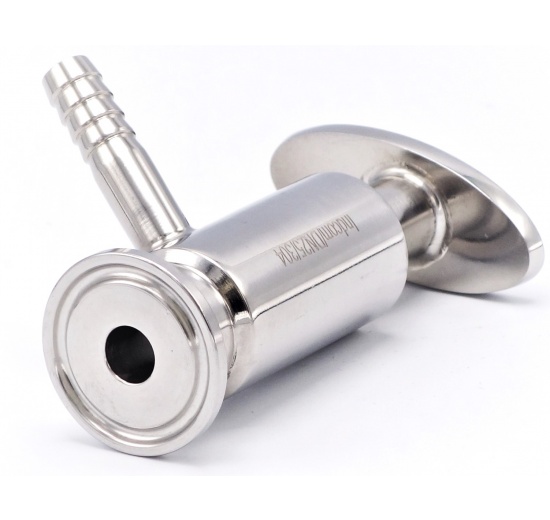

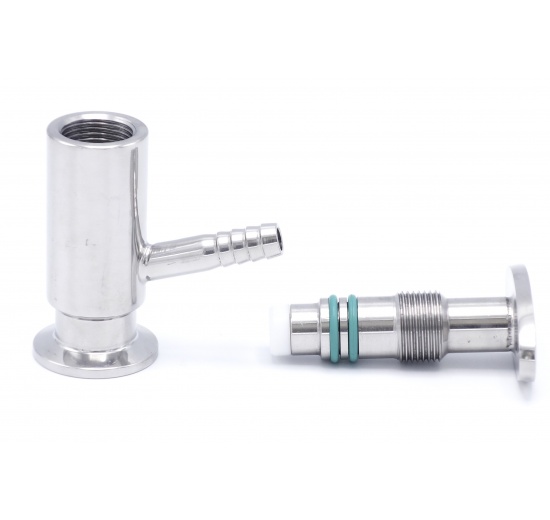

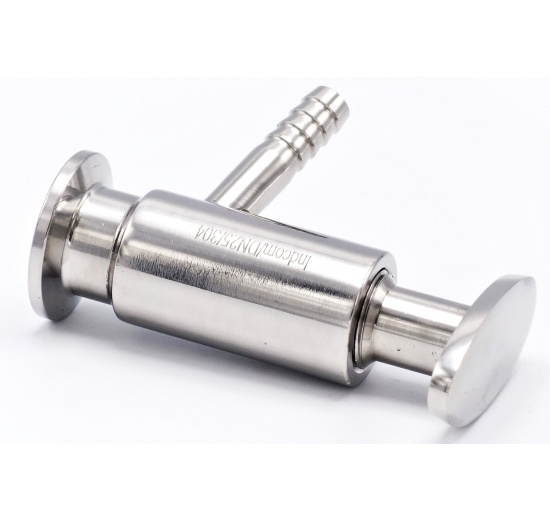

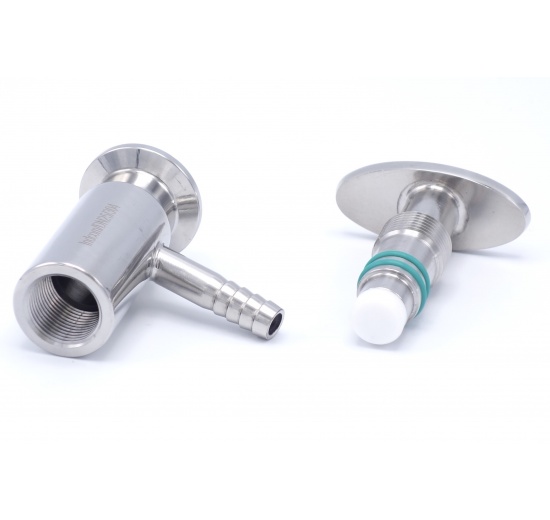

Basic information
| Standard | DIN 32676 |
| Type | Clamp connection DN20 (CLAMP collar 34 mm) |
| Control | screwing the shaft |
| Max. working pressure | 6 bar |
| Working temperature | –10 °C to 100 °C |
| Sanitation temperature | 120 °C |
| Material | valve head stainless steel 1.4301 (AISI 304), valve body stainless steel 1.4301 (AISI 304), PTFE seal (Teflon) |
Areas of applications
Winery, brewing, dairy, beverage, food production, pharmacy, etc. Sanitary (hygienic) sampling valve is used for sampling of operating substances (wine, beer, milk, cider, etc.).
Compatible accessories
CLAMP Gasket EPDM DN20
Properties: Type: DN20, clamp ferrule 34 mm DIN 32676 Material: ethylen-propylen (EPDM)…
Price from
0,41 €

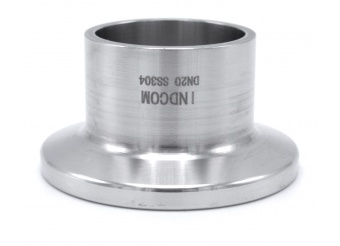

Clamp Welded Ferrule DN20(K34)
Properties: Standard: DIN32676-clamp ferrule 34 mm, pipe DIN11850 Material: stainless…
Price from
2,37 €
CLAMP Gasket - Silicone DN20 (K34)
Properties: Type: DN20, clamp ferrule 34 mm DIN32676 Material: silicone FDA atestation…
Price from
0,41 €

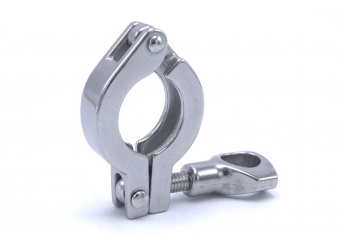

Heavy Duty CLAMP I. DN10/15/20 (K34)
