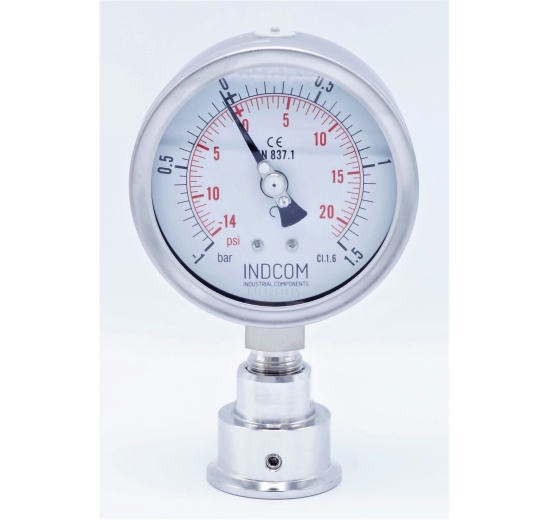

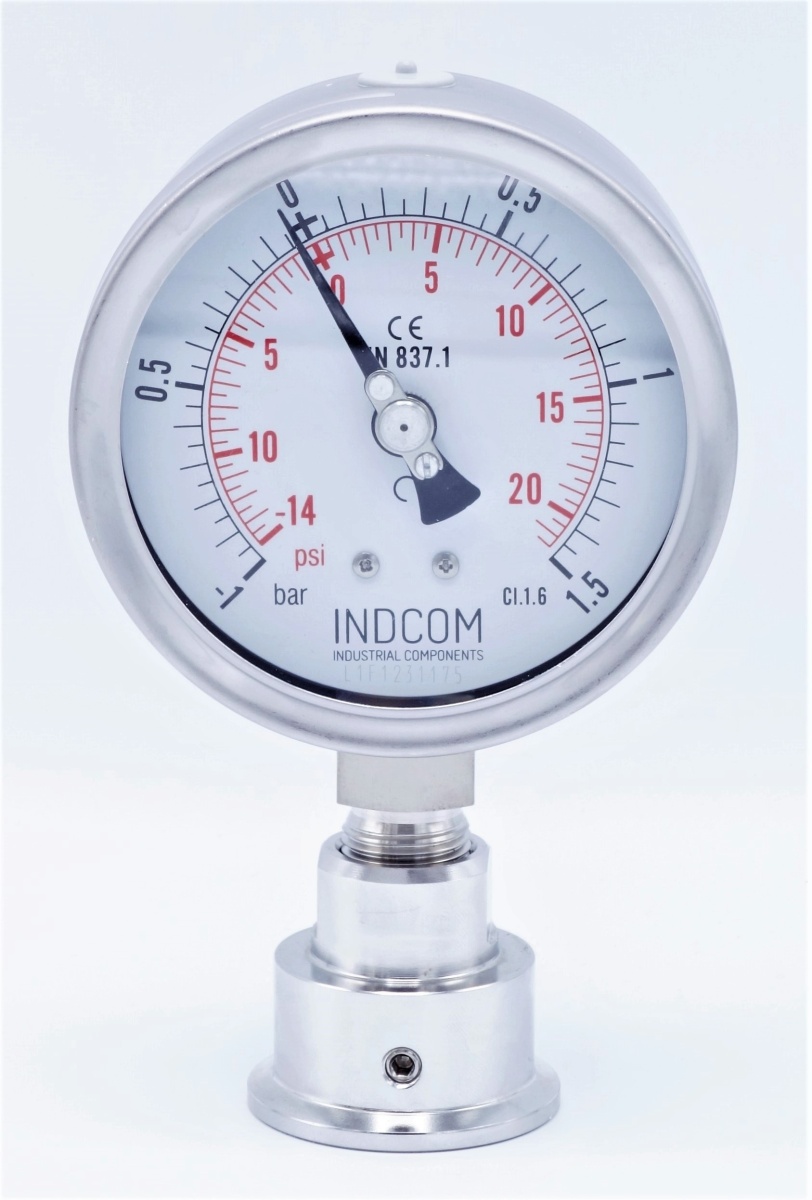

Basic information
- The material of case SS - DIN 1.4301 (AISI 304), mechanism DIN 1.4301 (AISI 304), the material of connecting thread, and Bourdon's coil DIN 1.4401 (AISI 316).
- The connecting thread is designed by TIG method.
- Filling: Standardly supplied with glycerin filling
- Cover of the dial: hardened glass
- Range: -1 to 1.5 bar
- Bottom connection, thread G1/2“ BSP
- The dimension of dial DN 100
- Surrounding working temperature: -40 °C to 60 °C
- The temperature of medium: -20 °c to 200 °C
- Meeting requirements EN 837-1, class of accuracy CL 1.0 %
Technical parameters of the sanitary diaphragm
- Connection DIN CLAMP DN 40 (50,5 mm) Tri clamp standard DIN 32676
- Inner thread BSP 1/2"
- The material of the separating diaphragm: DIN 1.4404 (AISI 316L), Ra≤0.8 µm
- The material of CLAMP separator: DIN 1.4301 (AISI 304)
- Filling of the separating diaphragm: food-grade oil
- Diaphragm designed on pressure range: 0–60 bar
- Working tempratures: -45 °C …150
Compatible accessories
Sanitary diaphragm CLAMP DIN 32676, collar 50.5…
Technical data of the sanitary diaphragm, CLAMP connection DIN 32676: connection DIN…
Price from
67,63 €
Sanitary diaphragm, CLAMP DIN 32676, collar 64 mm…
Technical data of the stainless steel Sanitary diaphragm: connection: DIN 32676 CLAMP…
Price from
67,63 €
Heavy Duty CLAMP I. DN25/32/40 (K50.5)
Properties: TRI CLAMP standard: DIN 32676 Type: clamp collar 50,5 mm Material: stainless…
Price from
5,22 €
Clamp Gasket - Silicone DN40 (50.5)
Properties: Standard: DIN 32676 Material: silicone FDA atestation on request Fields of…
Price from
0,47 €
Similar products
Stainless Steel Pressure Gauge, Dial 63 mm, With…
This type of pressure gauge (manometer) is used to measure the pressure of liquids and…
Price from
99,81 €
Stainless Steel Pressure Gauge, Dial 100 mm,…
The devices in this category must be assembled and filled using components available from…
Price from
108,08 €

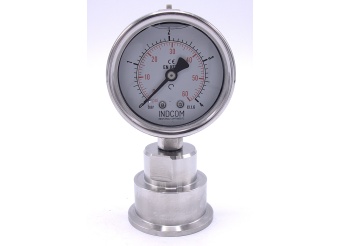

Stainless Steel Pressure Gauge, Dial 63 mm, With…
