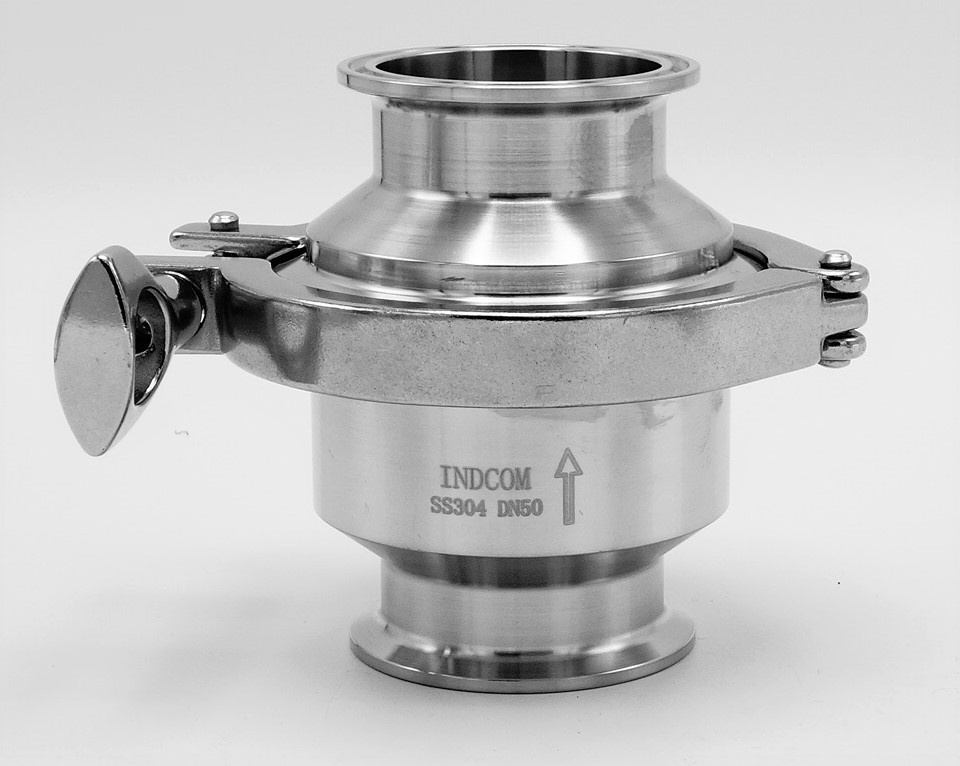

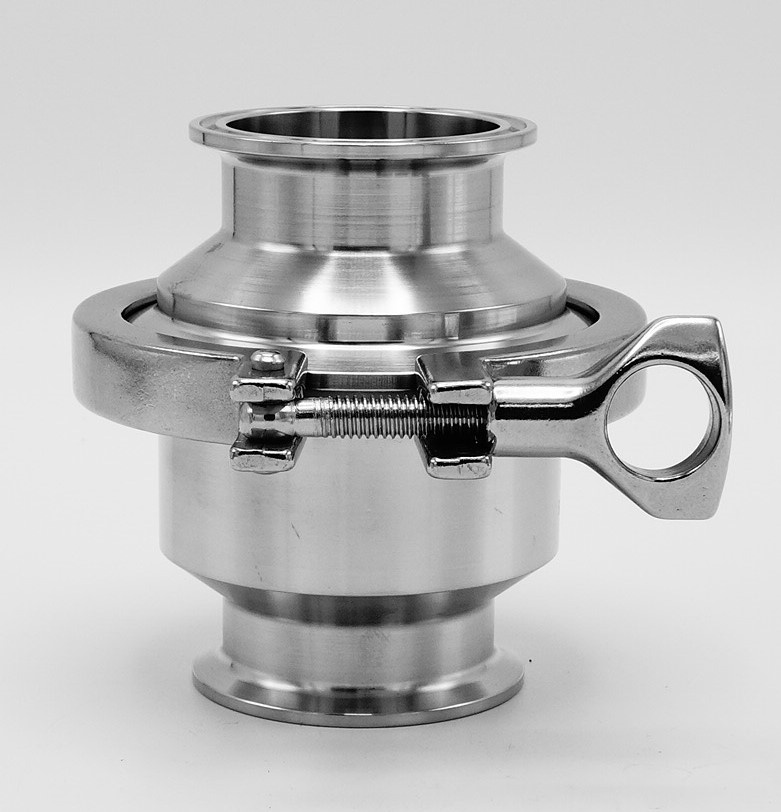

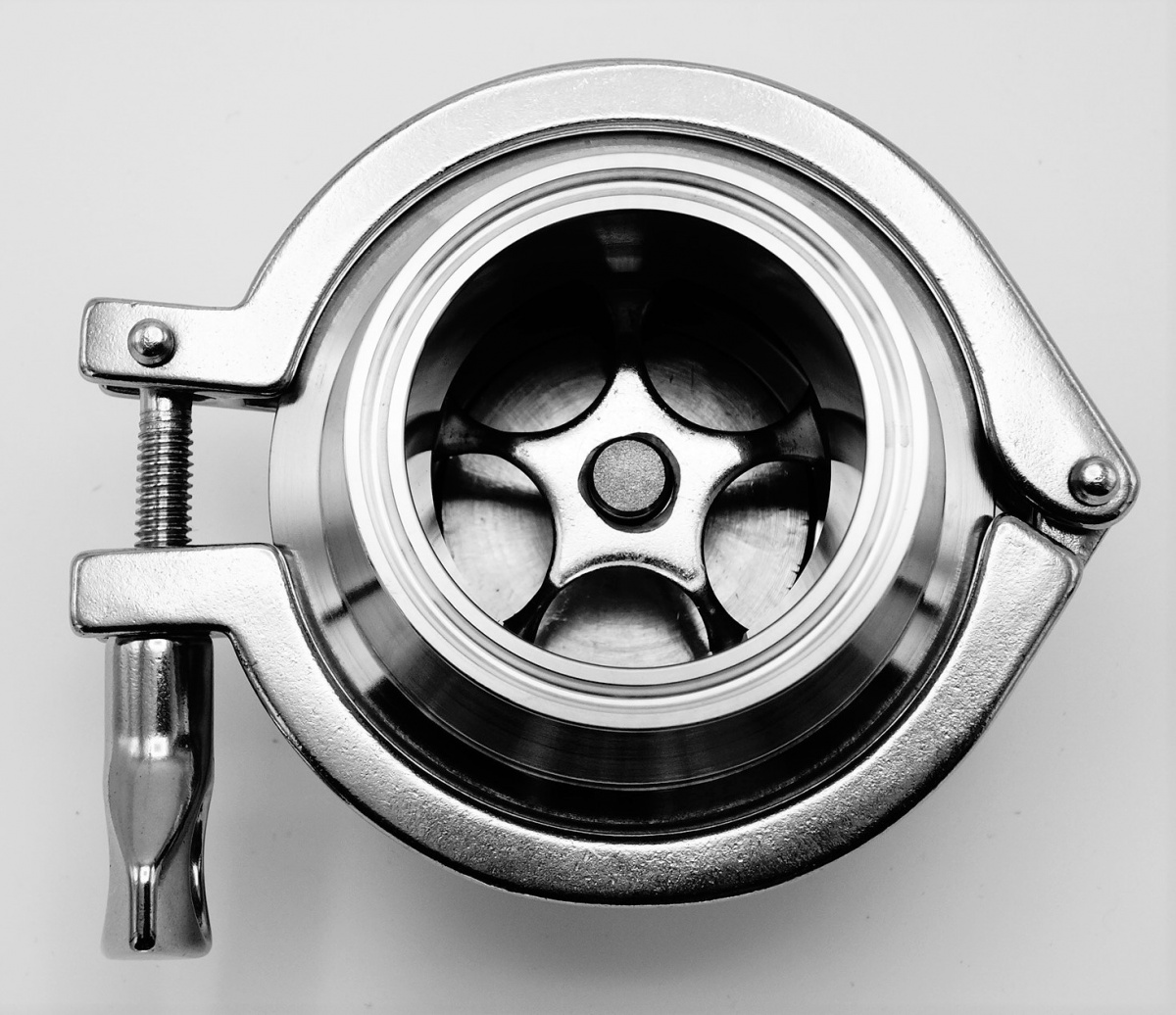

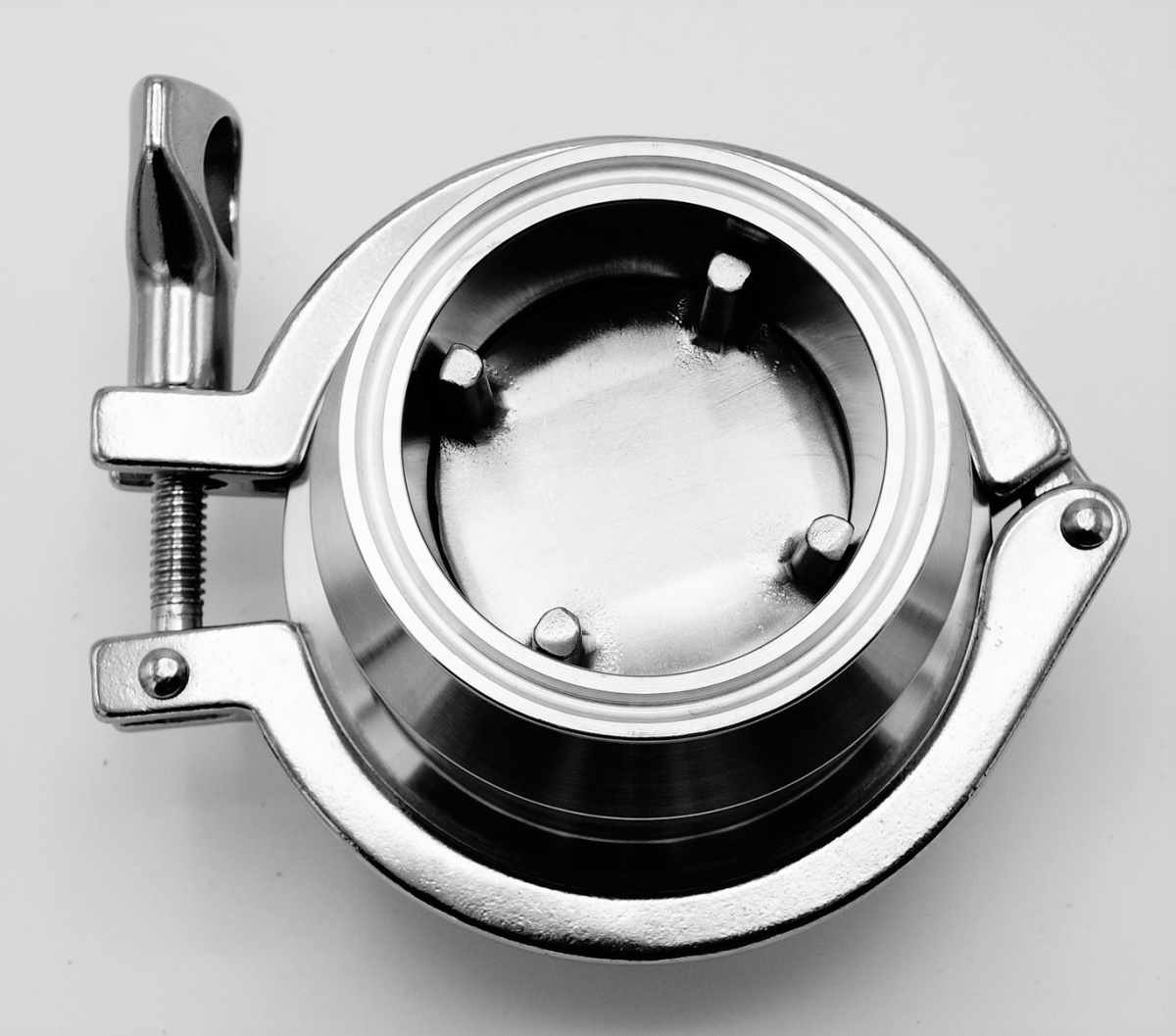

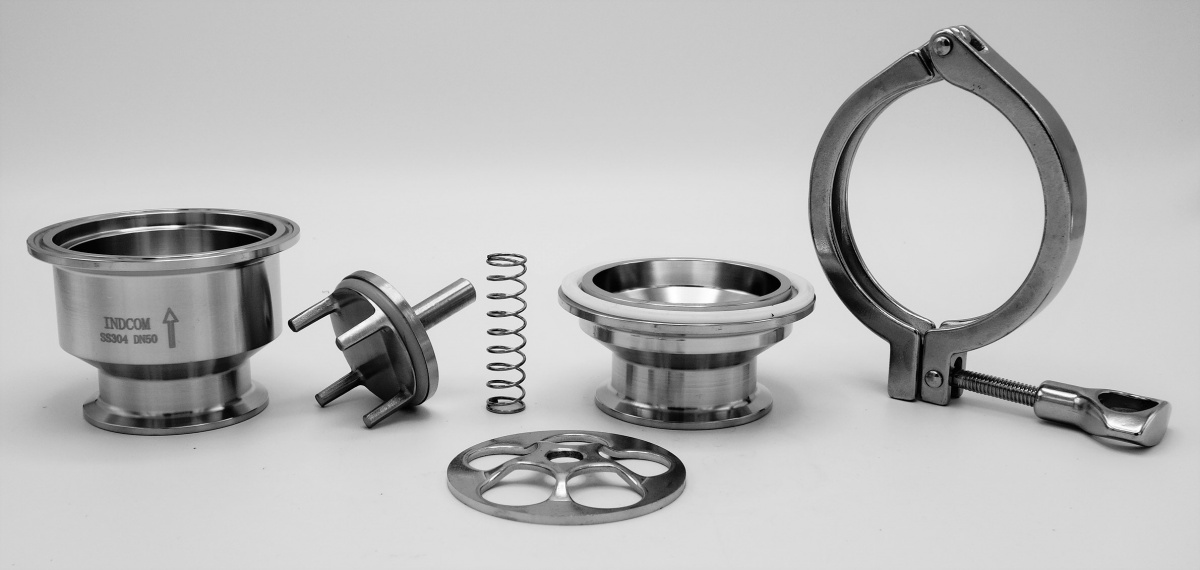

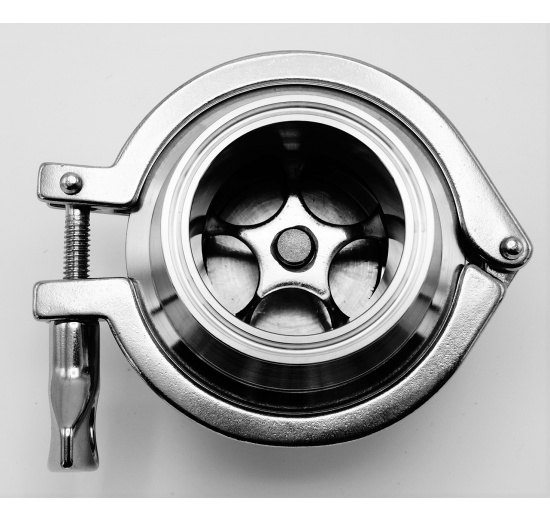

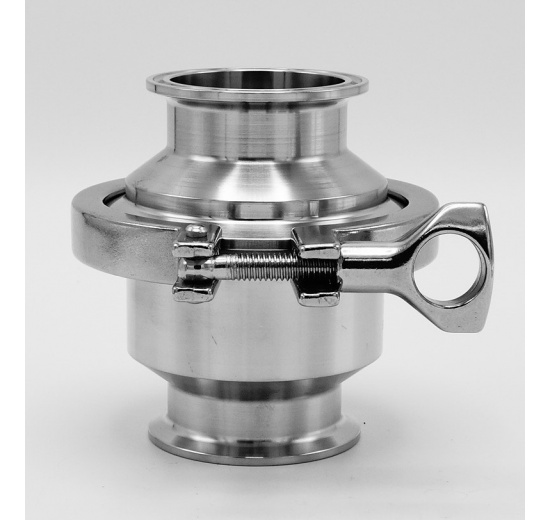

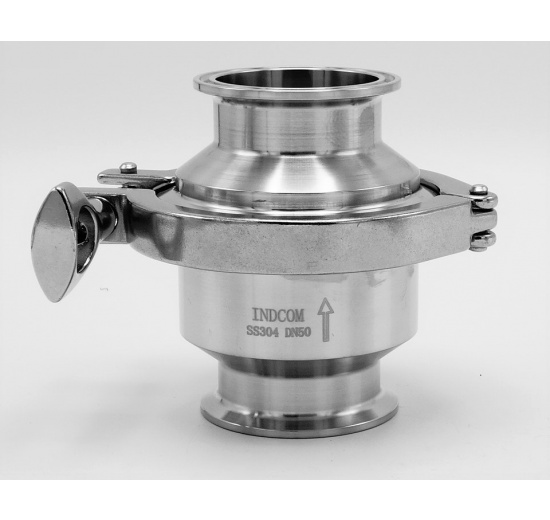

Basic information
| Standard | DIN |
| Type | 2-piece, clamp connection, DN50 |
| Maximal working pressure | 6 bar |
| Material | stainless steel 1.4301 (AISI 304) |
| Maximal working temperatures | –10 °C/120 °C |
| Gasket | EPDM (Ethylen-propylen), black color |
Diameters

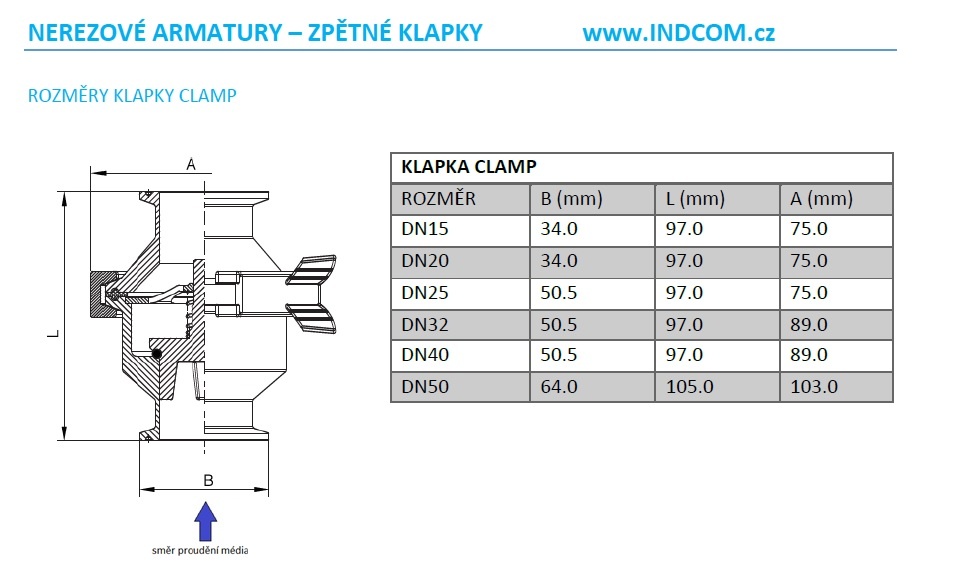

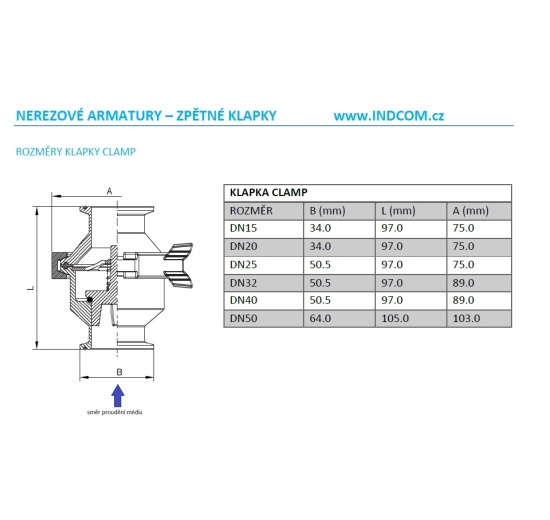

- see data sheet
- ID: 49 mm
Most common areas of check valves applications
Wineries, breweries, dairy industry, beverage industry, food processing, pharmaceuticals etc.
Compatible accessories
Heavy Duty CLAMP I. DN50 (K64)
Properties: Standard: DIN 32676 Type: CLAMP collar 64 mm Material: stainless steel 1…
Clamp Gasket - Silicone DN50 (K64)
Properties: Standard: DIN 32676 Material: silicone FDA atestation on request Fields of…
CLAMP Gasket EPDM DN50
Properties: Type: DN50, clamp ferrule 64 mm DIN 32676, without collar Material: ethylen…
More from the category
Sanitary stainless steel check valve, clamp type C-C

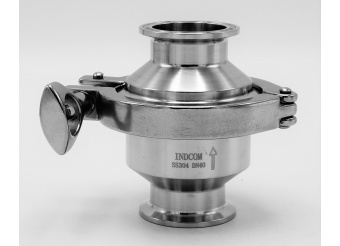

Stainless Steel Check Valve, CLAMP C-C DN40
