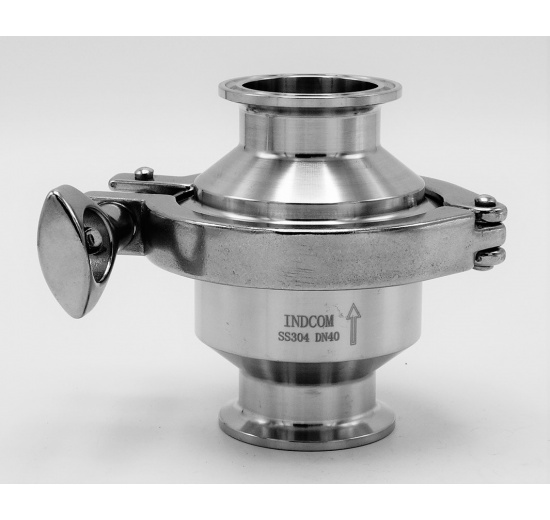

Basic information
| Standard | DIN |
| Max. working pressure | 6 bar |

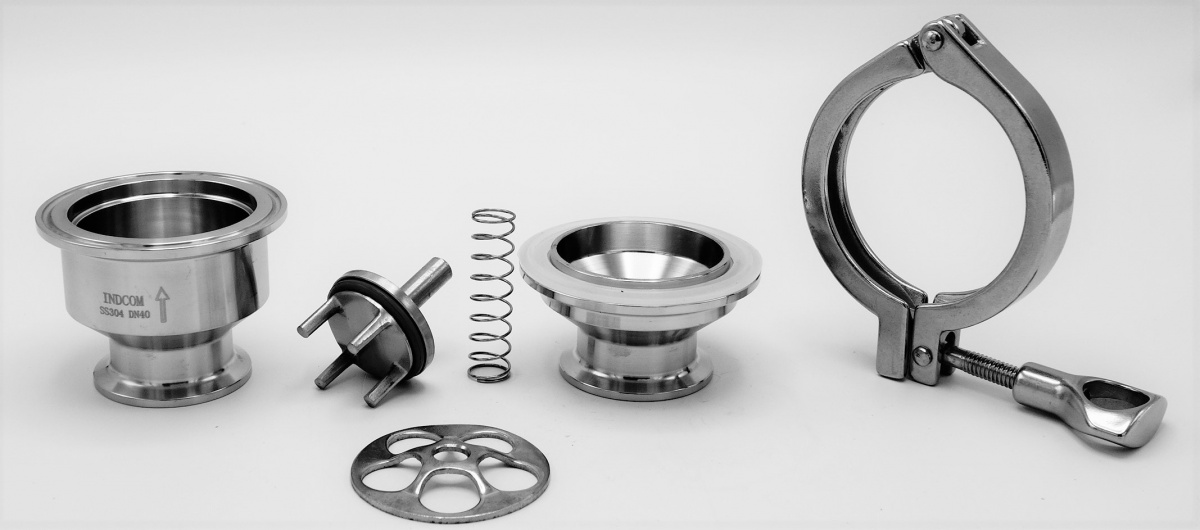

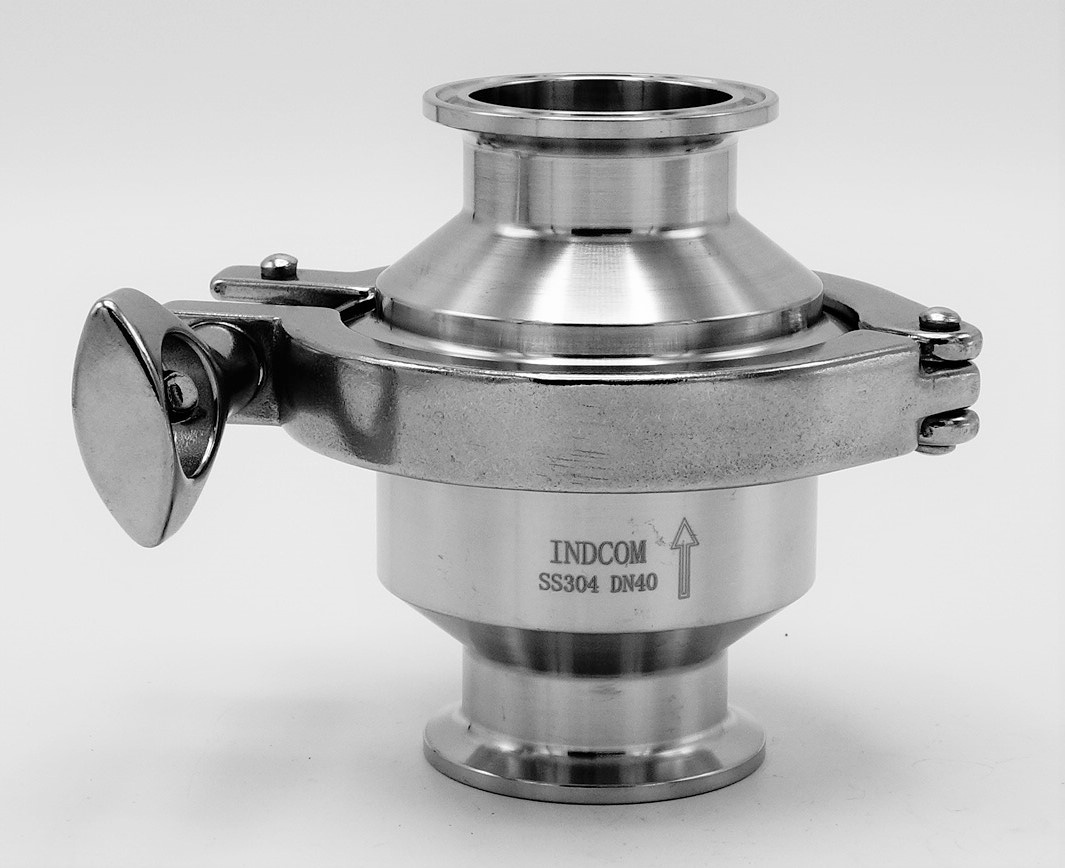

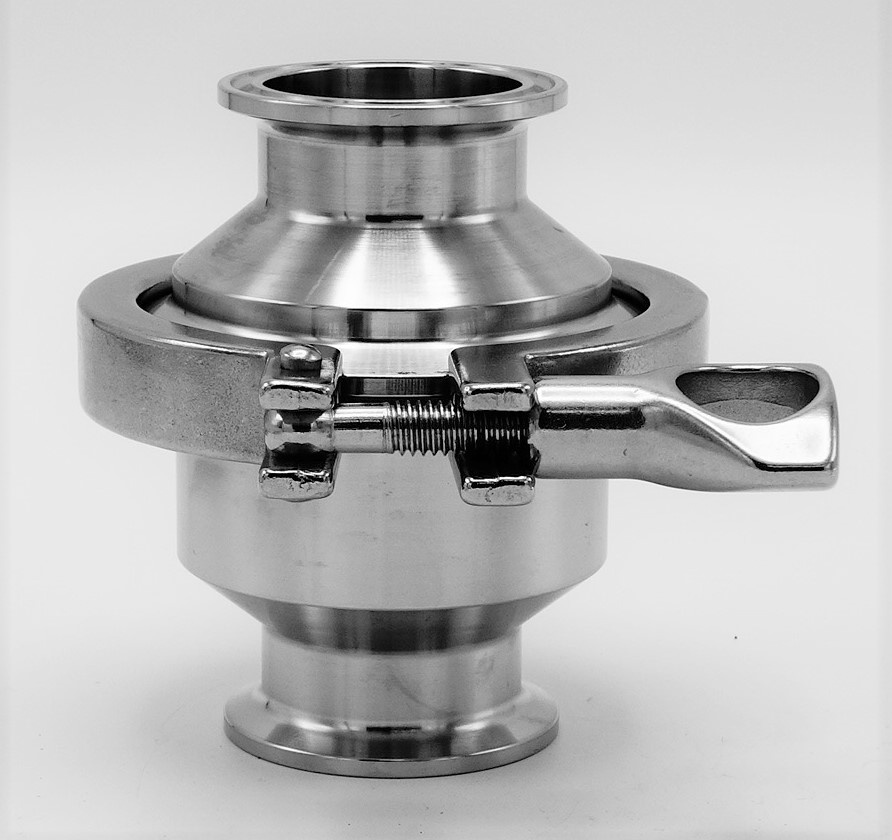

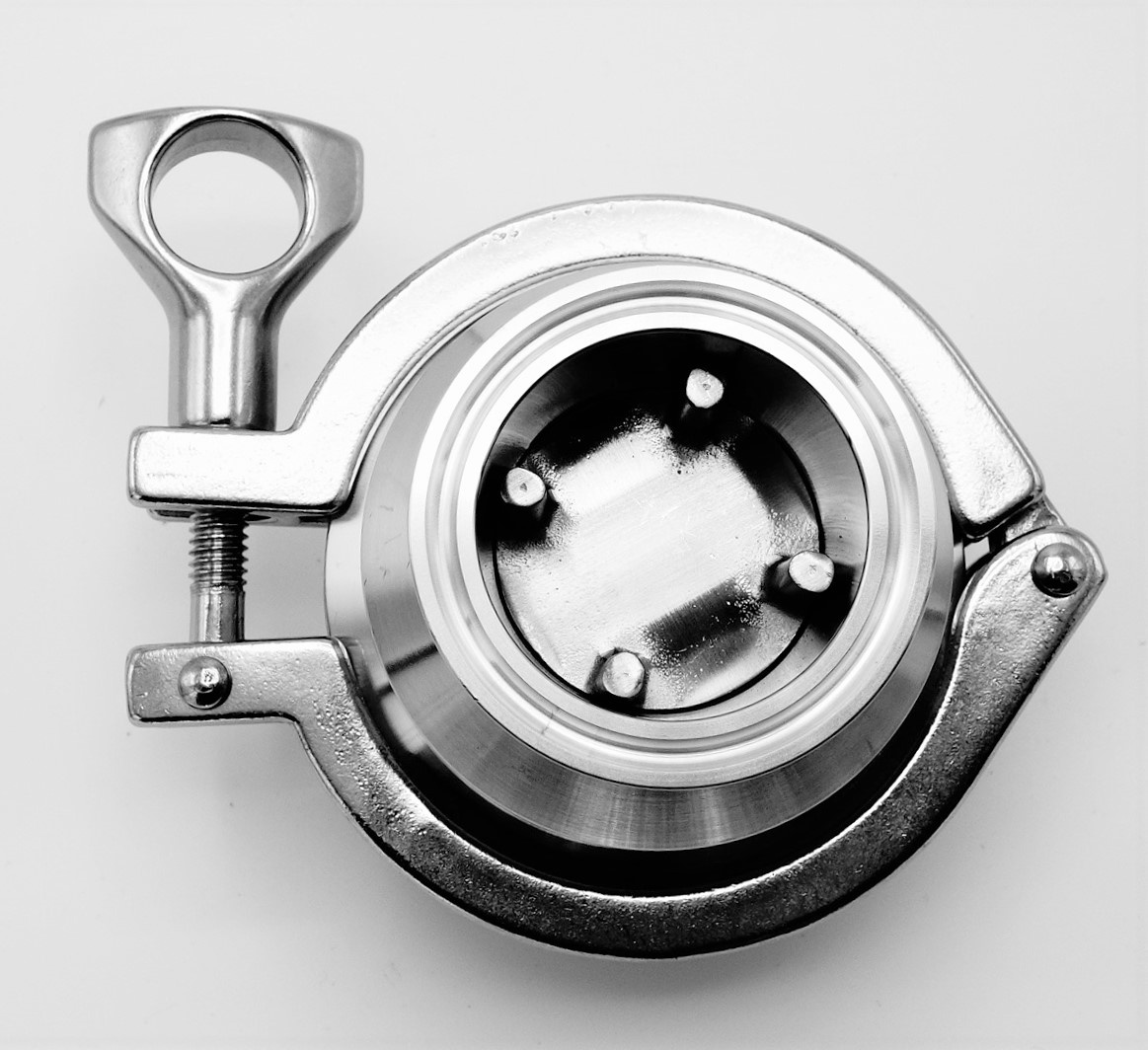

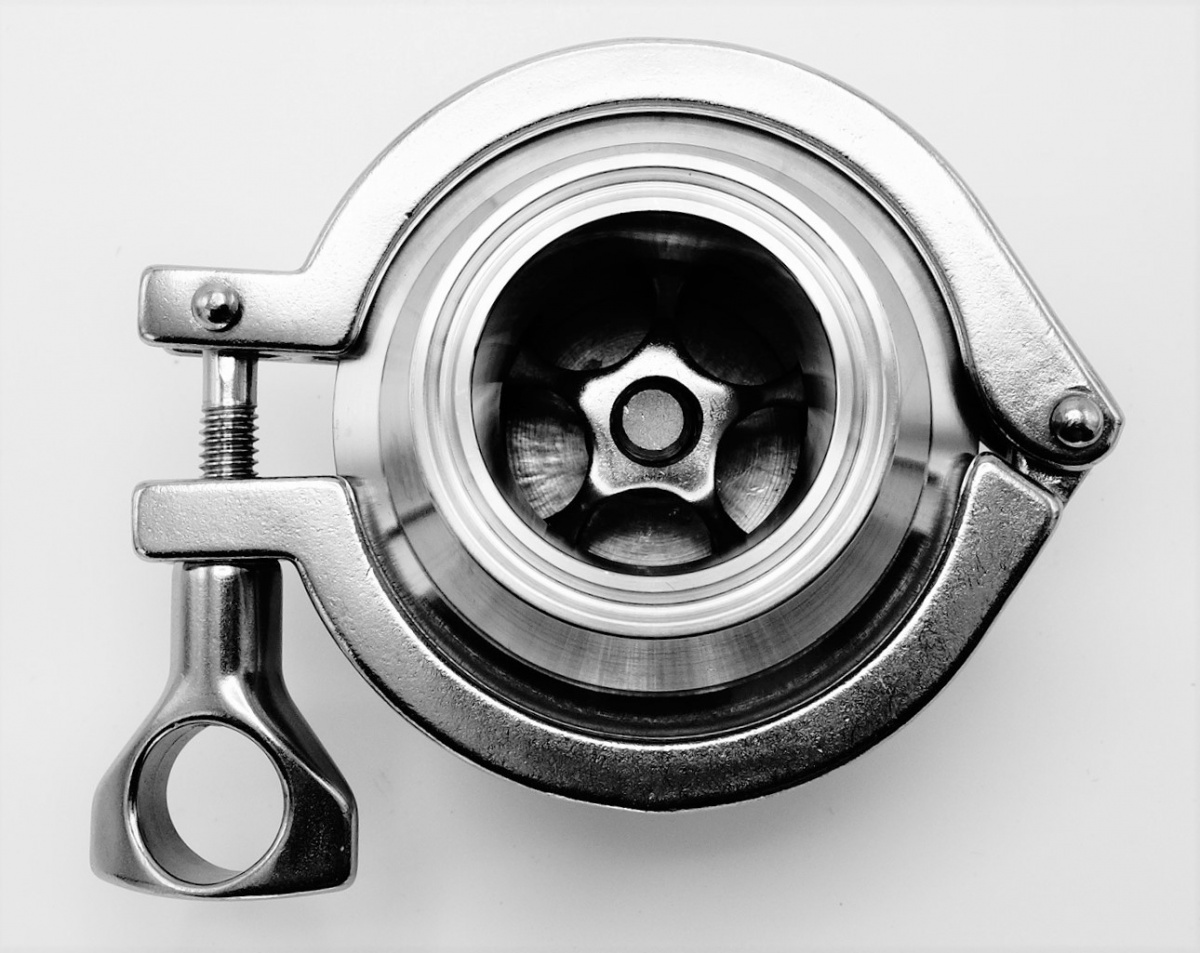

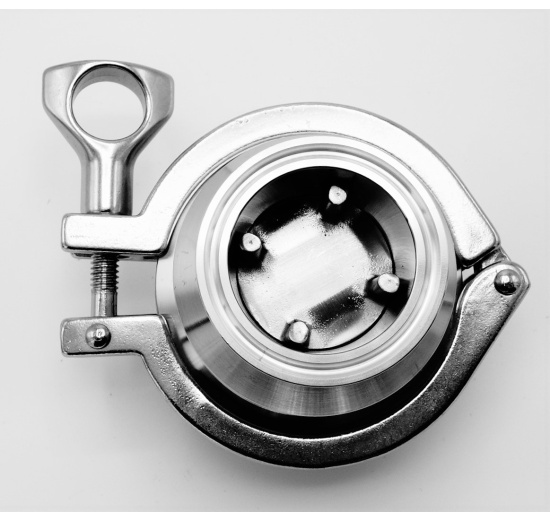

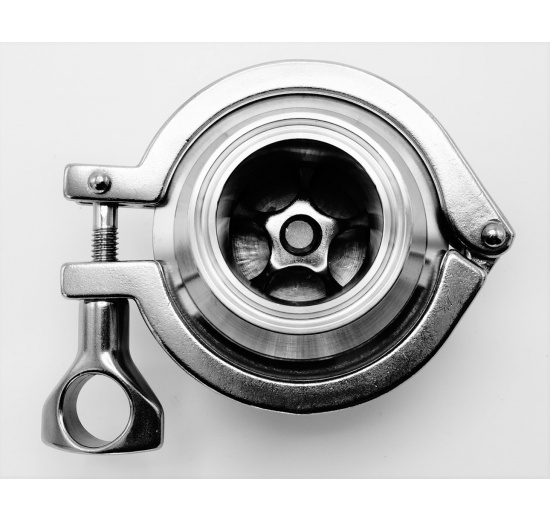

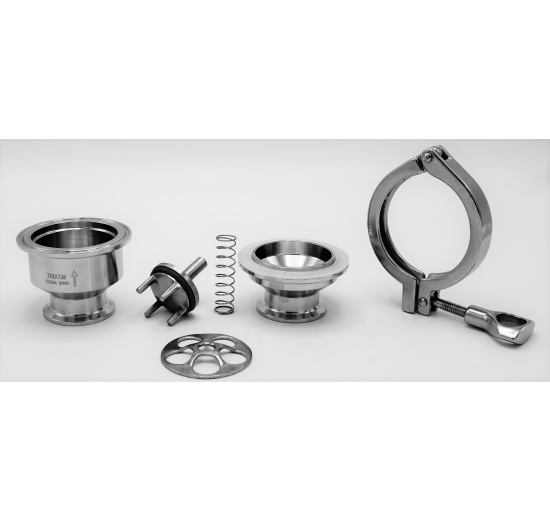

| Type | 2-piece, clamp connection DN40 |
| Material | stainless steel 1.4301 (AISI 304) |
| Max. working temperature | –10 °C/120 °C |
| Gasket | EPDM (Ethylen-propylen), black color |
Diameters

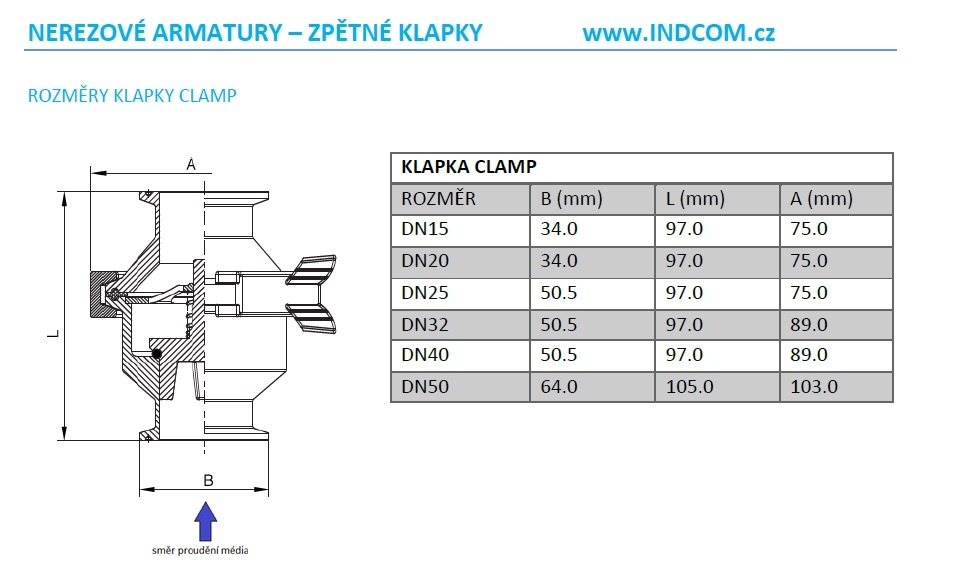

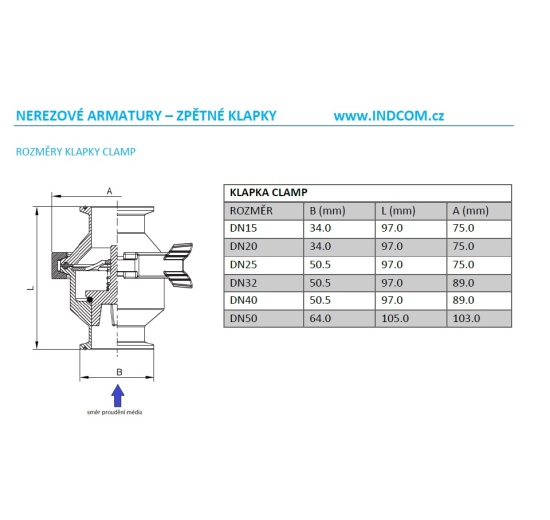

- see data sheet
- ID: 37 mm
Most common areas of check valves applications
Wineries, breweries, dairy industry, beverage industry, food processing, pharmaceuticals etc.
Compatible accessories
Heavy Duty CLAMP I. DN25/32/40 (K50.5)
Properties: TRI CLAMP standard: DIN 32676 Type: clamp collar 50,5 mm Material: stainless…
Clamp Gasket - Silicone DN40 (50.5)
Properties: Standard: DIN 32676 Material: silicone FDA atestation on request Fields of…
CLAMP Gasket EPDM DN40
Properties: Type: DN40, clamp ferrule 50.5 mm DIN 32676,without collar Material:…

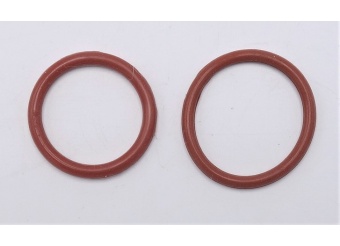

Spare Gasket (O-ring) For Stainless Steel Check…
