Basic information

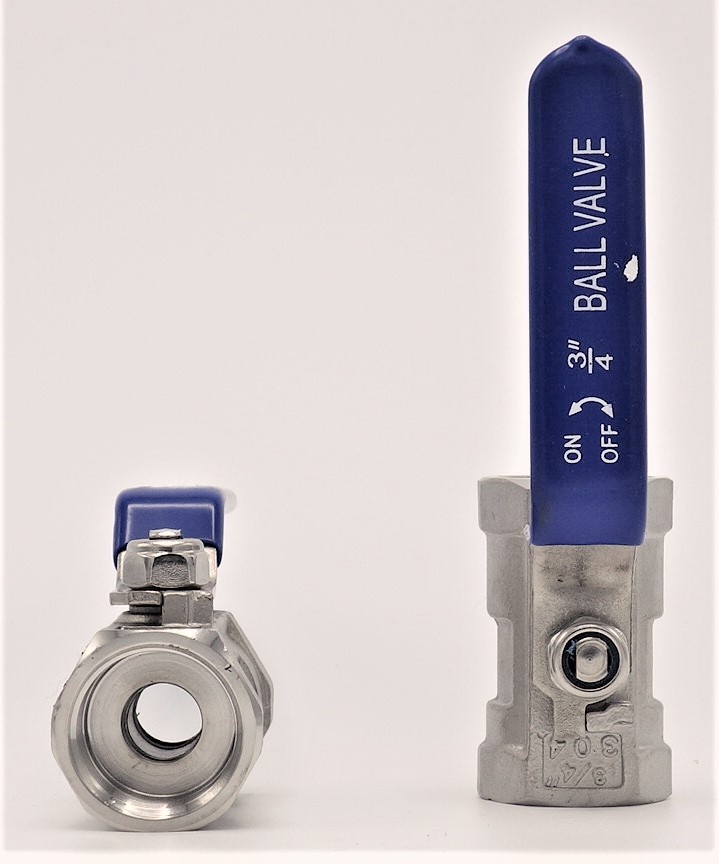

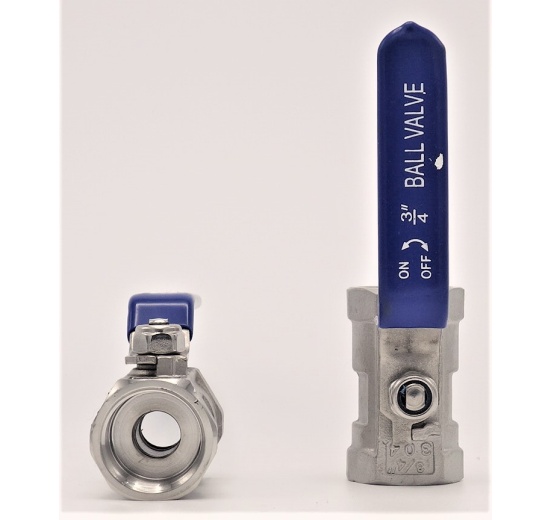

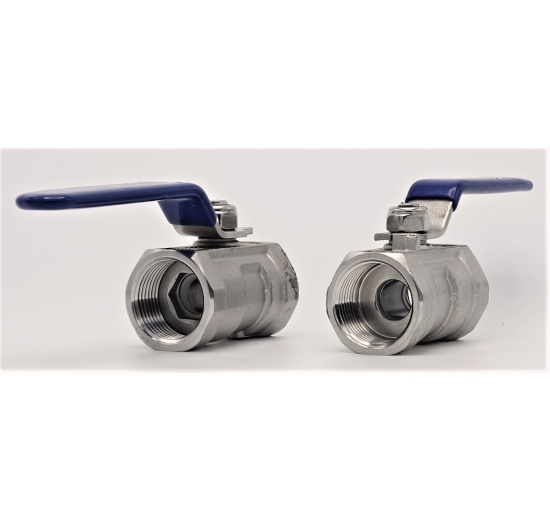

| Construction | one-piece ball valve made of stainless steel with reduced bore |
| Control | manual- by lever |
| Connection | inner thread BSP-G ¾" (DN20) |
| Pressure range | Maximal 69 bar (1000PSI) |
| Maximal working temperatures | -20°C/160°C |
| Material | body and ball 1.4301 (AISI 304), seat PTFE, gasket PTFE |
| Designed for | liquid, water, oil |
Montage
The ball valves are connected by screwing into a suitable counterpart. We recommend preserving the fittings with Loctite 8105 grease.
Most common areas of three-piece ball valve applications
Winery, breweries, dairy industry, beverage industry, food processing, pharmaceuticals, etc.
