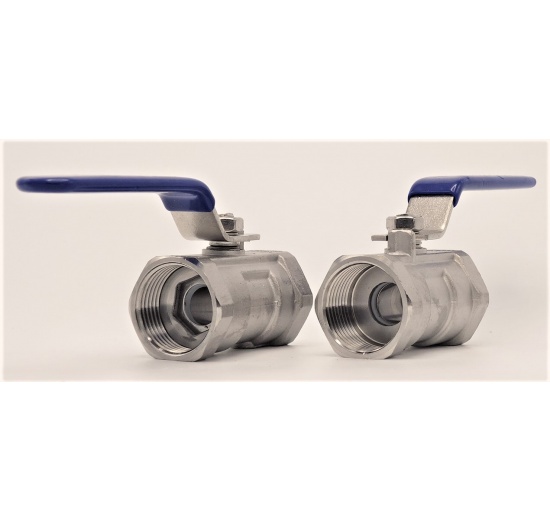

Stainless Steel Ball Valve With Reduced Bore, One-piece, Threaded 1”

Nerezový kulový kohout s redukovaným průtokem, jednodílný, závitový 1”

Stainless Steel Ball Valve With Reduced Bore, One-piece, Threaded
1”

Code: MB1011_1
Weight: 0,29 kg

Variant

Quantity

6,61 €

Prices are stated without VAT

Purchase in CZK

IN STOCK

Ask a technician

Basic information

Construction	stainless steel one-piece ball valve with a reduced bore.
Control	manual– by the lever
Connection	inner thread BSP-G 1" (DN25)
Pressure range	Maximal 69 bar (1000PSI)
Maximal working temperature	-20°C/160°C
Material	body and ball 1.4301 (AISI 304), seat PTFE, gasket PTFE
Designed for	liquid, water, oil

Montage

The ball valves are connected by screwing into a suitable counterpart. During the mounting, we recommend preserving the fittings with Loctite 8105 grease.
