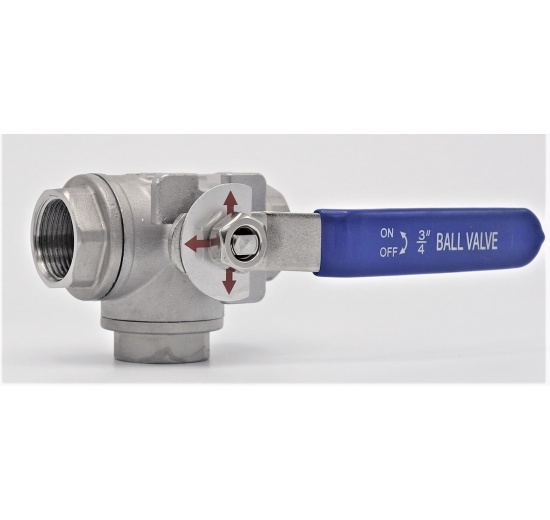

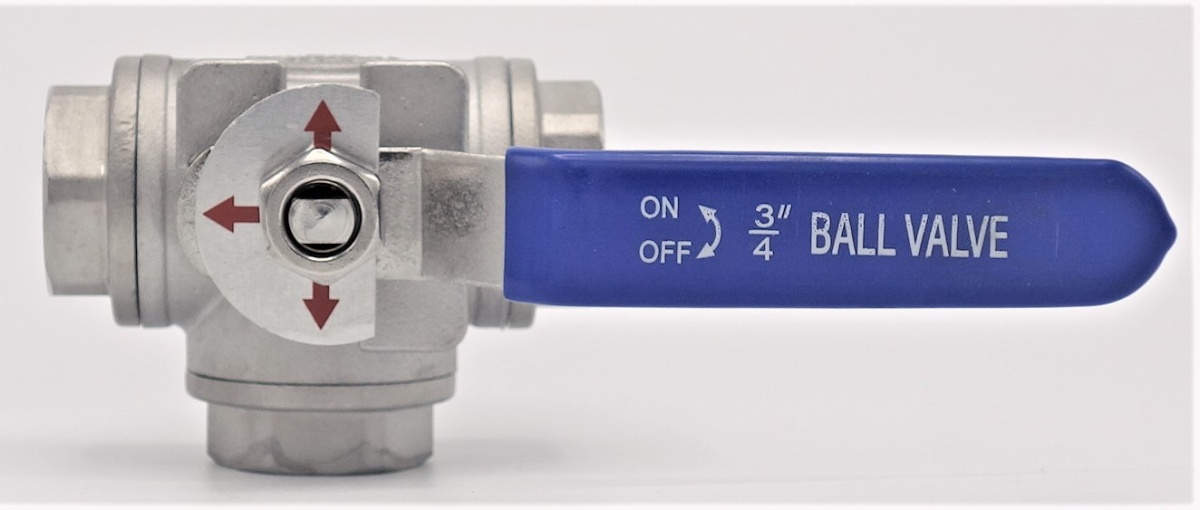

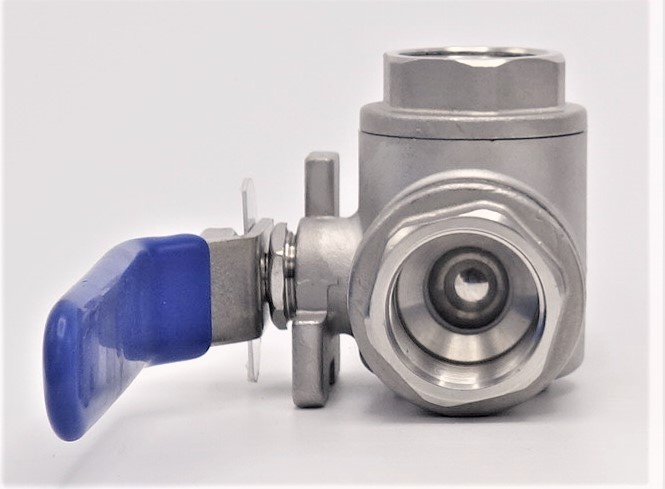

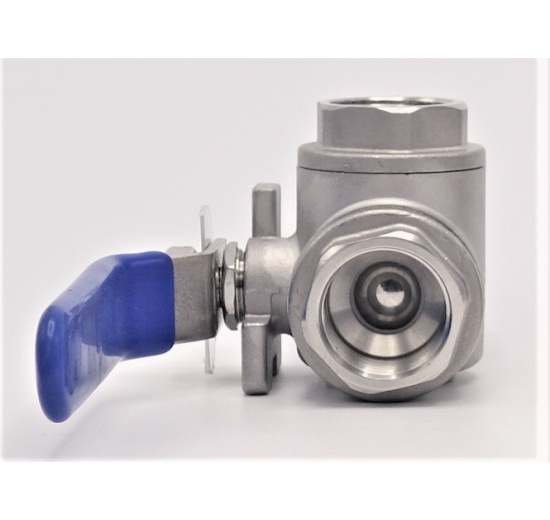

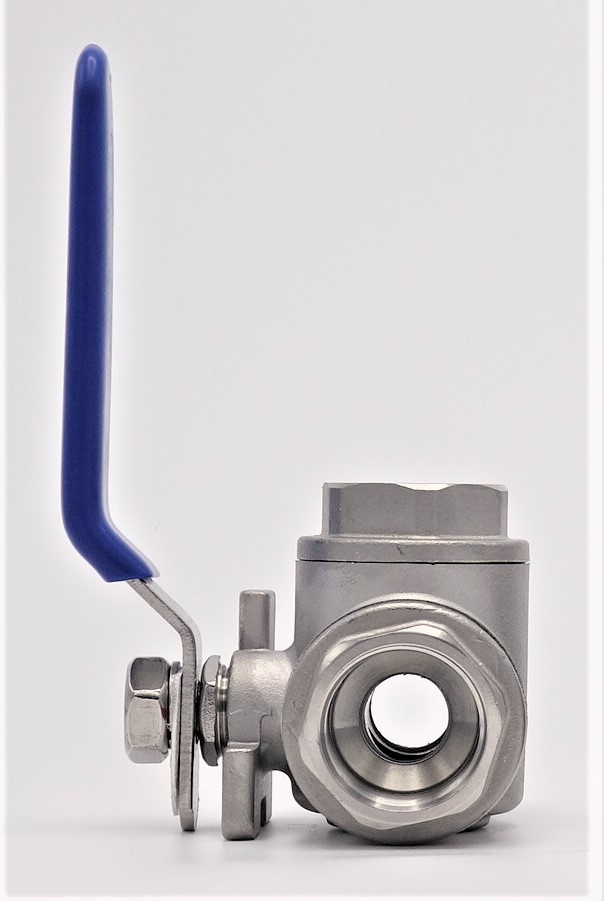

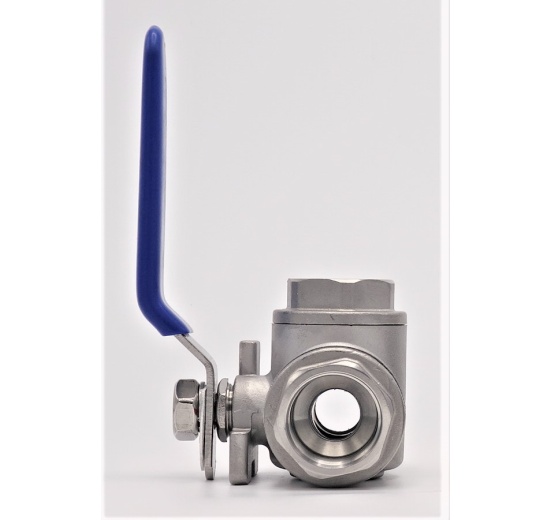

Basic information
| Control | manual, by lever |
| Connection | threaded BSP-G, 3/4" |
| Pressure range | Maximal 69 bar (1000PSI) |
| Working temperatures | 0–120°C |
| Material | body and ball 1.4301 (AISI 304), seat PTFE, gasket PTFE |
| Designed for | liquid, water, oil |
Montáž
Kulové kohouty se připojují zašroubováním do vhodného protikusu. Doporučujeme při montáži provést konzervaci šroubení potravinářskou vazelinou Loctite 8105.
Most common areas of three-piece ball valve aplication
Winary, breweries, dairy industry, beverage industry, food processing, pharmaceuticals etc.
Compatible accessories
CLAMP 50.5 mm_ Threaded Adapter DN20_Outer thread…
Properties: Connection: Tri clamp collar 50.5 mm, inner thread 3/4" Inner diameter: 18.5…
More from the category
Stainless ball valve, three- way, threaded, drilling "T"

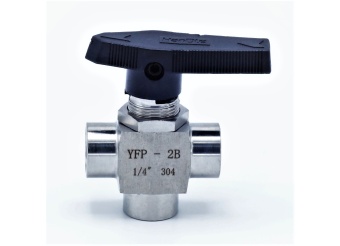

MINI Stainless Steel Ball Valve, Three- way,…
