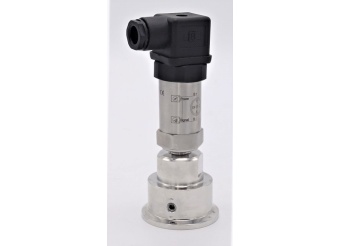

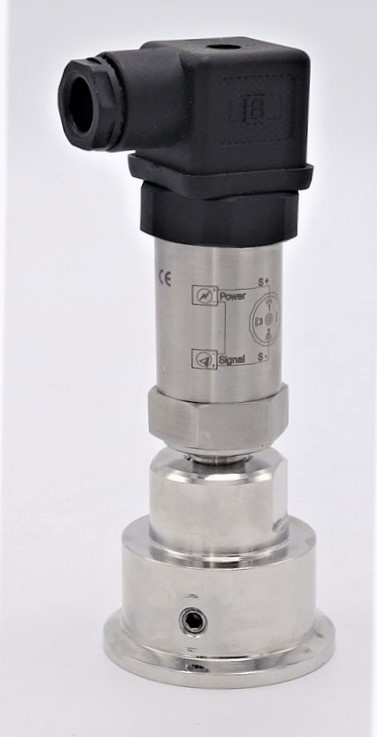

Relative pressure transmitter with separating membrane DN50 (64 mm)
0-10 bar

Function: Changing the measured pressure will cause the sensor diaphragm to deflect. This change is converted to a 4-20 mA output signal.

• Typ měřené hodnoty tlaku: Relativní
• Minimum measured pressure value: 0 bar
• Maximum measured pressure value: 10 bar
• Connection type: male thread 1/4"(1/2") BSP
• Accuracy: <0.5 %
• Output: 4 - 20 mA
• Supply voltage: 24 VDC
• Connector: Hersman DIN43650
• Case material: Stainless steel AISI 304
• Membrane material: Stainless steel AISI 316
• Sensor material: silicon
• Degree of protection IP: IP 65
• Temperature range of the measured medium: -25 ° C ～ +85 ° C
• Response time: 10 ms
• Influence of ambient temperature: 0-50 ° C from the upper limit of the range <0.5%, -20 ° C to +80 ° C from the upper limit of the range <1%
• Seal: Viton
• Overload capacity: 150% of the measured range
• Suitable for materials compatible with stainless steel AISI 304.

• Connection DIN32676 CLAMP DN50 (collar 64 mm), female thread BSP 1/2"
