Basic information
| Standard | DIN |
| Type | clamp connection, DN25 - CLAMP 50.5 mm |
| Working pressure | 0–8 bar |
| Material | stainless steel 1.4404 (AISI 316L) |
| Maximal working temperature | –10 °C to 100 °C |
| Sterilization temperature | 150 °C (max. 20min) |
| Gasket | PTFE |
| Diaphragm | VMQ (silicone) |
| Control | pneumatical actuator ( air pressure 5–8 bar) |
| Material pneumatical head | plastic |

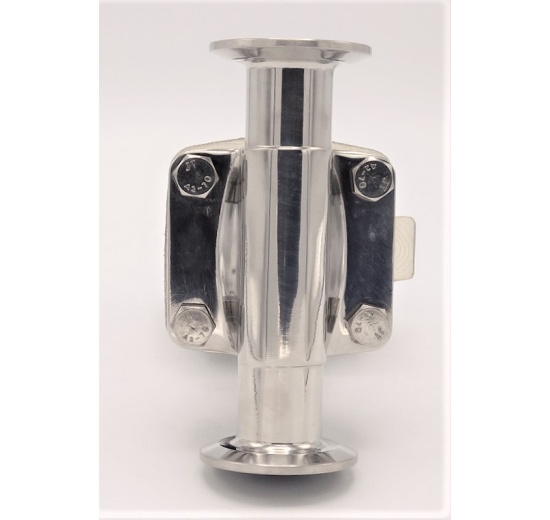

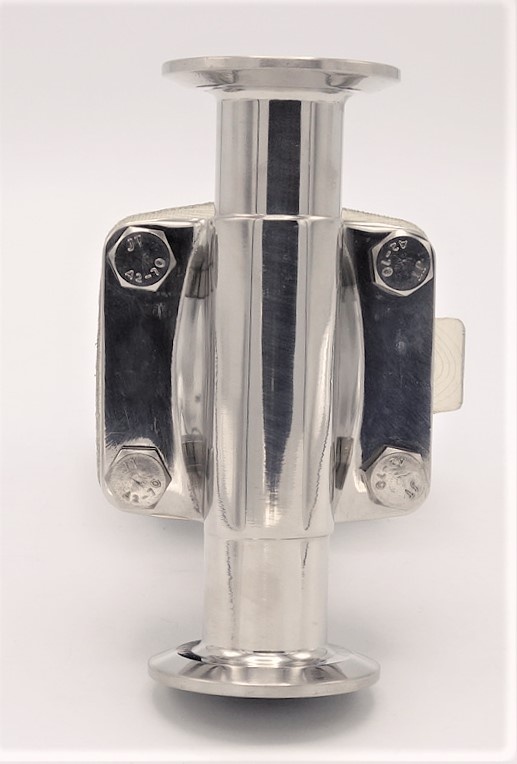

Dimensions see dimensioned photo
| Length(mm) | 131 |
| Height including pneumatic actuator (mm) | 175 |
| The inner diameter of a stainless valve (mm) | 23 |
| The outer diameter of a stainless valve (mm) | 27 |
| Clamp collar (mm) | 50.5 |
Application areas of diaphragm valve
Wineries, breweries, dairy industry, beverage industry, food production, is widely used in pharmacy, etc.
