Basic information
| Standard | DIN32676 |
| Type | pro CLAMP collar 91 mm |
| Material | SS stainless steel 1.4301 (AISI 304) |
| Working pressure | max.16 bar |
| Type | DN65 |

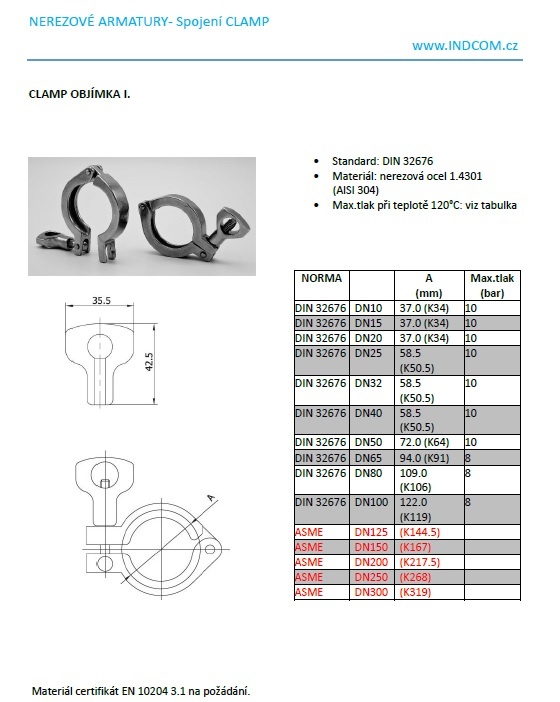

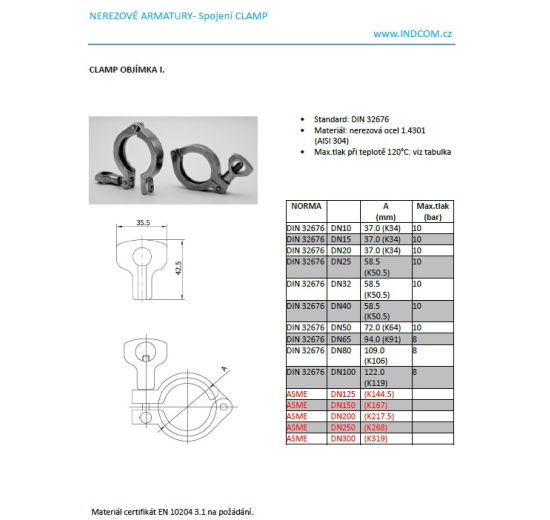

| Diameter | 94 mm (see data sheet) |
Oblasti použití lité klamp objímky
Intended for applications in winemaking, brewing, the food and beverage industry, the dairy industry, refrigeration, water management, the chemical industry, etc.
Material certificate EN 10204 3.1 available upon request.
- CLAMP system (CLAMP connection) enables quick and precise assembly and disassembly,
- easy expansion of the system with new components,
- a major advantage of the CLAMP system is easy sanitation.
- Standard for DN10–DN100: DIN 32676, pipe DIN 11850
- Standard for DN125–DN300: DIN 32676 (ASME-BPE 2009)
