Basic information
| Working medium | air, water, oil |
| Hole | 2,5 mm |
| Working pressure | 0-0,7 MPa (0-7 bar) |
| Max. working pressure | 1.0 MPa (10bar) |
| Application | neutral gases, liquids |
| Liquid viscosity | ≤21 mm2/s |
| Working temperature | –5 ℃~+80 ℃ |
| Valve body material | AISI 304 stainless steel |
| Seal material | NBR |
| Voltage | AC 24V |
| Ingress Protection | IP65 |
| Flow rate | 3.6 m³/h |

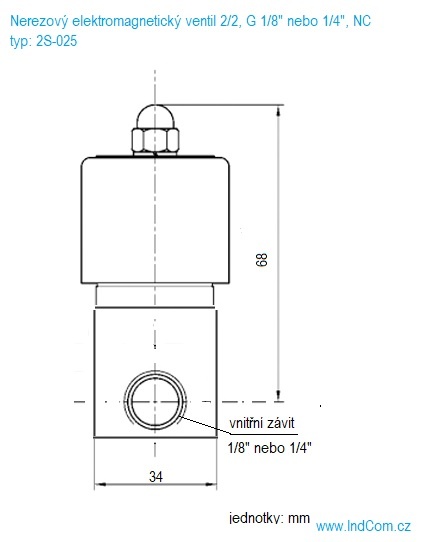

| Dimensions | 68,5x34x78,5mm |
The valves are supplied with a coil (valve without a connector).
