Basic information

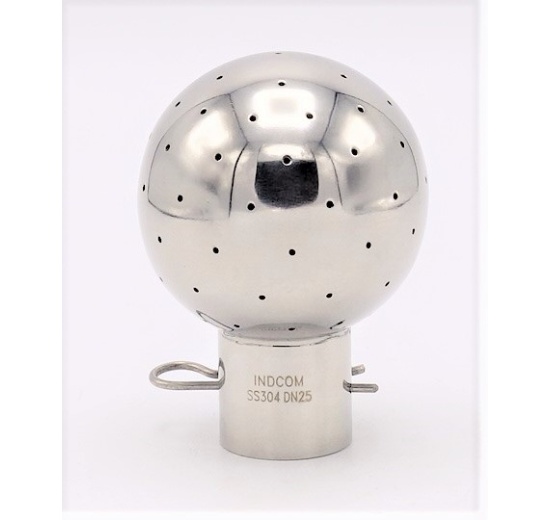

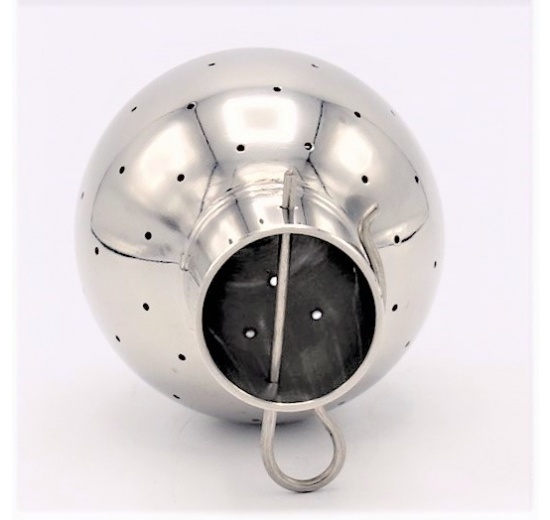

Fixed Cleaning Ball, on Split Pin | 26/29 mm
| Connection | inner/outer diameter of connecting pipe 26/29 mm, on split pin |
| Max. working temperature | 95 °C |
| Max. ambient temperature | 140 °C |
| Cleaning radius (pressure 1 bar) | 3.3 m |
| Hole size | 1.6 mm |
| Flow | 8,6 m3/h |
| Cleaning angle | 360° |
| Material | stainless steel 1.4301 (AISI 304) |
| Ball diameter | 63 mm |
| Overall height | 86 mm |
Connection diameters
| Inner diameter (mm) | 26 |
| Outer diameter (mm) | 29 |
| Wall thickness (mm) | 1,5 |
The fixed washing head is suitable for applications with a lower cleaning requirement. Tanks, containers, barrels, vats, molds and pans.
