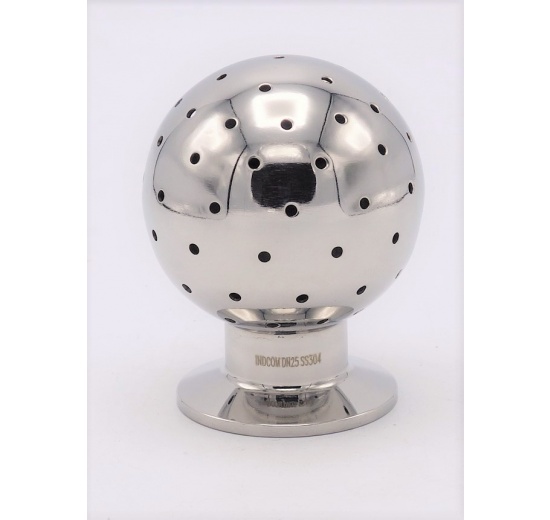

Fixed Cleaning Ball, CLAMP Connection DN25

Fixed Cleaning Ball, CLAMP Connection
DN25

Code: FCBC_25
Weight: 0,18 kg

A fixed cleaning ball is suitable for applications with lower cleaning requirements: tanks, containers, KEGs etc.

The CLAMP system according to DIN 32676 is used for connecting pipeline components in hygienic processes. It enables quick, secure, and easily detachable connections of hoses, pipes, fittings, valves, or filters without the need for tools. It is used in environments where high cleanliness and frequent disassembly are required (CIP/SIP processes).
Hygienic design without dead zones
A major advantage of the CLAMP system is its easy sanitation.

Variant

Quantity

395,00 Kč

Prices are stated without VAT

Purchase in €

IN STOCK

Ask a technician

Basic information

Type of connection	CLAMP DIN 32 676 - collar 50,5 mm
Pipe	DN25
Pressure	1.5 to2.5 bar
Maximal working temperature	95 °C
Maximal surrounding temperature	140 °C
Radius of cleaning	1.0–1.25 m
Size of holes	2.5 mm
Flow	17 m3/h
Angle of cleaning	360°
Material	stainless steel 1.4301 (AISI 304)
Diameter of ball	63 mm

Application areas

Applications with a lower cleaning requirement: tanks, containers, barrels, KEGs.

Intended for applications in winemaking, brewing, the food and beverage industry, the dairy industry, refrigeration, water management, the chemical industry, etc.
