Basic information

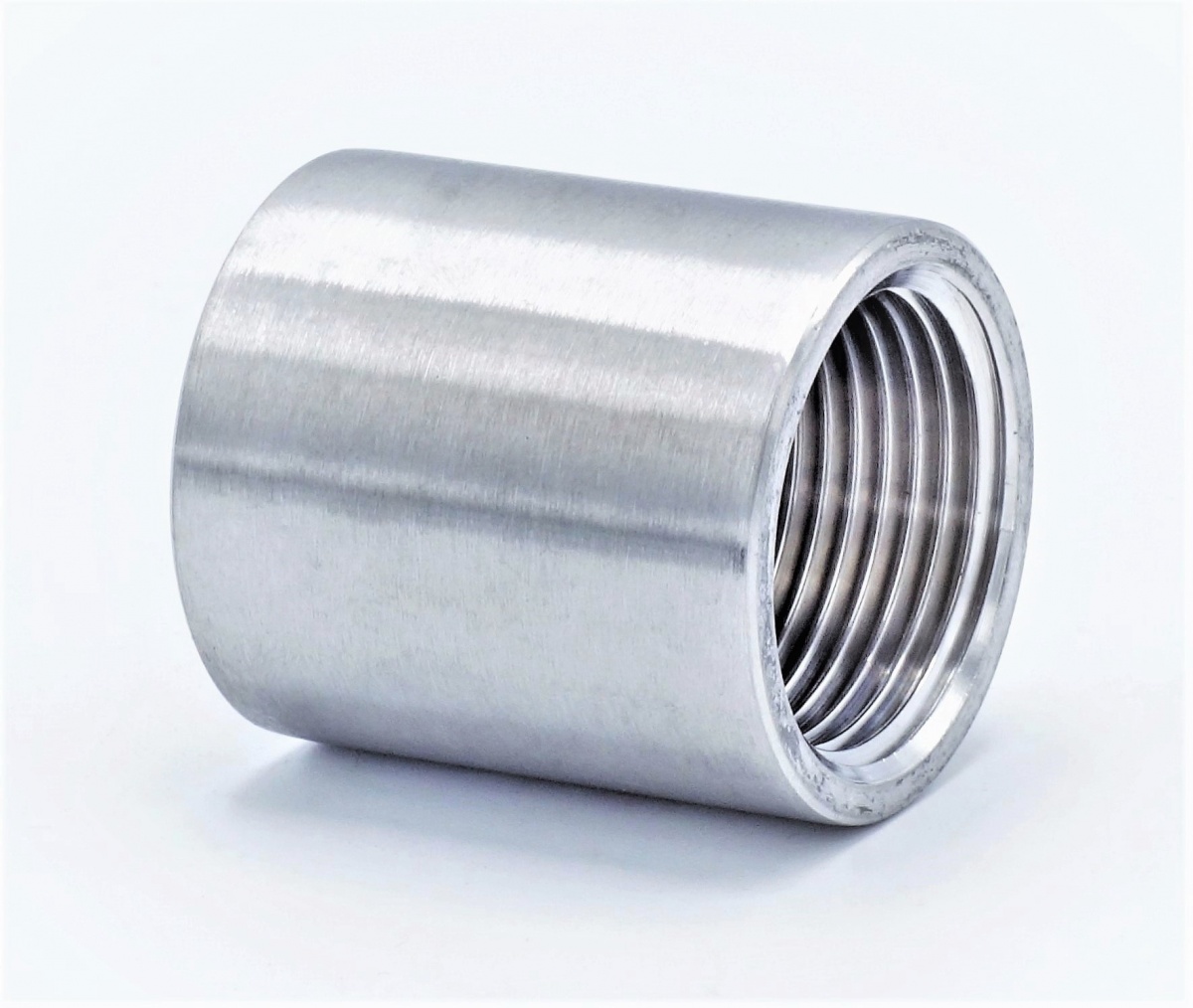

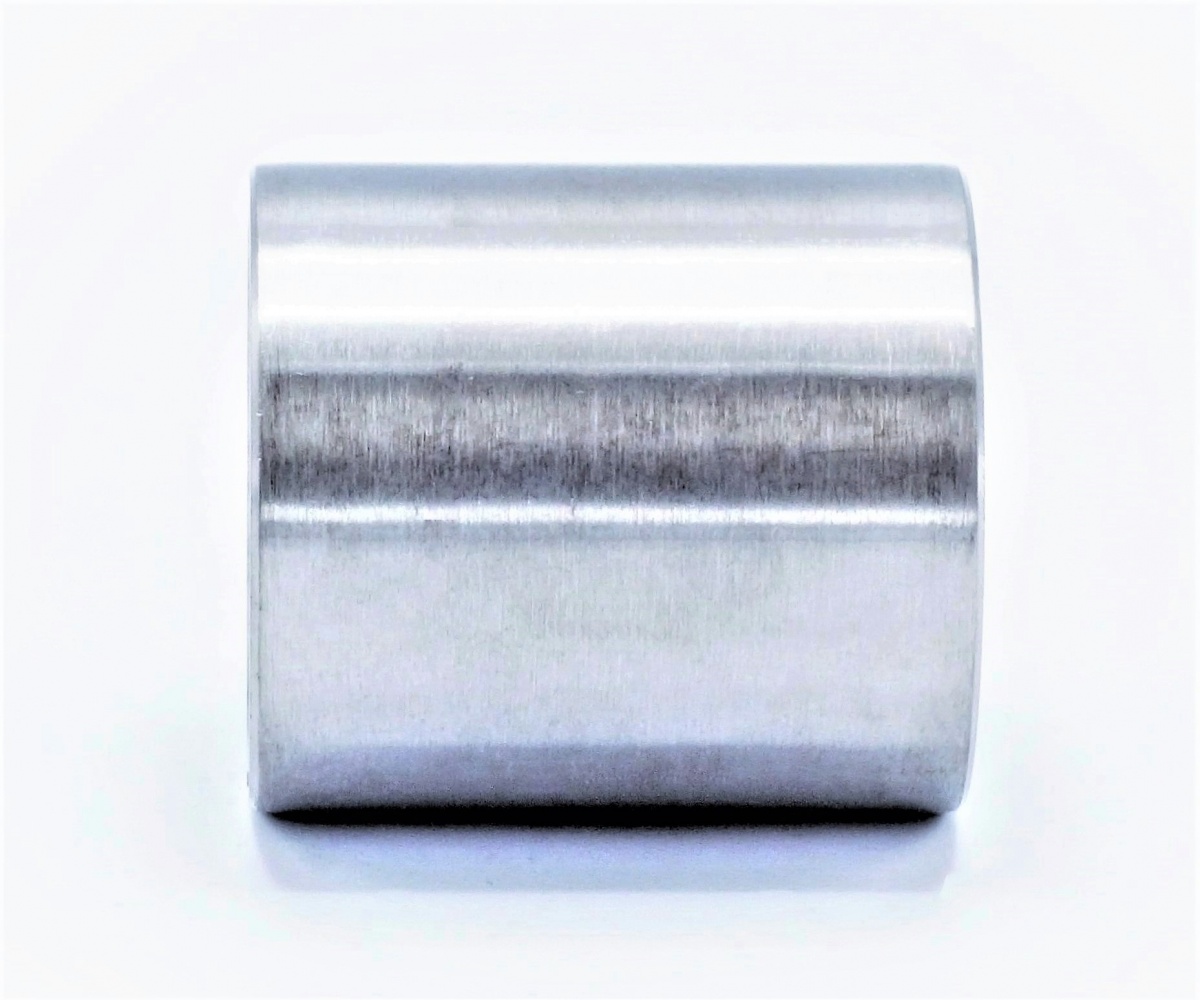

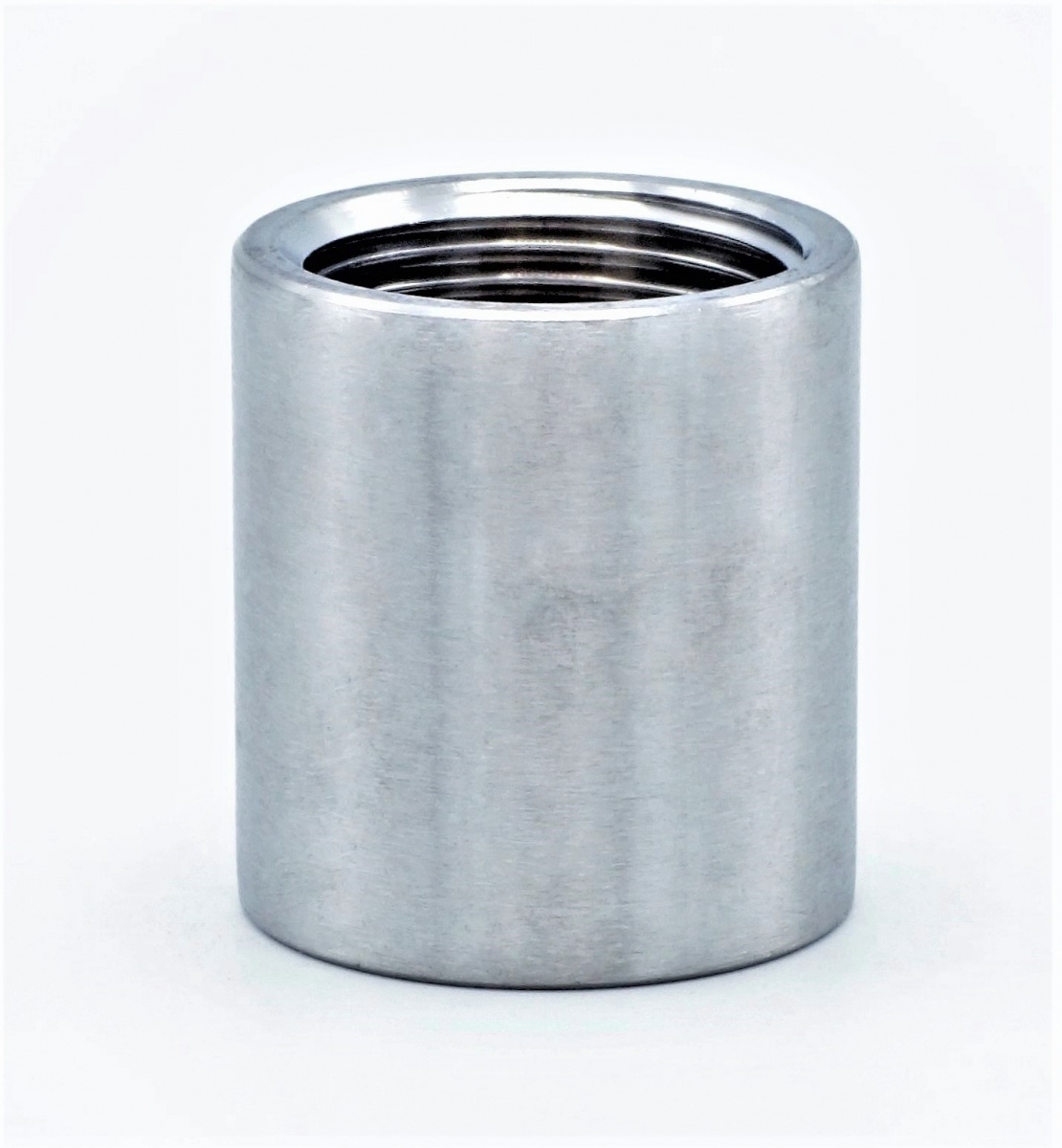

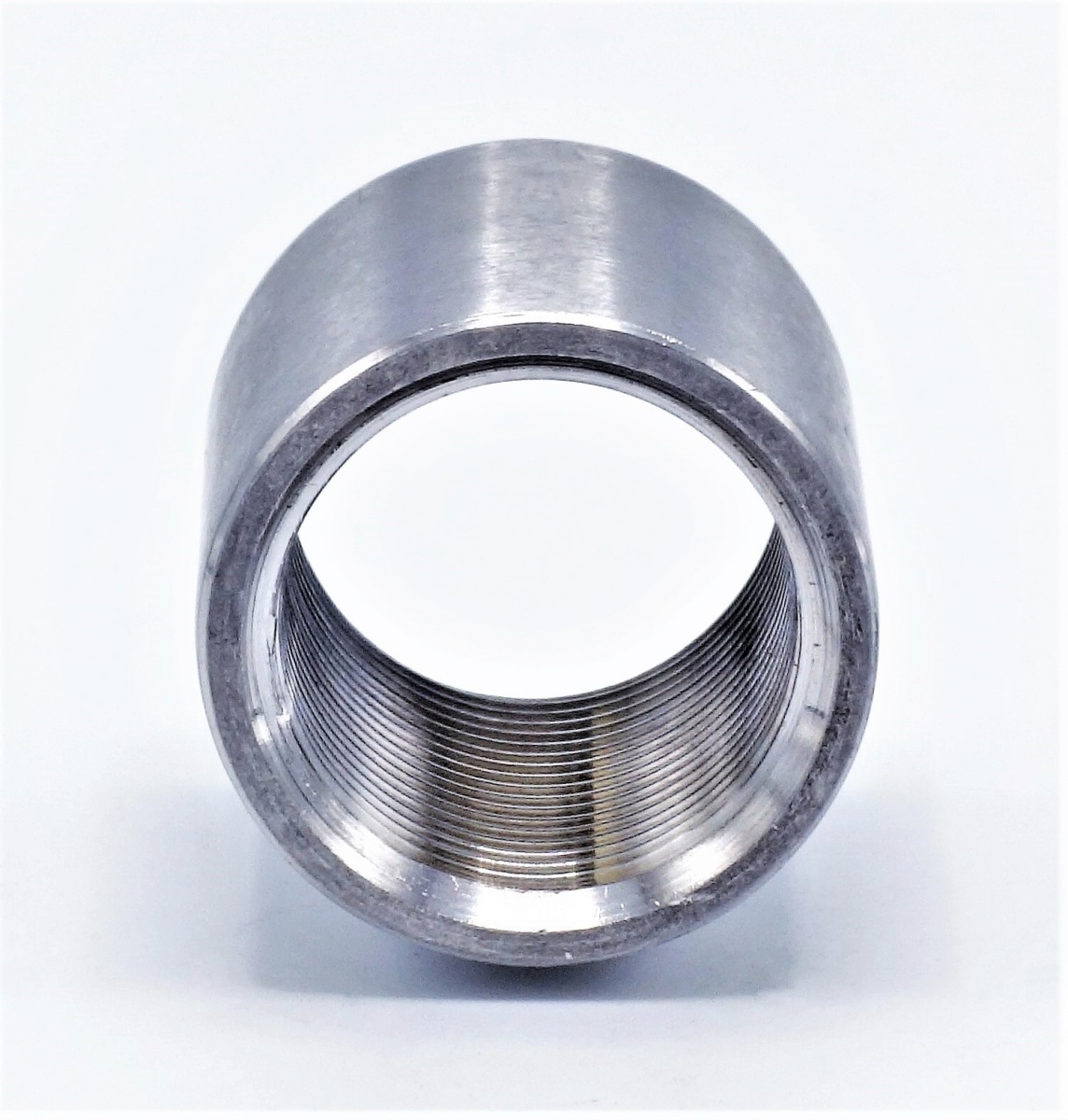

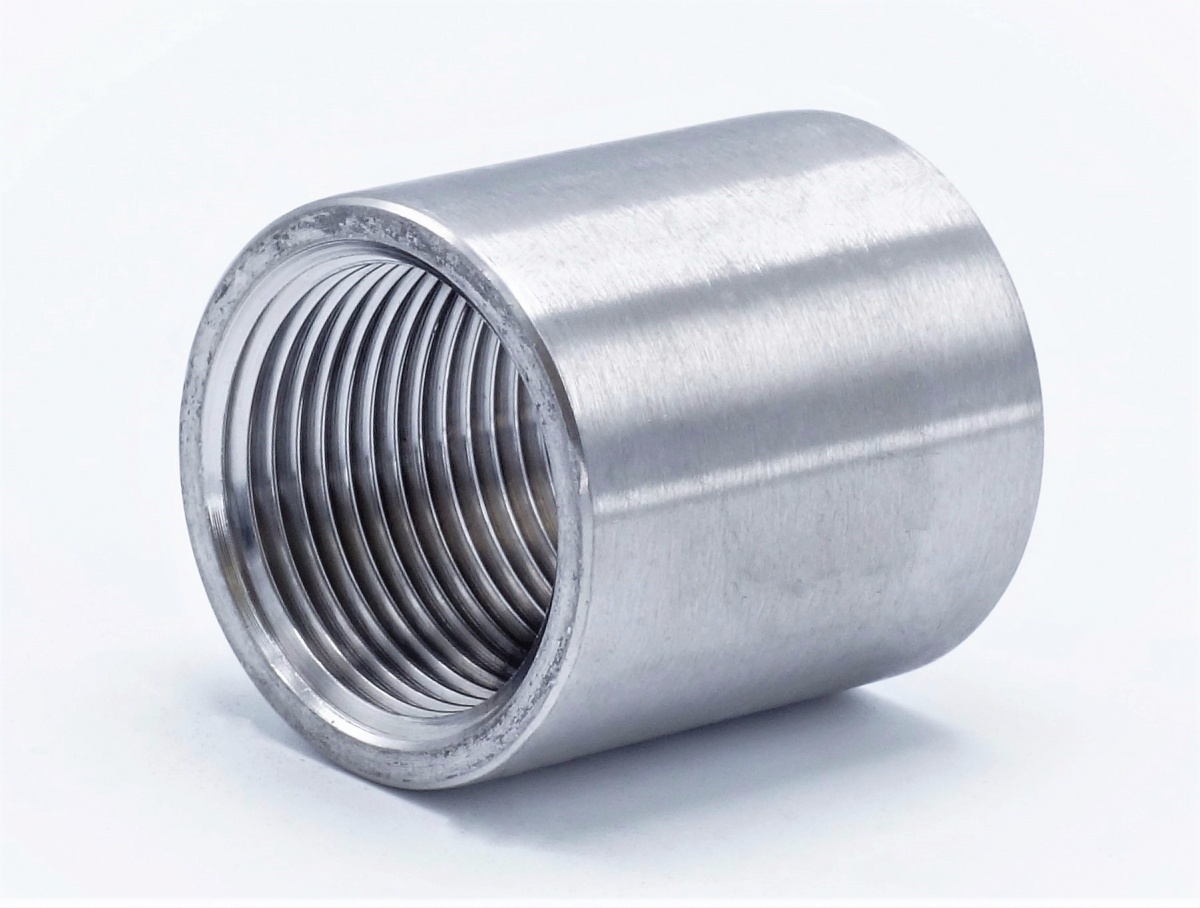

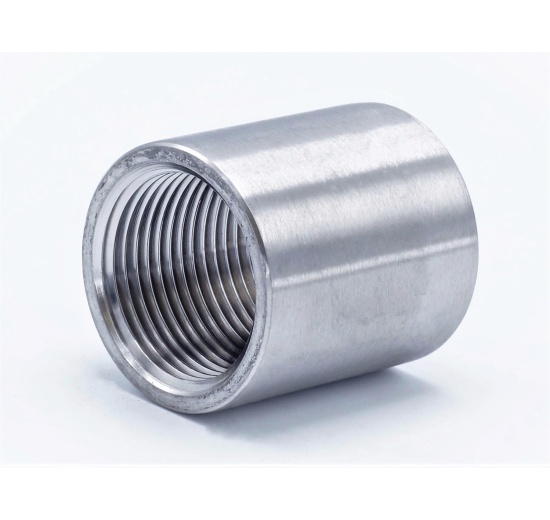

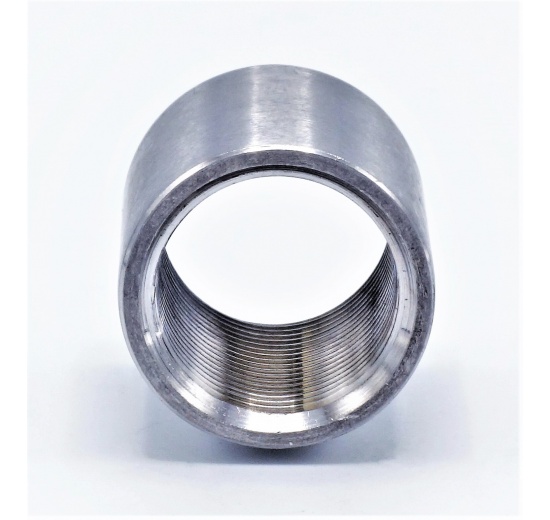

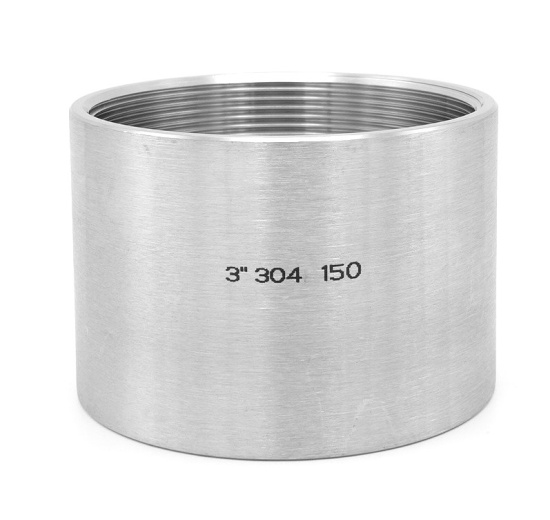

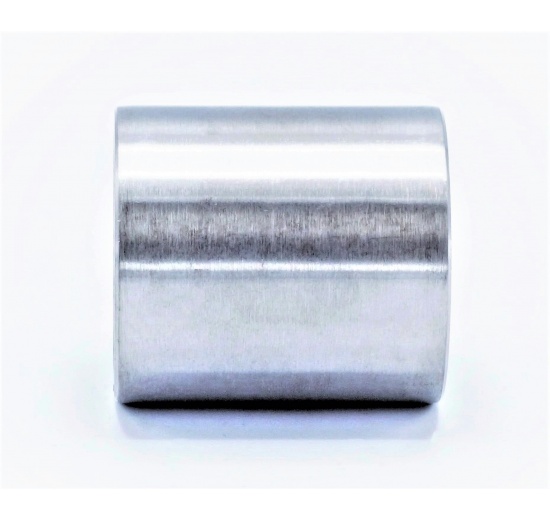

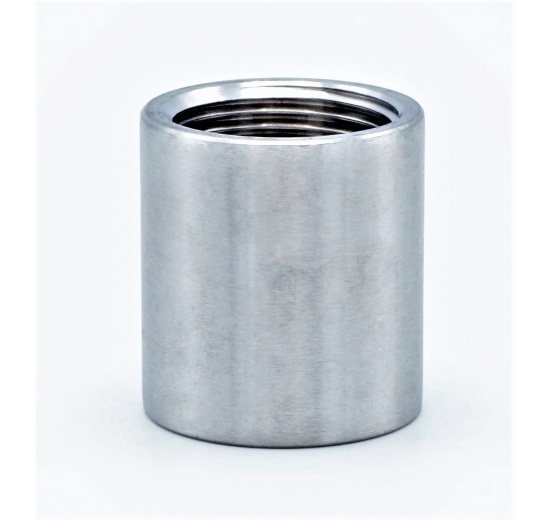

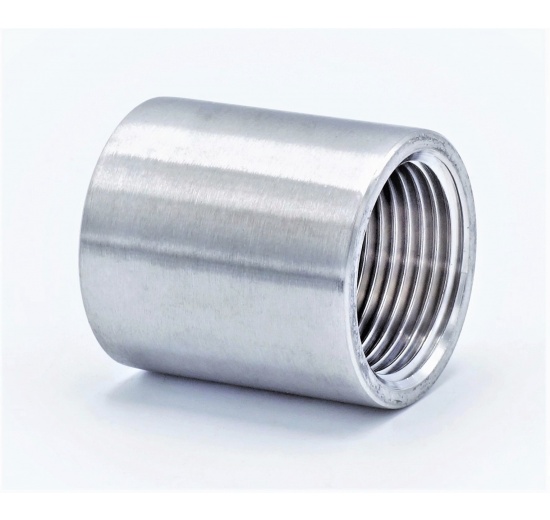

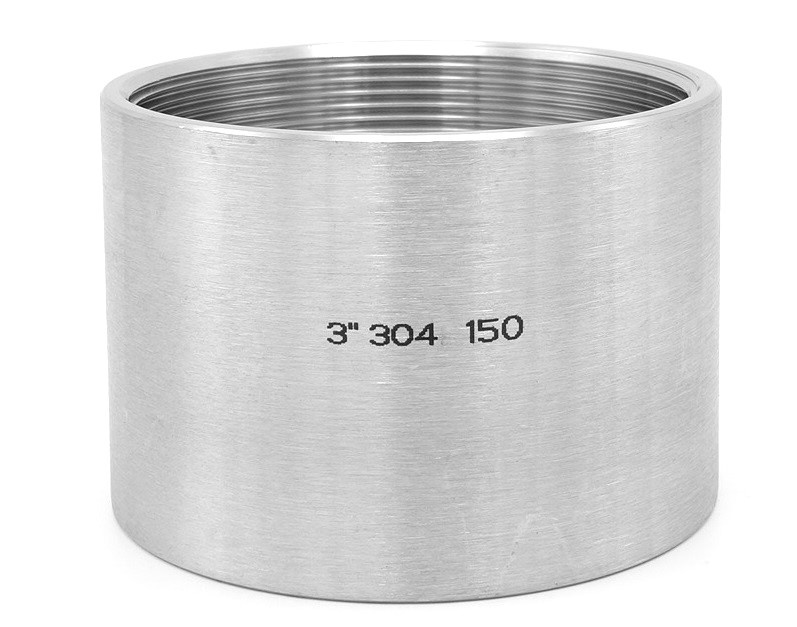

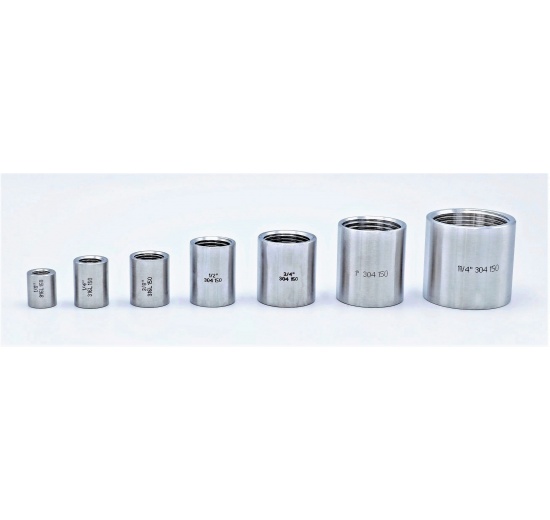

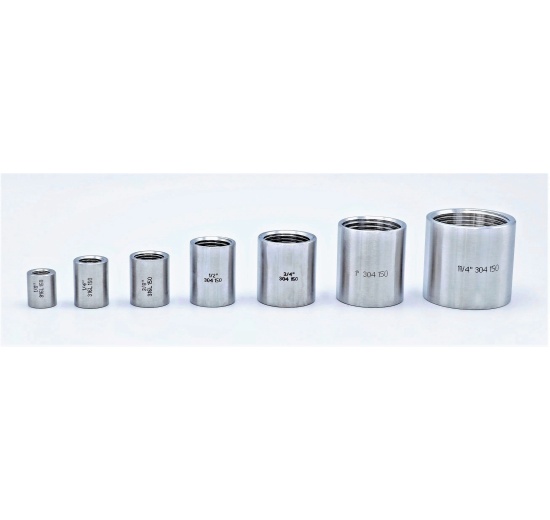

Female-type 333, screw socket with internal thread at both ends (for threaded connection of pipes in a straight line)
| Material | stainless steel 1.4301 |
| Internal thread (female) | cylindrical according to ISO 228 - G |

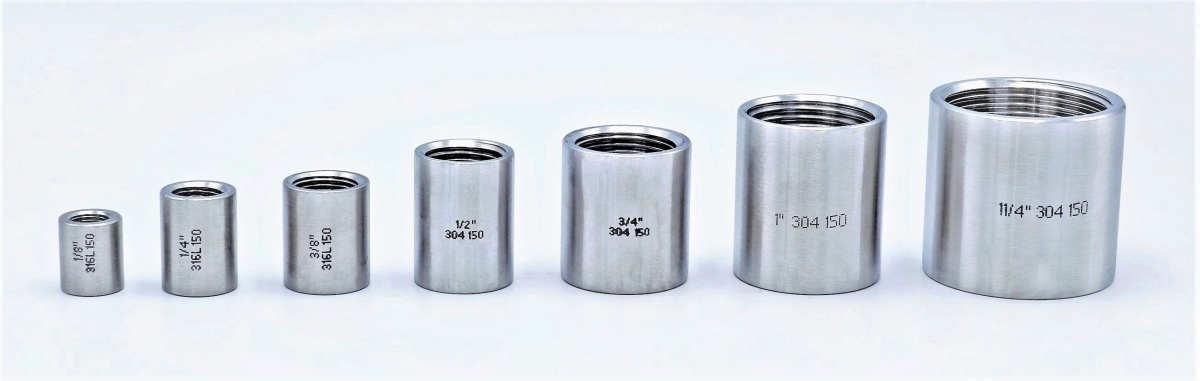

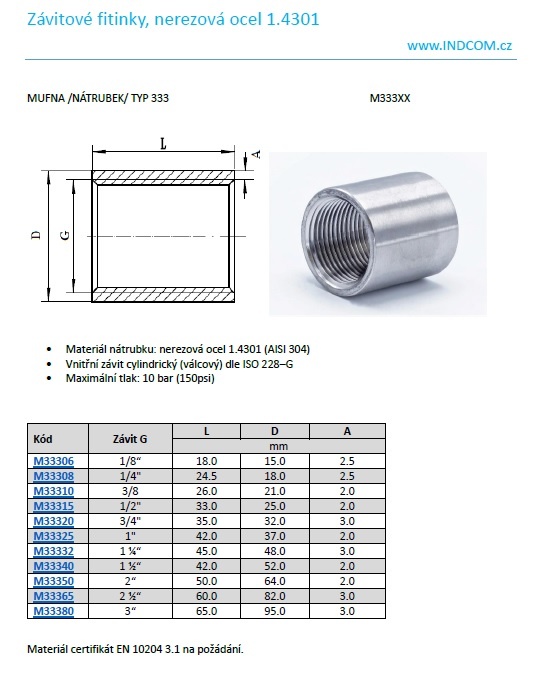

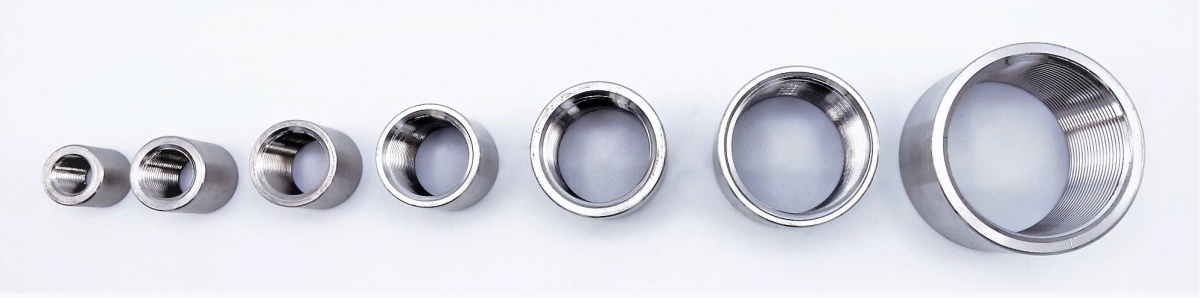

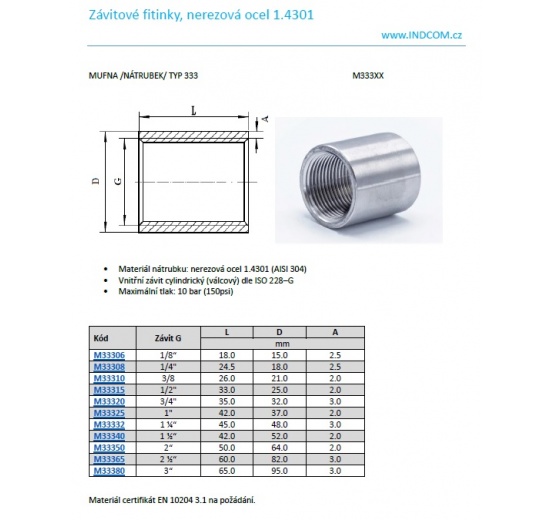

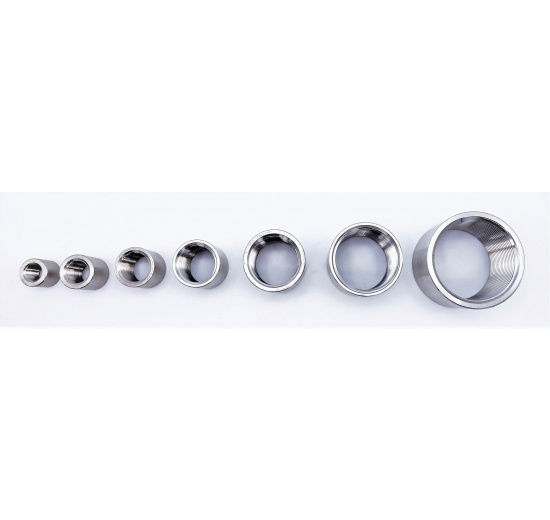

Kód | Závit G | L | D | A |
mm | ||||
1/8“ | 18.0 | 15.0 | 2.5 | |
1/4" | 24.5 | 18.0 | 2.5 | |
3/8 | 26.0 | 21.0 | 2.0 | |
1/2" | 33.0 | 25.0 | 2.0 | |
3/4" | 35.0 | 32.0 | 3.0 | |
1" | 42.0 | 37.0 | 2.0 | |
1 ¼“ | 45.0 | 48.0 | 3.0 | |
1 ½“ | 42.0 | 52.0 | 2.0 | |
2“ | 50.0 | 64.0 | 2.0 | |
2 ½“ | 60.0 | 82.0 | 3.0 | |
3“ | 65.0 | 95.0 | 3.0 | |
