Basic information
| Standard | DIN |
| Type | clamp DN40 |
| Material | stainless steel 1.4301 (AISI 304) |
| Angle | 45° |
| Dimensions | ID 40 mm, see the datasheet |
| Clamp collar dimensions | 50.5 mm |
Mainly used for
Intended for applications in winemaking, brewing, the food and beverage industry, the dairy industry, refrigeration, water management, the chemical industry, etc.
Material certificate EN 10204 3.1 available upon request.
- CLAMP system (CLAMP connection) enables quick and precise assembly and disassembly,
- easy expansion of the system with new components,
- a major advantage of the CLAMP system is easy sanitation.
- Standard for DN10–DN100: DIN 32676, pipe DIN 11850
- Standard for DN125–DN300: DIN 32676 (ASME-BPE 2009)
Compatible accessories
Blinding Cap for CLAMP Joint DN25/32/40
Properties: Tri clamp standard: DIN, clamp collar 50.5 mm Material: SS - stainless…
Price from
55,89 Kč
Heavy Duty CLAMP I. DN25/32/40 (K50.5)
Properties: TRI CLAMP standard: DIN 32676 Type: clamp collar 50,5 mm Material: stainless…
Price from
120,00 Kč
Clamp Gasket - Silicone DN40 (50.5)
Properties: Standard: DIN 32676 Material: silicone FDA atestation on request Fields of…
Price from
10,80 Kč
Similar products

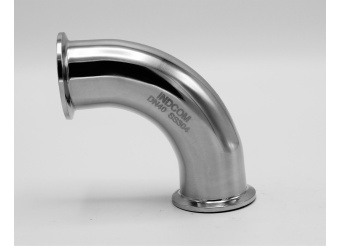

Elbow Clamp 90° DN40 (40x1,5mm, collar 50,5mm)
