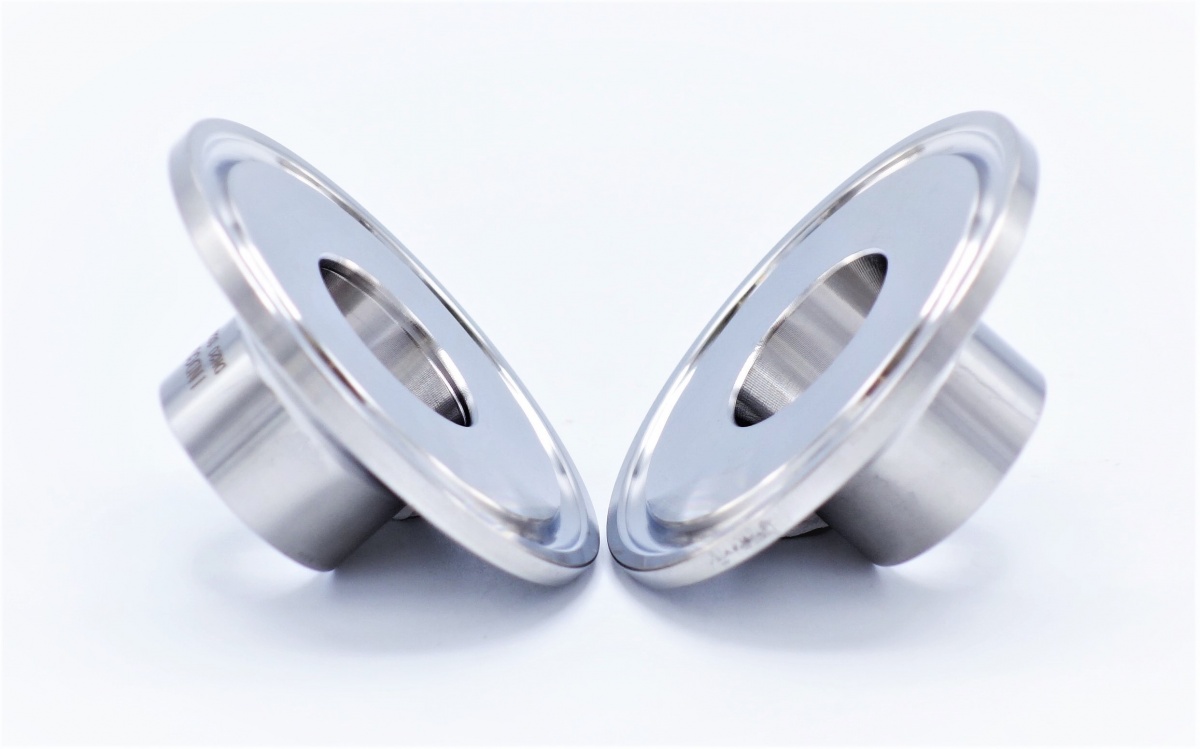

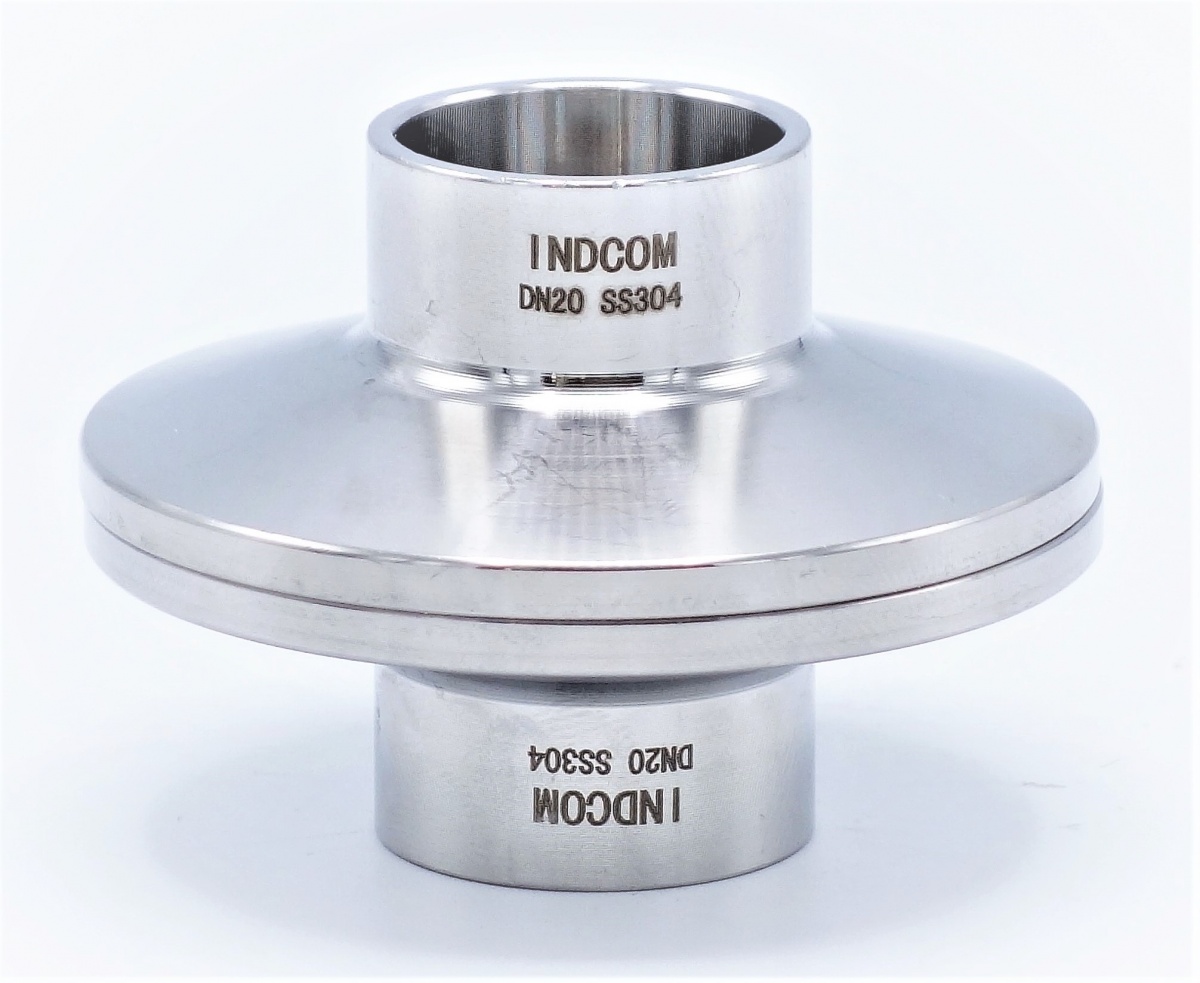

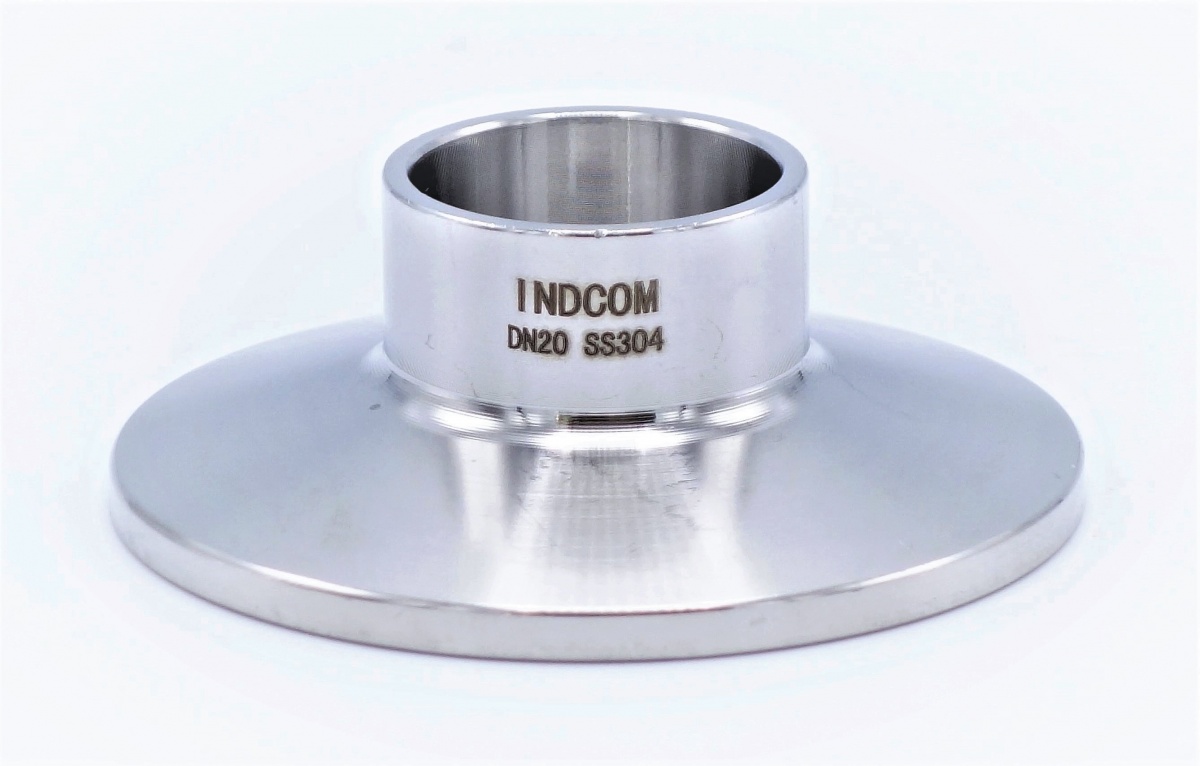

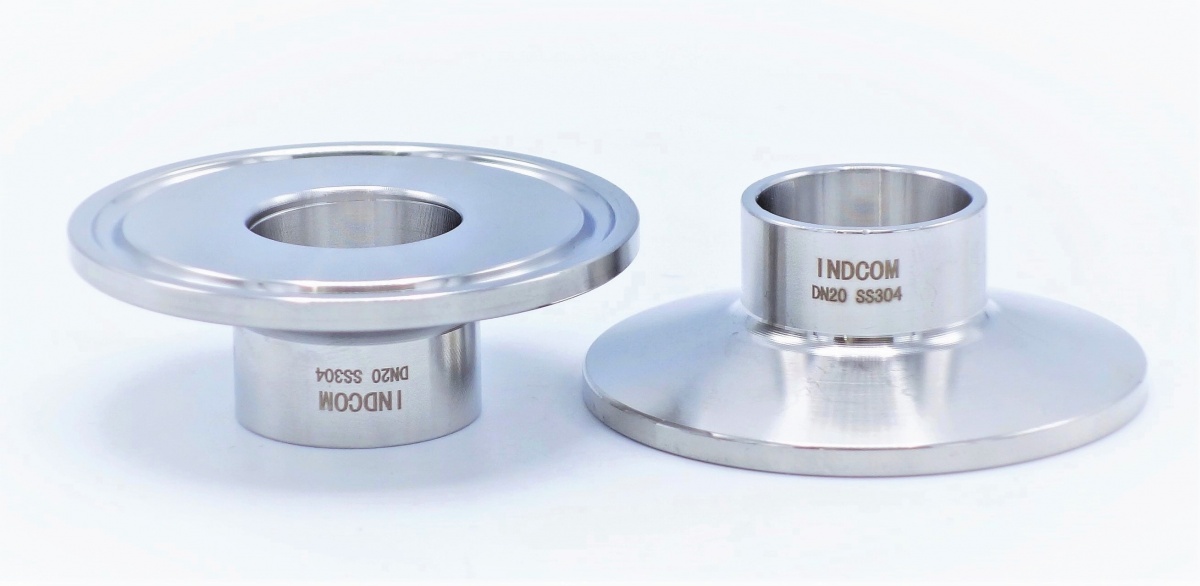

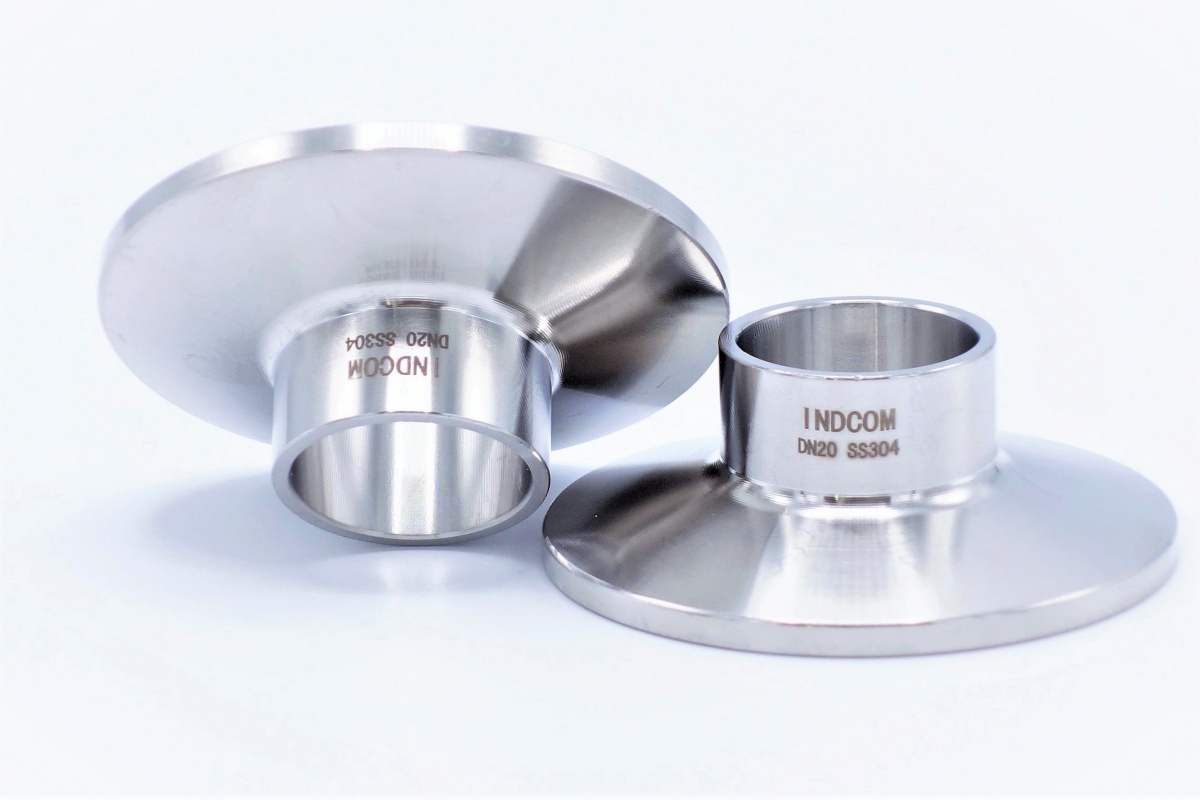

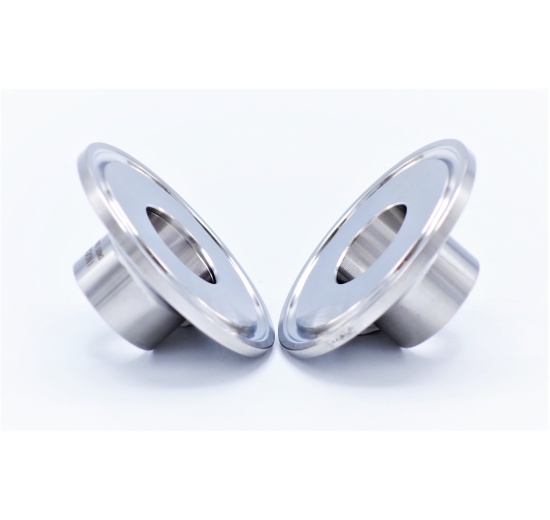

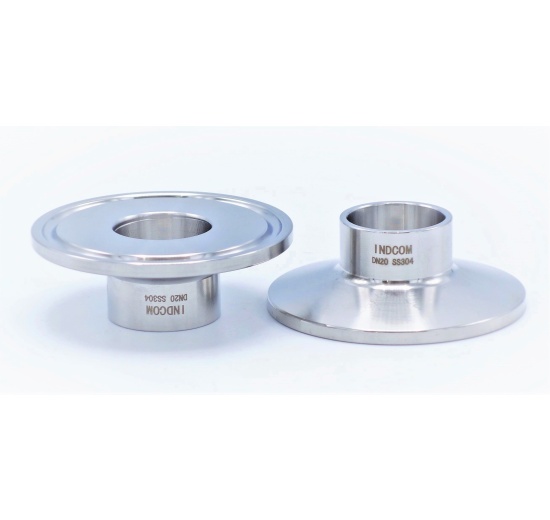

Basic information
| Tri-clamp standard | DIN 32676 - clamp collar 50.5 mm (K50.5), pipe DIN11850 |
| Material | stainless steel 1.4301 (AISI 304) |
| Connection | welded DN20 |

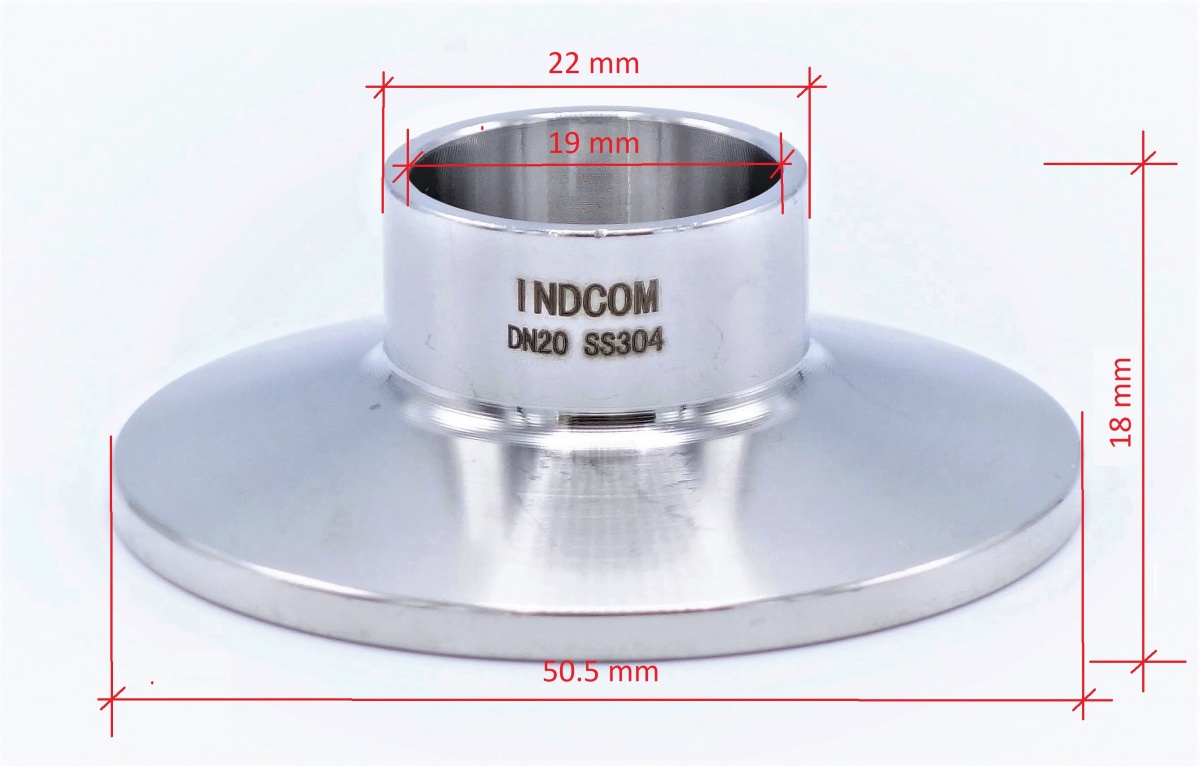

tri CLAMP welded ferrule diameters
- see technical data sheet
- inner diameter: 19 mm
- outer diameter: 22 mm
- wall thickness: 1.5 mm
Most common uses
Intended for applications in winemaking, brewing, the food and beverage industry, the dairy industry, refrigeration, water management, the chemical industry, etc.
Material certificate EN 10204 3.1 available upon request.
- CLAMP system (CLAMP connection) enables quick and precise assembly and disassembly,
- easy expansion of the system with new components,
- a major advantage of the CLAMP system is easy sanitation.
- Standard for DN10–DN100: DIN 32676, pipe DIN 11850
- Standard for DN125–DN300: DIN 32676 (ASME-BPE 2009)
