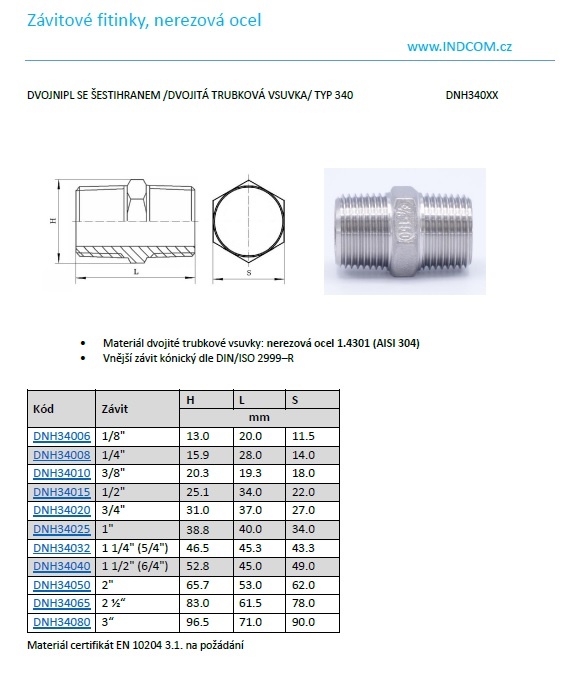

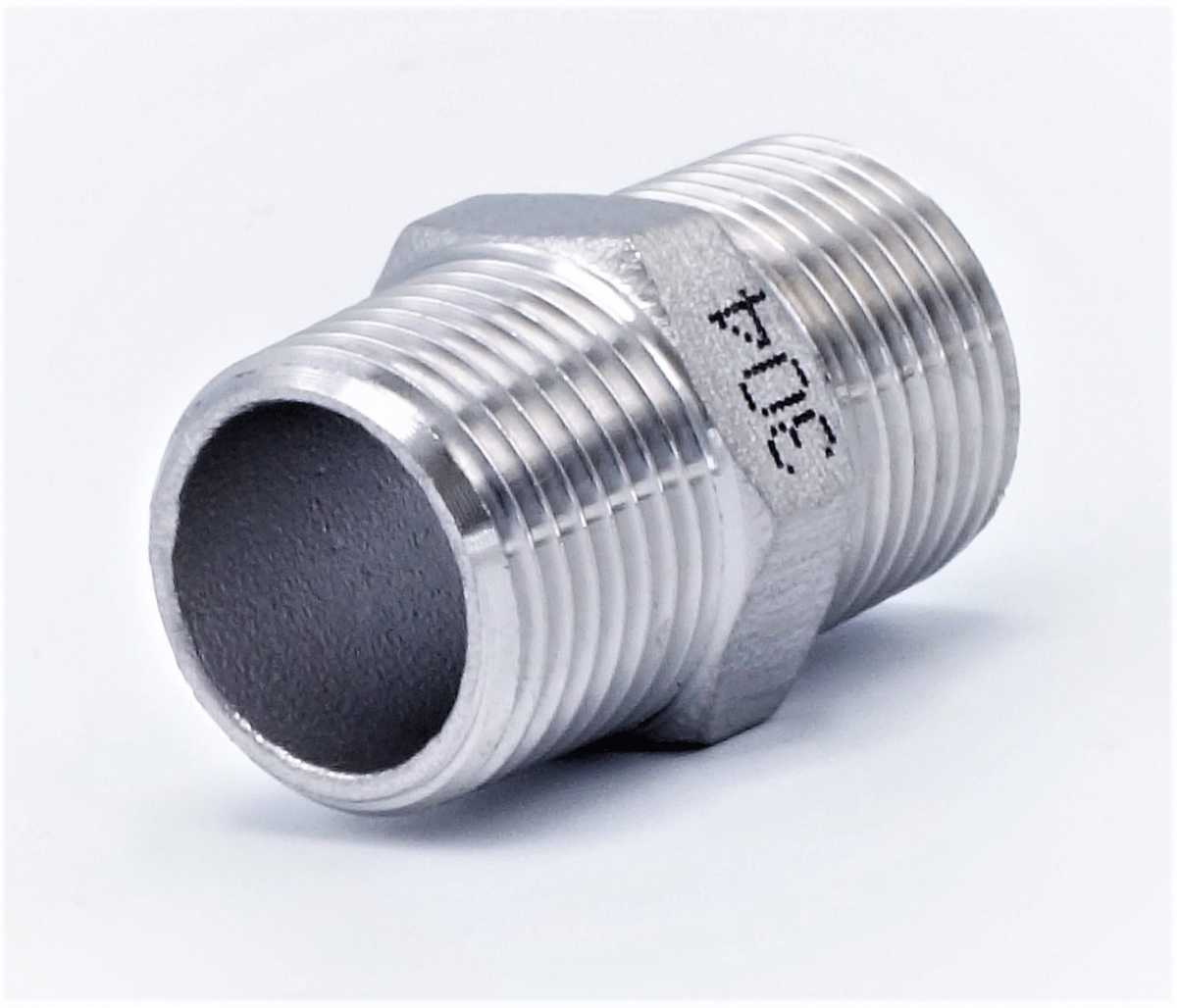

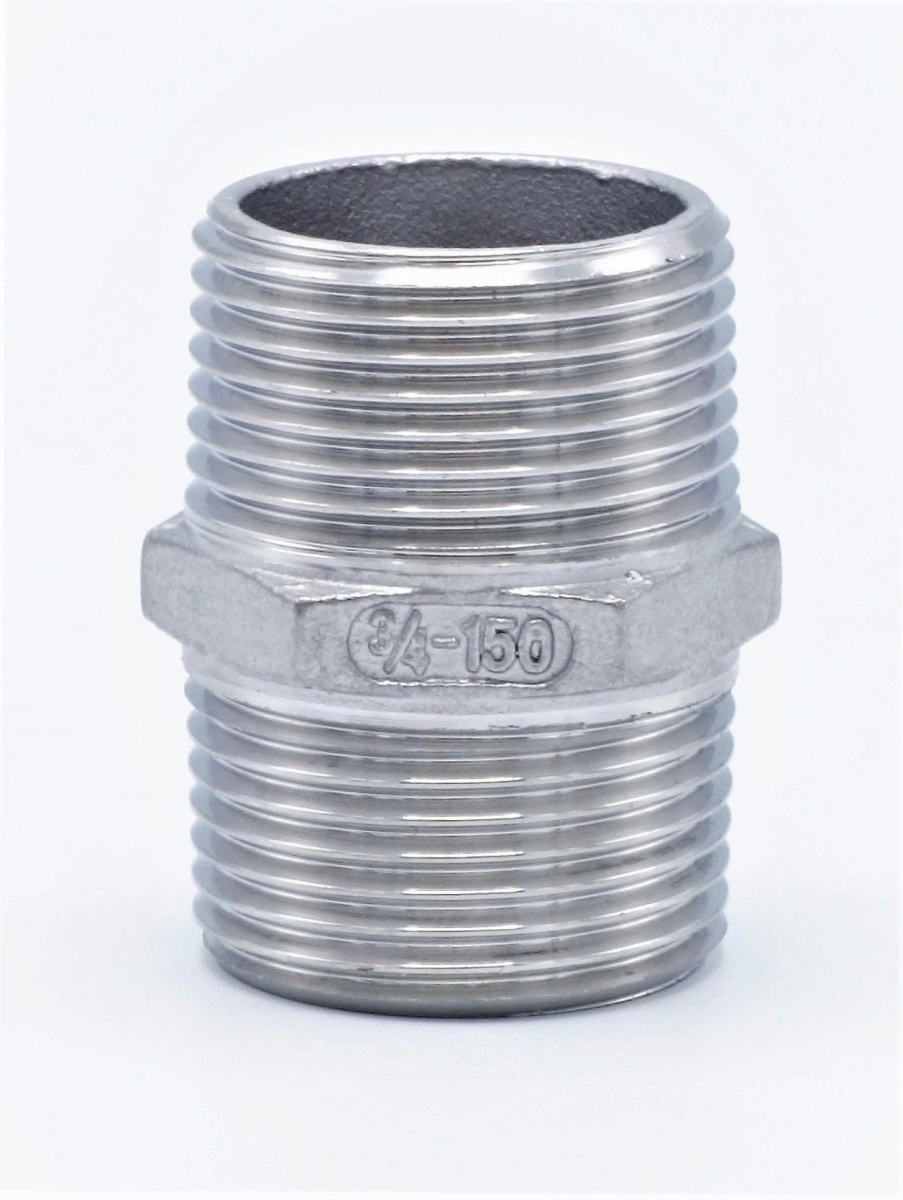

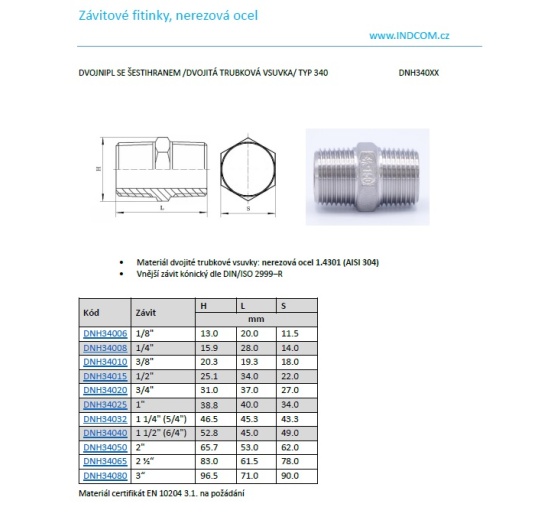

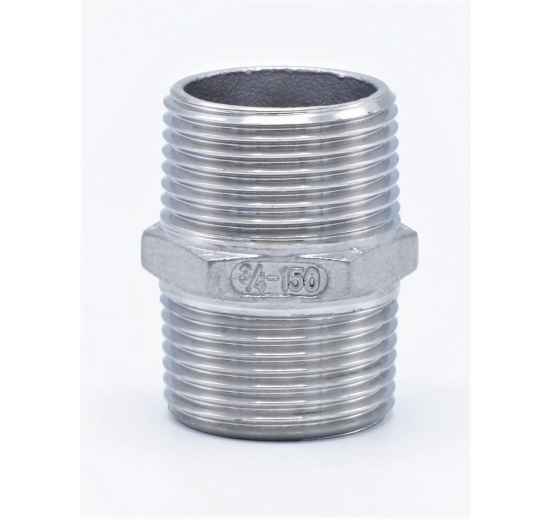

Barrel Nipple (Double Nipple) With Hexagon / DIN / ISO 2999, type 340
Stainless steel 1.4301 (AISI 304).
Conical outer thread (conical) according to DIN / ISO 2999 - R (EN 10226-1).
Prices are stated without VAT
Basic information
Stainless steel 1.4301 (AISI 304).
Conical outer thread (conical) according to DIN / ISO 2999 - R (EN 10226-1).
Kód | Závit | H | L | S |
mm | ||||
DNH34006 | 1/8" | 13.0 | 20.0 | 11.5 |
DNH34008 | 1/4" | 15.9 | 28.0 | 14.0 |
DNH34010 | 3/8" | 20.3 | 19.3 | 18.0 |
DNH34015 | 1/2" | 25.1 | 34.0 | 22.0 |
DNH34020 | 3/4" | 31.0 | 37.0 | 27.0 |
DNH34025 | 1" | 38.8 | 40.0 | 34.0 |
DNH34032 | 1 1/4" (5/4") | 46.5 | 45.3 | 43.3 |
DNH34040 | 1 1/2" (6/4") | 52.8 | 45.0 | 49.0 |
DNH34050 | 2" | 65.7 | 53.0 | 62.0 |
