Basic information
| Standard | DIN |
| Material of case | stainless steel 1.4301 (AISI 304) |
| Inner diameter of case | 100.8 mm |
| Maximal temperature | 80°C |
| Gasket of the clamp joint | silicon |
| Material of the filtrating cartrige- core | stacked polypropylen |
| Bin of the filtr. cartrige | polypropylen |
| Filter surface | 0.25 m² |
| Filtrating ability | 0.22 µm |
| Length | 5“ (127 mm) length without ending cap |
| Outer diameter | 68.5 mm |
| Ending cap | flat O-circle |
| Inner diameter of hole | 22 mm |

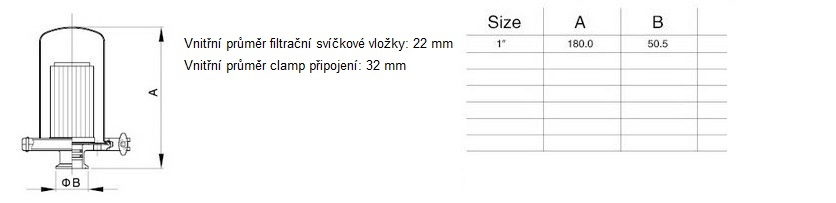

Dimensions of connection
| ID (mm) | 32 |
| OD (mm) | 37.5 |
| Clamp collar (mm) | 50.5 |
Application areas
Wineries, breweries, dairy industry, beverage industry, food production, is widely used in pharmacy etc.
Compatible accessories
Clamp Welded Ferrule DN25 (K50.5)
Properties: Tri clamp standard: DIN 32676 - clamp ferrule 50.5 mm, pipe DIN11850…
Price from
55,00 Kč
Clamp Gasket - Silicone DN25 (50.5)
Properties: Type: DN25, clamp ferrule 50.5 mm DIN32676 Material: silicone FDA atestation…
Price from
9,20 Kč
Heavy Duty CLAMP I. DN25/32/40 (K50.5)
Properties: TRI CLAMP standard: DIN 32676 Type: clamp collar 50,5 mm Material: stainless…
Price from
120,00 Kč

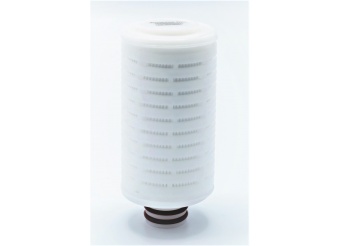

Filtrating Cartridge DN25 , H=5"
Properties: Material of filtrating cartridge- core: stacked polypropylen Bin of filtr.…
Price from
217,10 Kč
