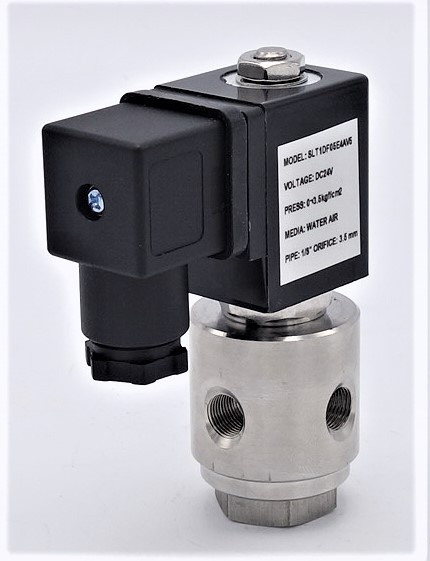

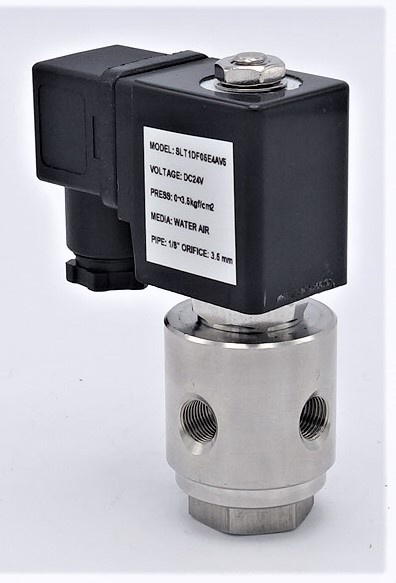

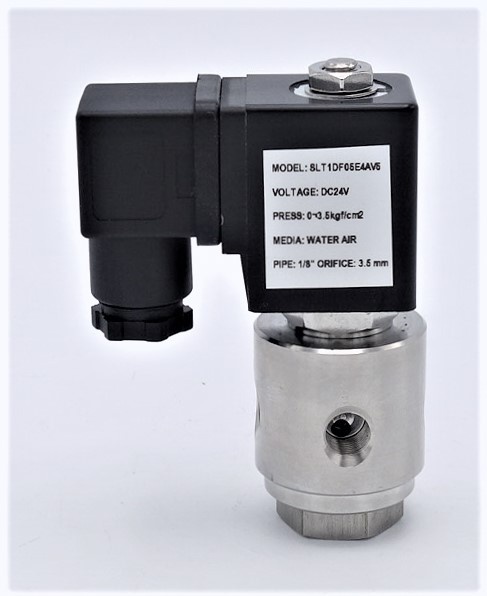

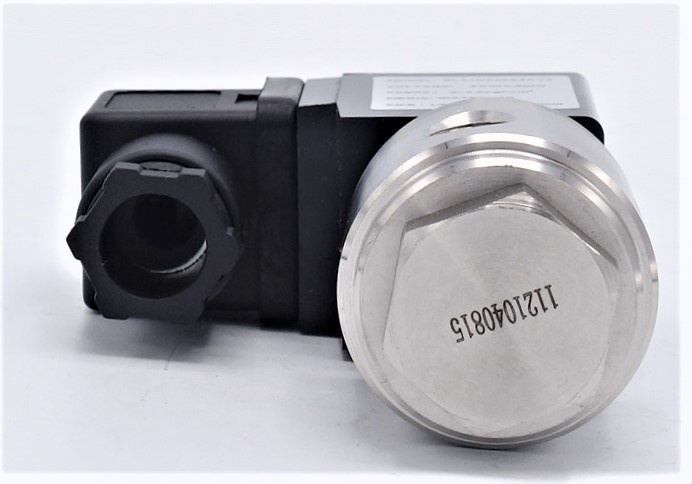

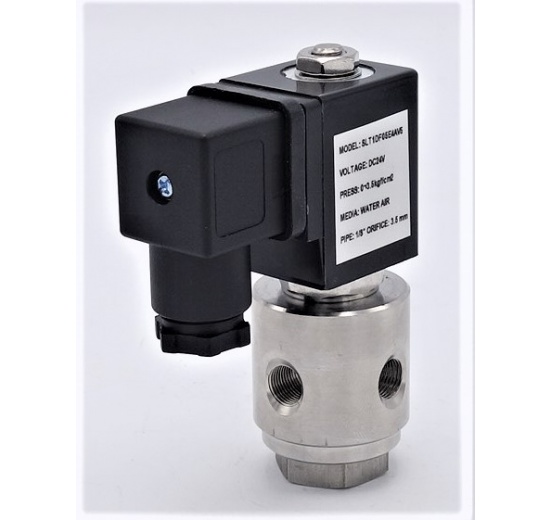

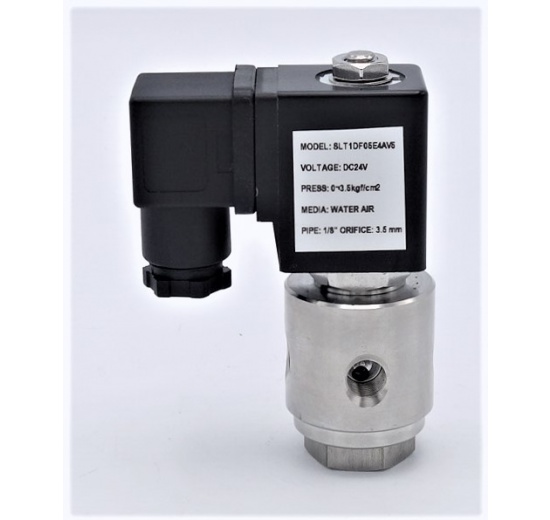

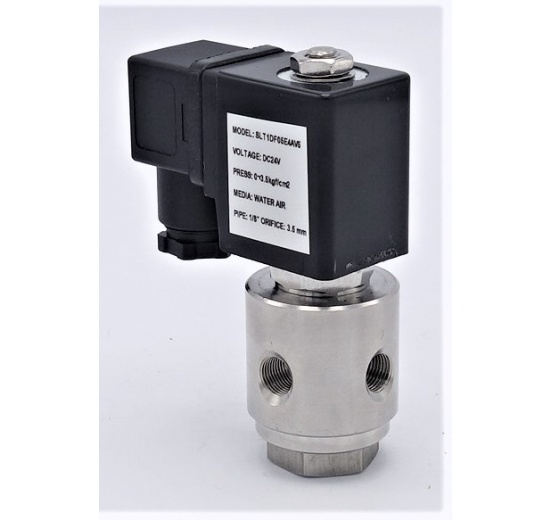

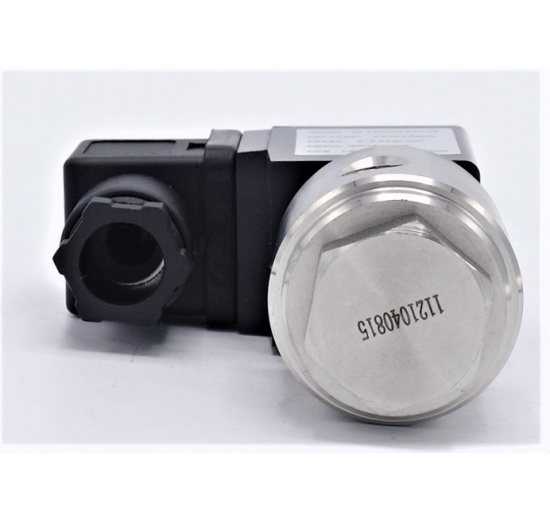

Basic information
| Type | 3/2 without voltage closed (NC) |
| Valve type | indirectly controlled |
| Thread connection | G1/8" |
| Hole (Orifice) | 3.5 mm |
| Working pressure | 0 to 0.35 MPa (0-3.5 bar) |
| Max. working pressure | Max.0.35 MPa (3.5 bar) |
| Application | Neutral gases, liquids |
| Liquid viscosity | ≤21 mm2/s |
| Medium temperature | –20 ℃~+130 ℃ |
| Valve body material | AISI 304 |
| Seal material | EPDM |
| Voltage: DC | 24V |
| Ingress protection | IP65 |
| Flow rate | 3.6 m³/h |
| Size | 36x36x99mm |
Valves are supplied with coil and connector.
Compatible accessories

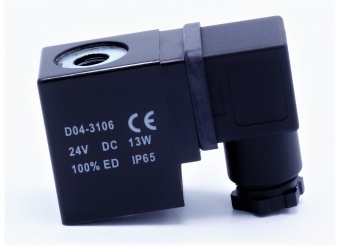

Coil For Stainless Steel Solenoid Valve 3/2, G 1…
Standard: DIN Hole (Orifice): 10 mm Size: 34x30x42 mm (LxWxH) Voltage: DC24V Power: 13W …
Price from
308,00 Kč
More from the category
Solenoid valves 3/2
Stainless Steel Solenoid Valve 3/2, G 1/8" DC24V,…
Application: solenoid valves are used for closing, opening and controlling the flow of…
Price from
1 053,00 Kč
Stainless Steel Solenoid Valve 3/2, G 1/8" AC230V…
Application: solenoid valves are used for closing, opening and controlling the flow of…
Price from
1 053,00 Kč

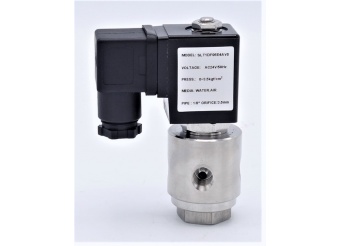

Stainless Steel Solenoid Valve 3/2, G 1/8" AC24V,…
