Basic information
Use:
- solenoid valves from our offer are used for closing, opening and controlling the flow of liquid media
| Type | 2/2 normally closed (NC) |
| Working medium | air, water, oil |
| Valve type | directly controlled |
| Connection | G1/8" |
| Hole (orifice) | 2,5 mm |
| Working pressure | 0-0,7 MPa (0-7 bar) |
| Max. working pressure | 1,0 MPa (10 bar) |
| Use | neutral gas, liquids |
| Liquid viscosity | ≤21 mm2/s |
| Working temperature | –5 ℃~+80 ℃ |
| Body valve material | AISI 304 |
| Seal material | NBR |
| Voltage | DC 24V |
| Flow rate | 3,6 m³/h |

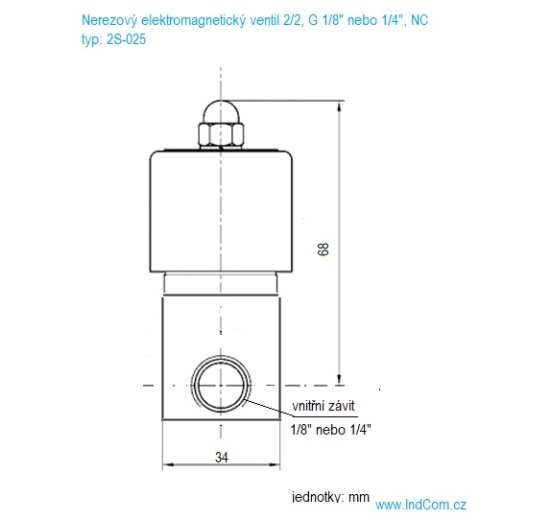

| Diameters | 68,5 x 34 x 78,5 mm |
The valves are supplied with a coil (valve without a connector).
