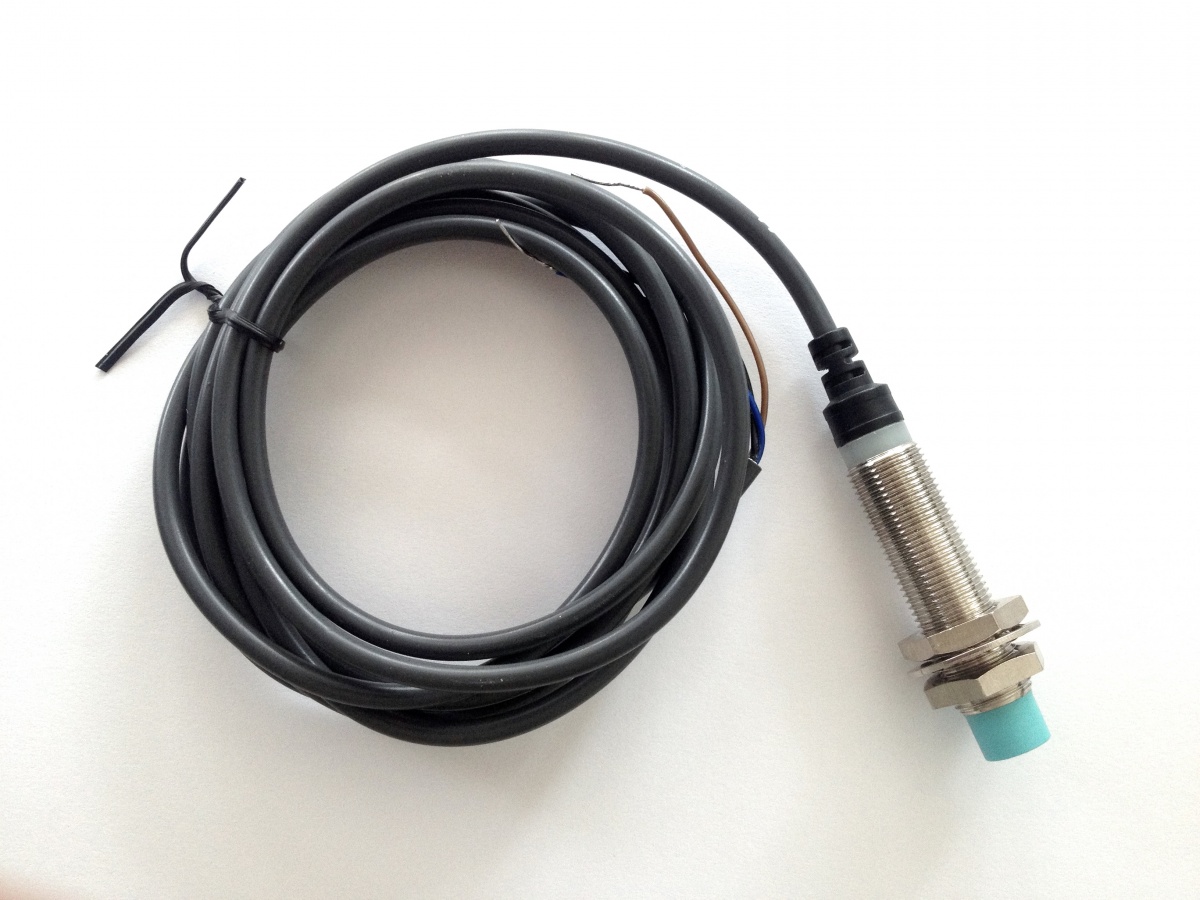

Basic information
- cylindrical design: M12 (12 mm)
- nominal switching distance: 4 mm
- hystereze: ≤10 % Sn
- supply voltage: 10-30VDC
- current consumption: ≤10 mA
- residual voltage: max. 1.5V
- max. load current: 200mA
- maximum switching frequency: 500Hz
- 3-wire design (NO), PNP switching output: the switching load is connected between the negative supply terminal and the corresponding control terminal
- degree of protection by sensor cover: IP 67
- 3-wire design: the switched object has its output separate from the power supply terminals
- indicator: LED
- ambient permissible temperature: -25 ° C ~ + 70 ° C
- storage temperature: -25 ° C ~ + 70 ° C
- permissible operating humidity: 35-95% RH
- permissible storage humidity: 35-95% RH
- protection: against short circuit, polarity reversal
- high mechanical resistance
PVC cable
| cable length | 2m |
Use of inductive position sensors
- Engineering industry - machine tools, control of welding robots, conveyors, displacement detection, stops, material thickness detection.
- Food and beverage industry - mixing machines, packaging machines, filling machines, sliding conveyors.
- Woodworking machines, Assembly lines, Textile machines.
- Automotive
- Rotation and rotation detection.
- Measurement and detection of metal object approach, misalignment detection.
- Motion and feed detection - conveyors, machine tools
