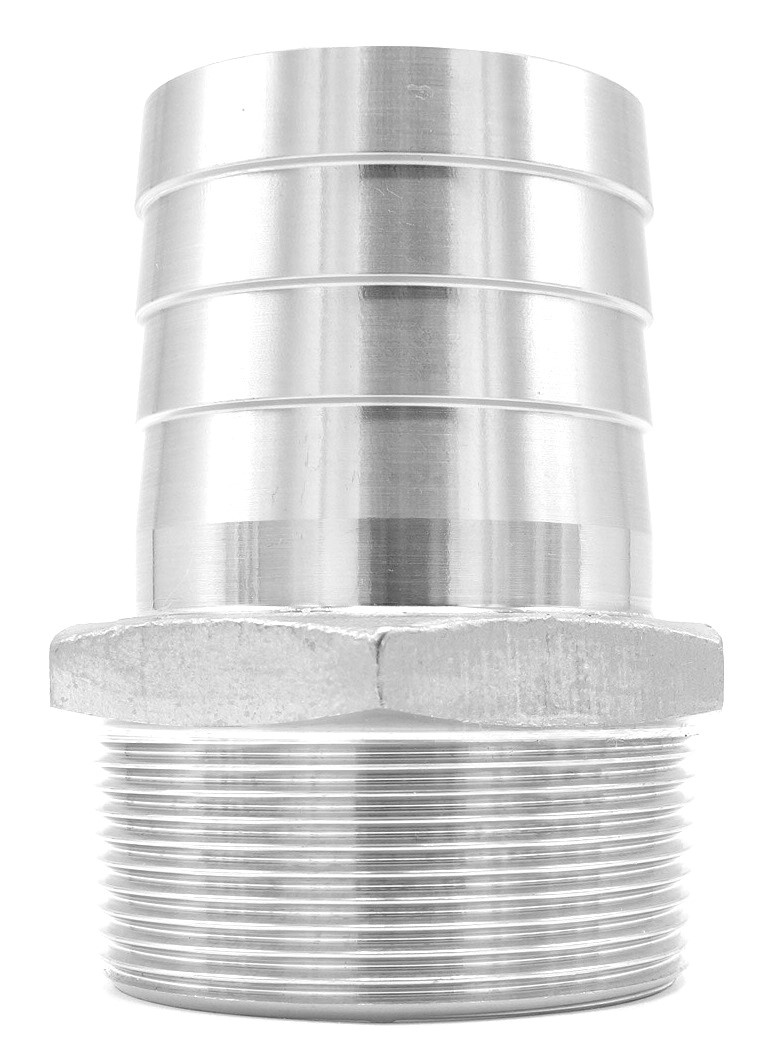

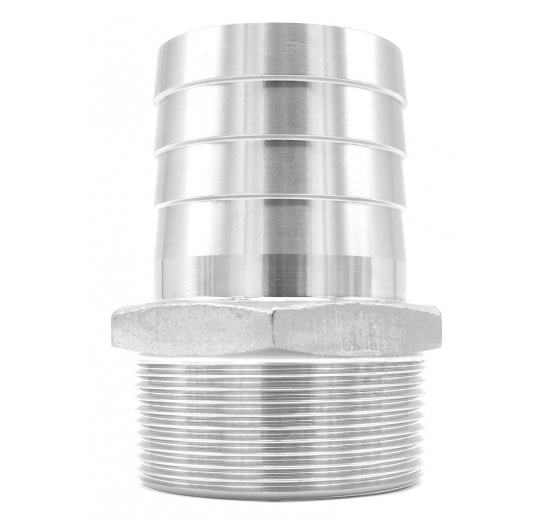

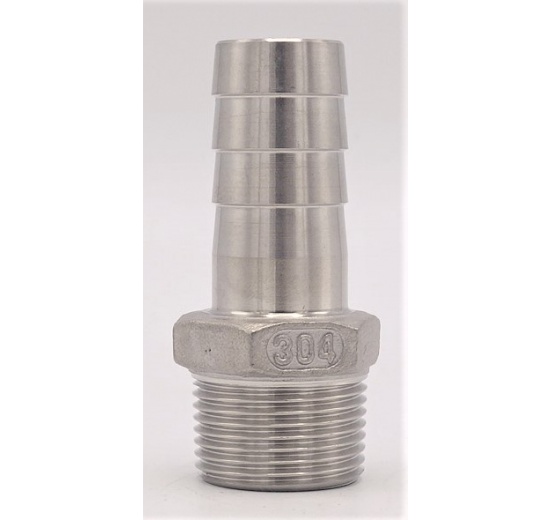

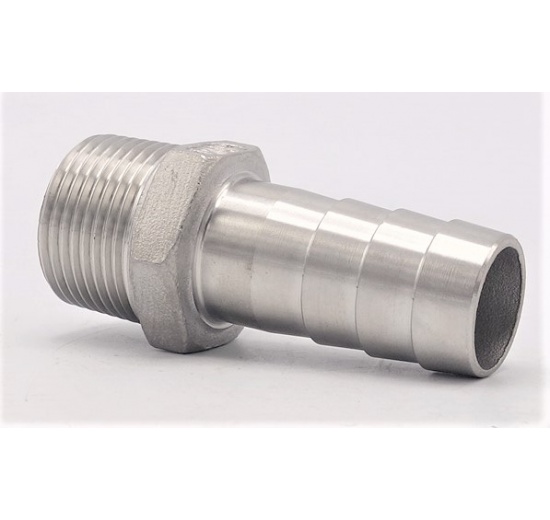

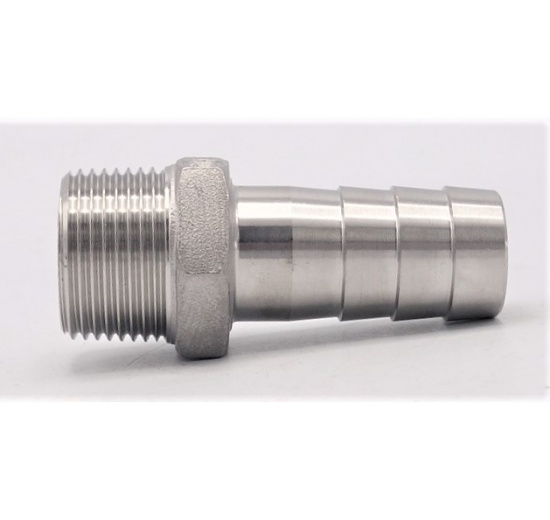

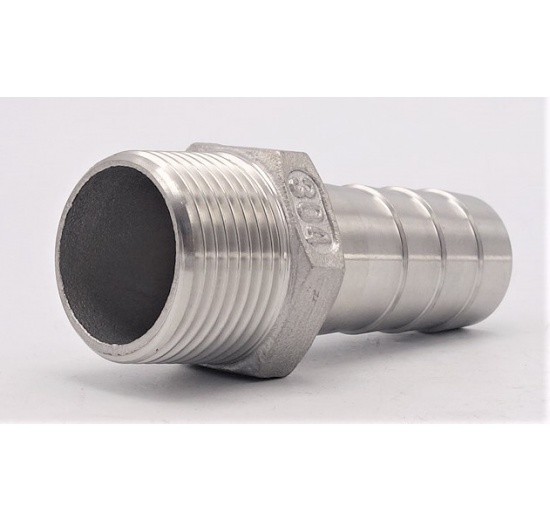

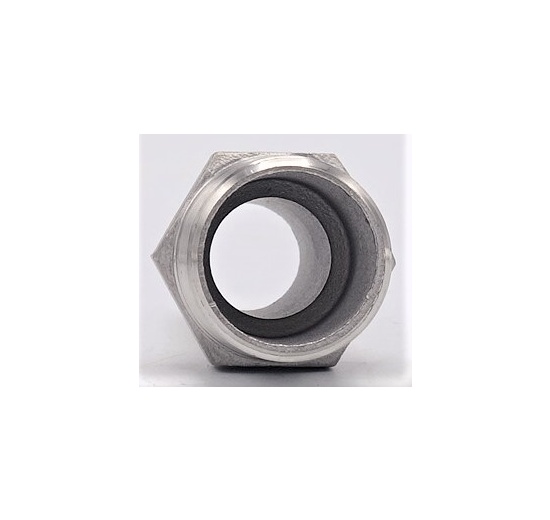

Hose Nipple Extension / Hose End with Hexagon / Type 337
Prices are stated without VAT
Basic information
- Hose extension type 337 (hose) with hexagon, with external thread
- Stainless steel 1.4301 (AISI304)
- Conical outer thread (conical) according to DIN / ISO 2999 - R

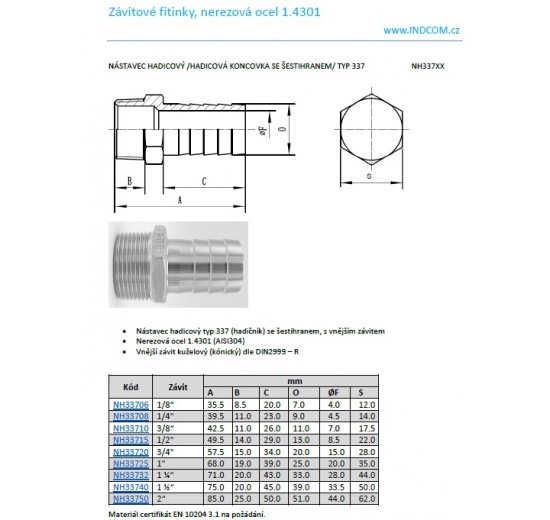

Code | Thread | mm | |||||
A | B | C | O | ØF | S | ||
1/8“ | 35.5 | 8.5 | 20.0 | 7.0 | 4.0 | 12.0 | |
1/4" | 39.5 | 11.0 | 23.0 | 9.0 | 4.5 | 14.0 | |
3/8“ | 42.5 | 11.0 | 26.0 | 11.0 | 7.0 | 17.5 | |
1/2" | 49.5 | 14.0 | 29.0 | 13.0 | 8.5 | 22.0 | |
3/4" | 57.5 | 15.0 | 34.0 | 20.0 | 15.0 | 28.0 | |
1" | 68.0 | 19.0 | 39.0 | 27.0 | 22.0 | 35.0 | |
1 ¼“ | 71.0 | 20.0 | 43.0 | 33.0 | 28.0 | 44.0 | |
1 ½“ | 75.0 | 20.0 | 45.0 | 39.0 | 33.5 | 50.0 | |
2“ | 85.0 | 25.0 | 50.0 | 51.0 | 44.0 | 62.0 | |
