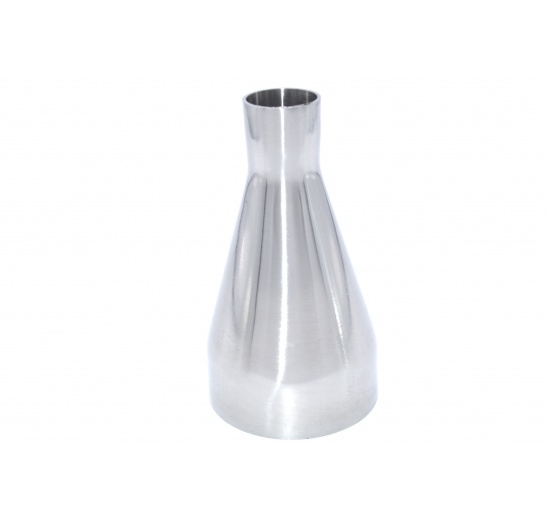

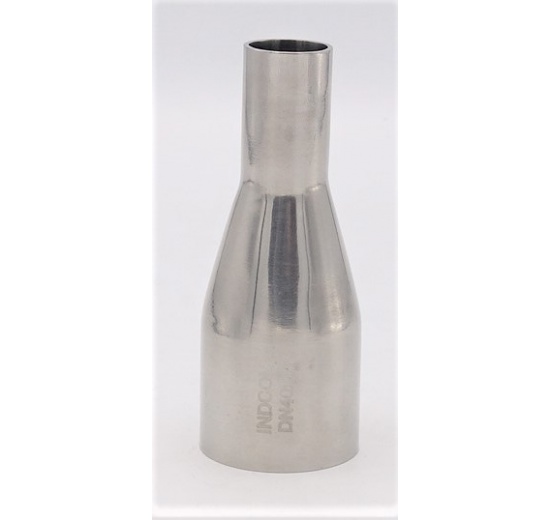

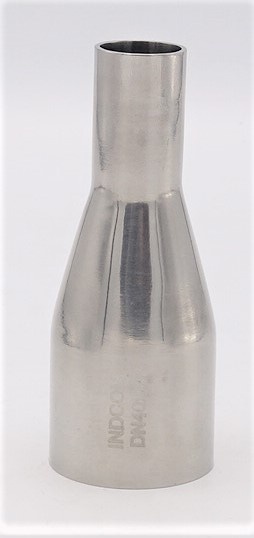

Concentric reducer, welded S-S, long
- standard: DIN
- type: welding S-S, concentric, coaxial, long (with straight ends)
- material: stainless steel 1.4301 (AISI 304)
- diameters: see pictures of tables for individual products
Prices are stated without VAT
Basic information
| Standard | DIN |
| Type | welded S-S, concentric, coaxial, long (with straight ends) |
| Material | stainless steel 1.4301 (AISI 304) |
| Diameters | see pictures of tables for individual products |
Application areas
Winery, brewing, food and beverage industry, dairy industry, refrigeration, water management applications, chemical industry, etc.

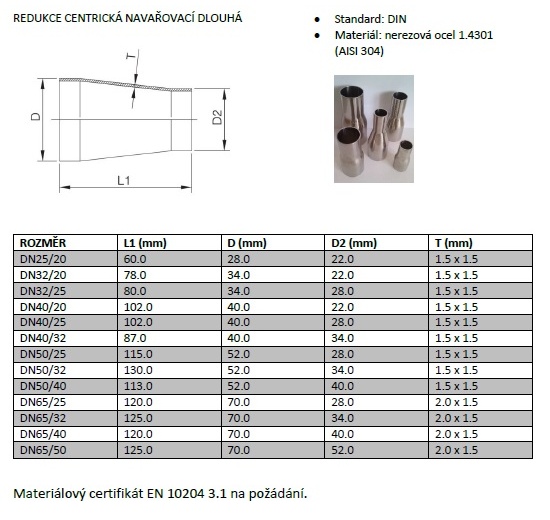

ROZMĚR | L1 (mm) | D (mm) | D2 (mm) | T (mm) |
DN25/20 | 60.0 | 28.0 | 22.0 | 1.5 x 1.5 |
DN32/20 | 78.0 | 34.0 | 22.0 | 1.5 x 1.5 |
DN32/25 | 80.0 | 34.0 | 28.0 | 1.5 x 1.5 |
DN40/20 | 102.0 | 40.0 | 22.0 | 1.5 x 1.5 |
DN40/25 | 102.0 | 40.0 | 28.0 | 1.5 x 1.5 |
DN40/32 | 87.0 | 40.0 | 34.0 | 1.5 x 1.5 |
DN50/25 | 115.0 | 52.0 | 28.0 | 1.5 x 1.5 |
DN50/32 | 130.0 | 52.0 | 34.0 | 1.5 x 1.5 |
DN50/40 | 113.0 | 52.0 | 40.0 | 1.5 x 1.5 |
DN65/25 | 120.0 | 70.0 | 28.0 | 2.0 x 1.5 |
DN65/32 | 125.0 | 70.0 | 34.0 | 2.0 x 1.5 |
DN65/40 | 120.0 | 70.0 | 40.0 | 2.0 x 1.5 |
DN65/50 | 125.0 | 70.0 | 52.0 | 2.0 x 1.5 |
