Basic information
| Type | 2/2 closed without voltage (NC) |
| Valve type | indirectly controlled |
| Thread connection | G1/2" |
| Hole (Orifice) | 6 mm |
| Working pressure | 0 to 0.35 MPa (0-3.5 bar) |
| Max. working pressure | Max.0.35 MPa(3.5 bar) |
| Application | Neutral gases, liquids |
| Liquid viscosity | ≤21 mm2/s |
| Medium temperature | –20 ℃~+130 ℃ |
| Valve body material | AISI 304 |
| Seal material | EPDM |
| Voltage: AC | 24V(50/60Hz) |
| Ingress protection | IP65 |
| Power consumption | 20VA |
| Size | 53x26x85 mm |

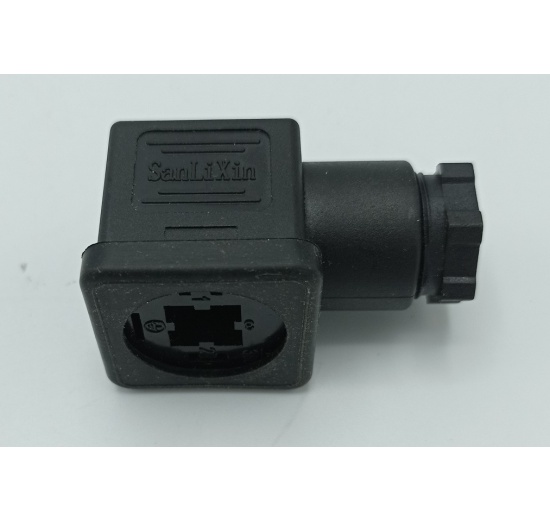

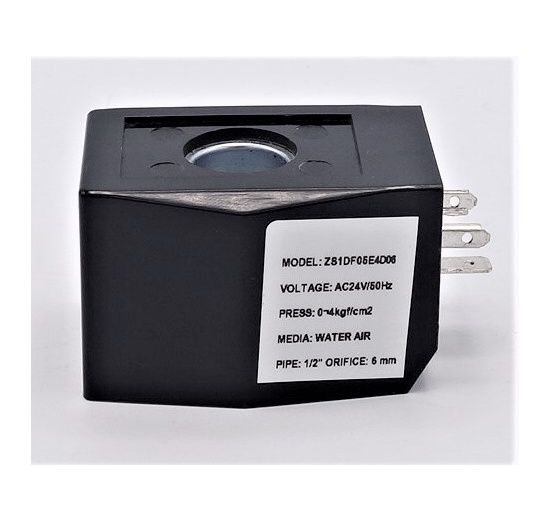

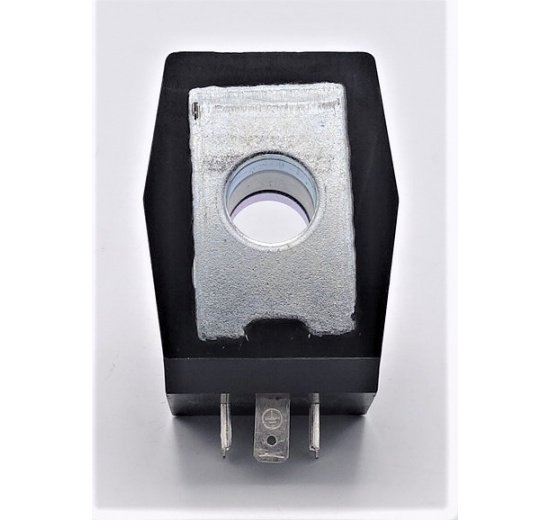

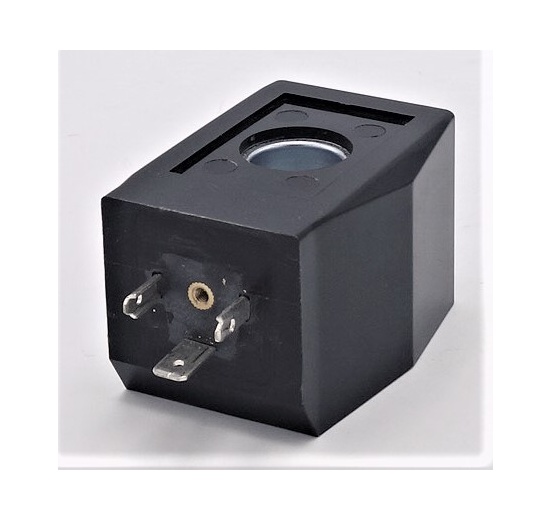

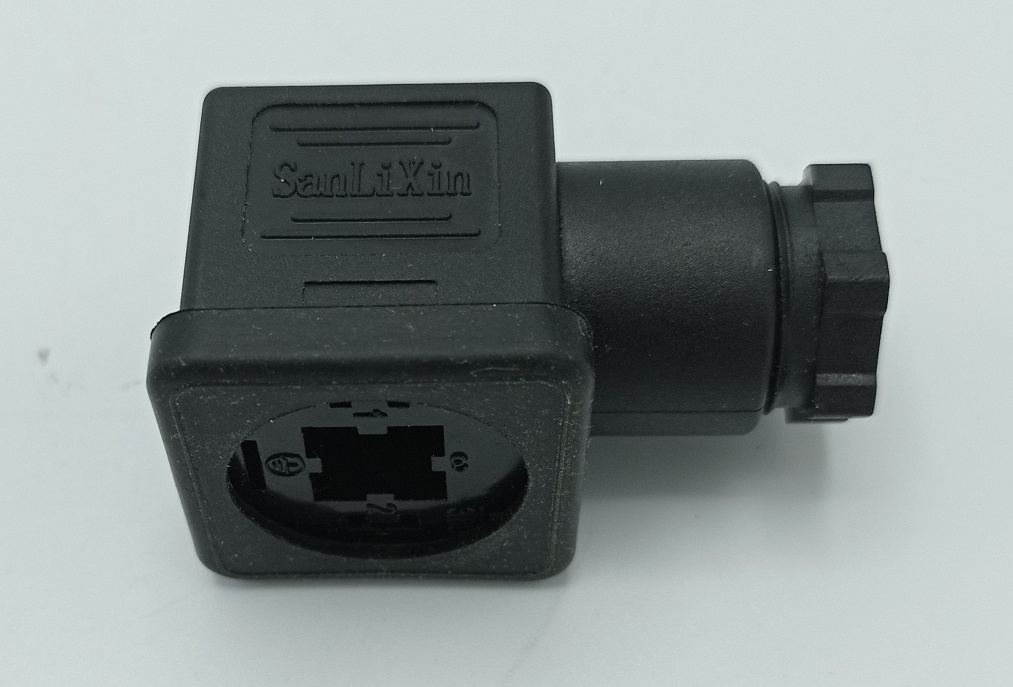

Valves are supplied including coil and connector.
