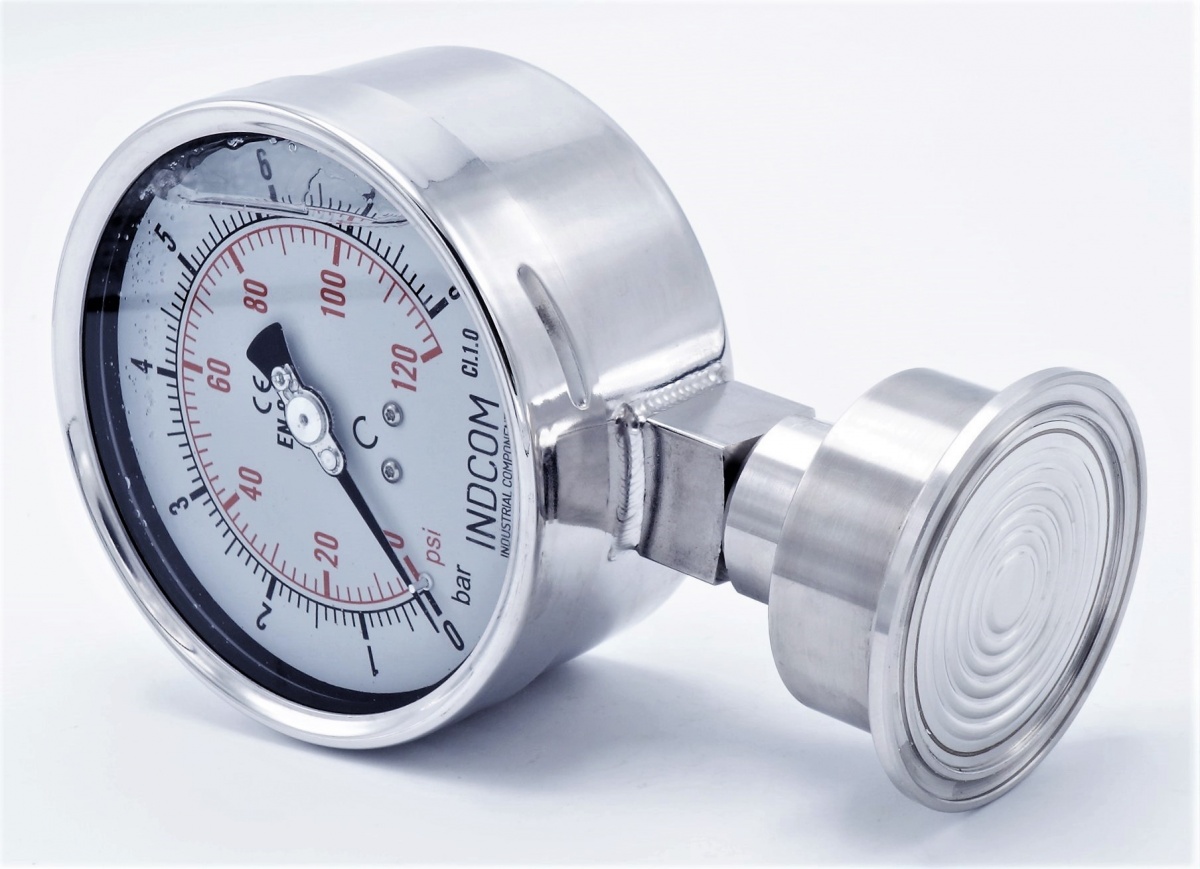

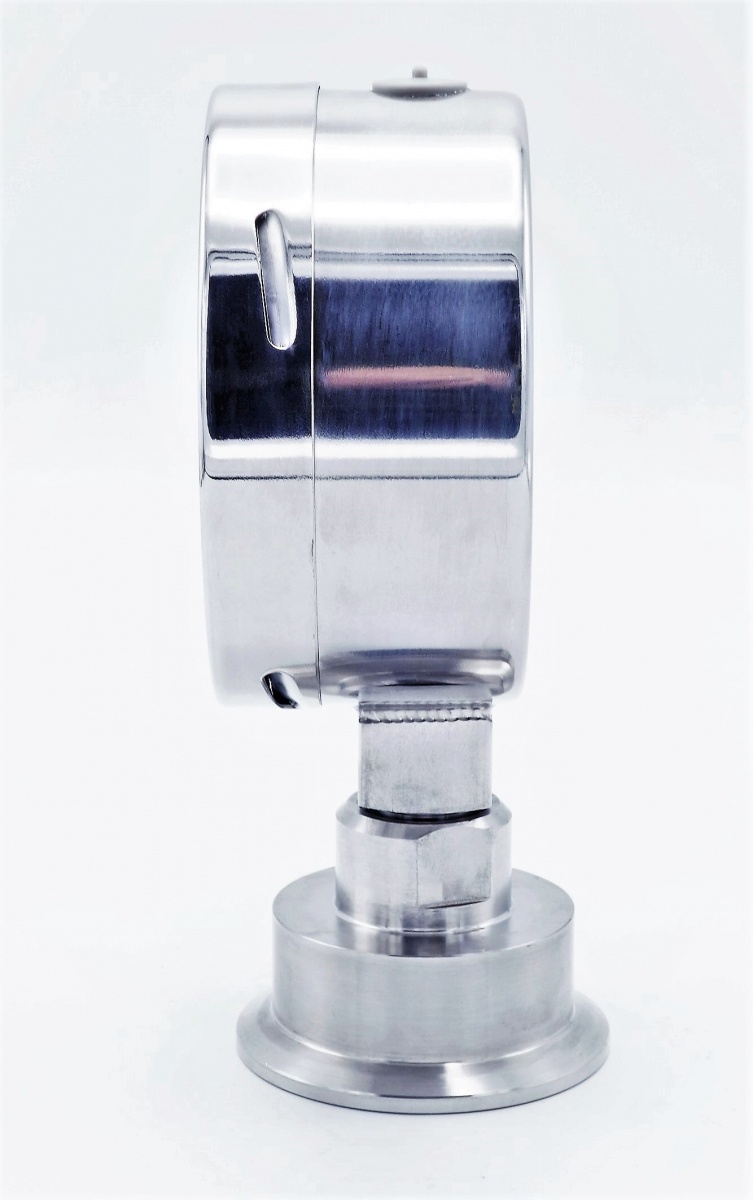

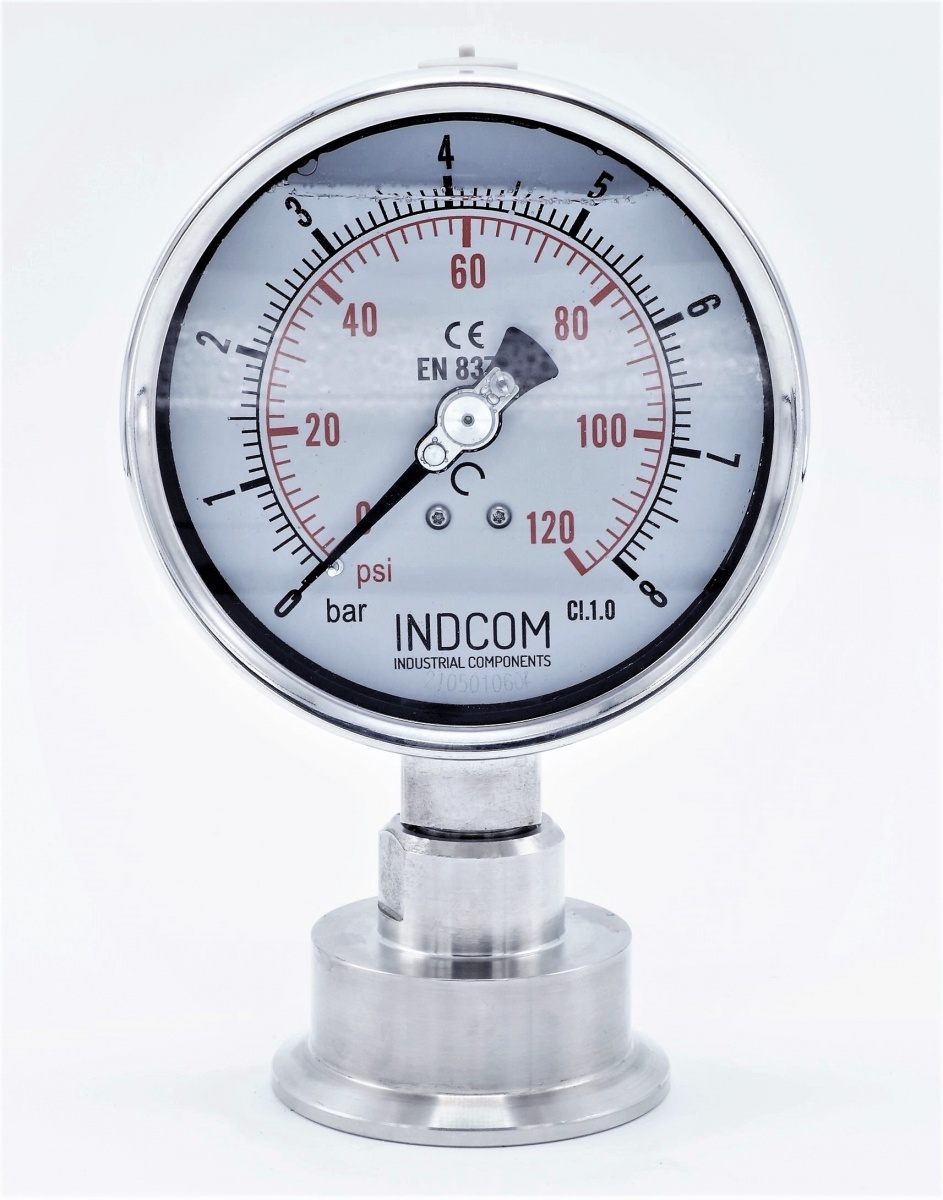

Stainless Steel Pressure Gauge, Dial 100 mm, Sanitary Diaphragm CLAMP DIN 32676 (64 mm)
0-2,5 bar

Pressure Gauge Features:

• The pressure gauge is made of stainless steel, with the housing material being AISI 304 and the thread material AISI 316.
• The sensing element is a stainless steel Bourdon tube.
• The connector is TIG-welded.
• Standard delivery includes a glycerin filling (provides protection against operational shocks).
• Dial cover material: glass.
• Bottom connection, CLAMP DIN DIN32676, DN50 (flange diameter 64 mm).
• Dial size: 100 mm.
• Complies with EN 837–1, accuracy class CL 1.0.
• Diaphragm seal material: AISI 316L (1.4404).
• CLAMP sanitary diaphragm body material: AISI 304 (1.4301).
• Operating temperature: –45°C to +150°C.
• The diaphragm is designed for a pressure range of 0–60 bar.
• Filling liquid of the sanitary diaphragm: almond oil
• Designed for long-term durability and extreme operating conditions.
• Intended for the food and beverage industry, and anywhere thorough sanitation and cleaning are required.
• Pressure gauges can also be used in environments with vibrations or pulsating pressures.

The connection is made using a CLAMP fitting and a silicone gasket with the corresponding clamp counterpart.

Engineering, refrigeration, air conditioning, brewing, food and beverage industry, winemaking, cold storage, water management applications, chemical industry, etc.
